Super quiet, maintenance-free and reliable

ePropulsion Pod Drives are direct-drive, and maintenance-free electric motors for sailboats and small watercrafts. Their compact design saves space and maximizes your cabin space. Because of their brushless direct drive technology they make almost no noise.

The ePropulsion Pod Drives are available in 3 sizes;

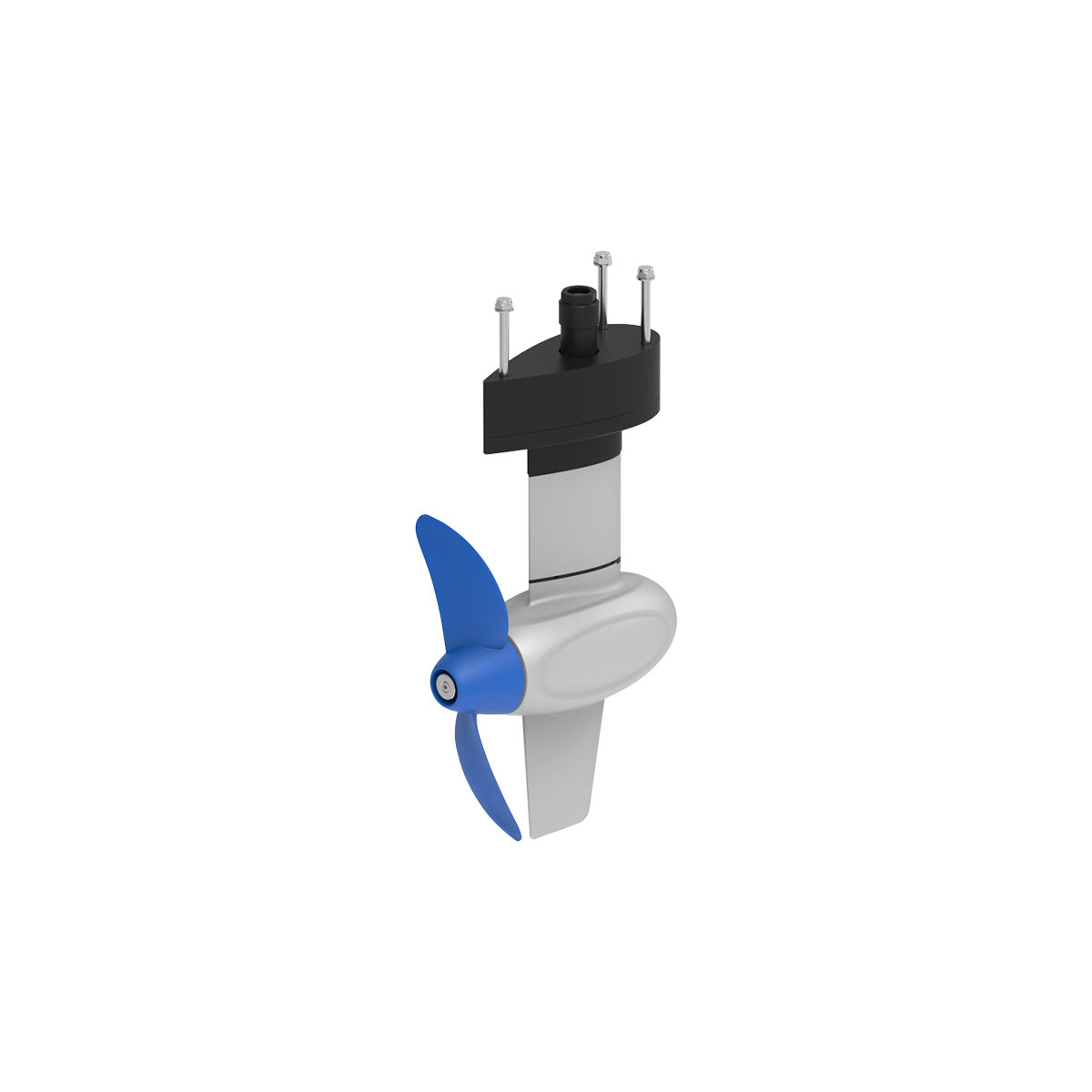

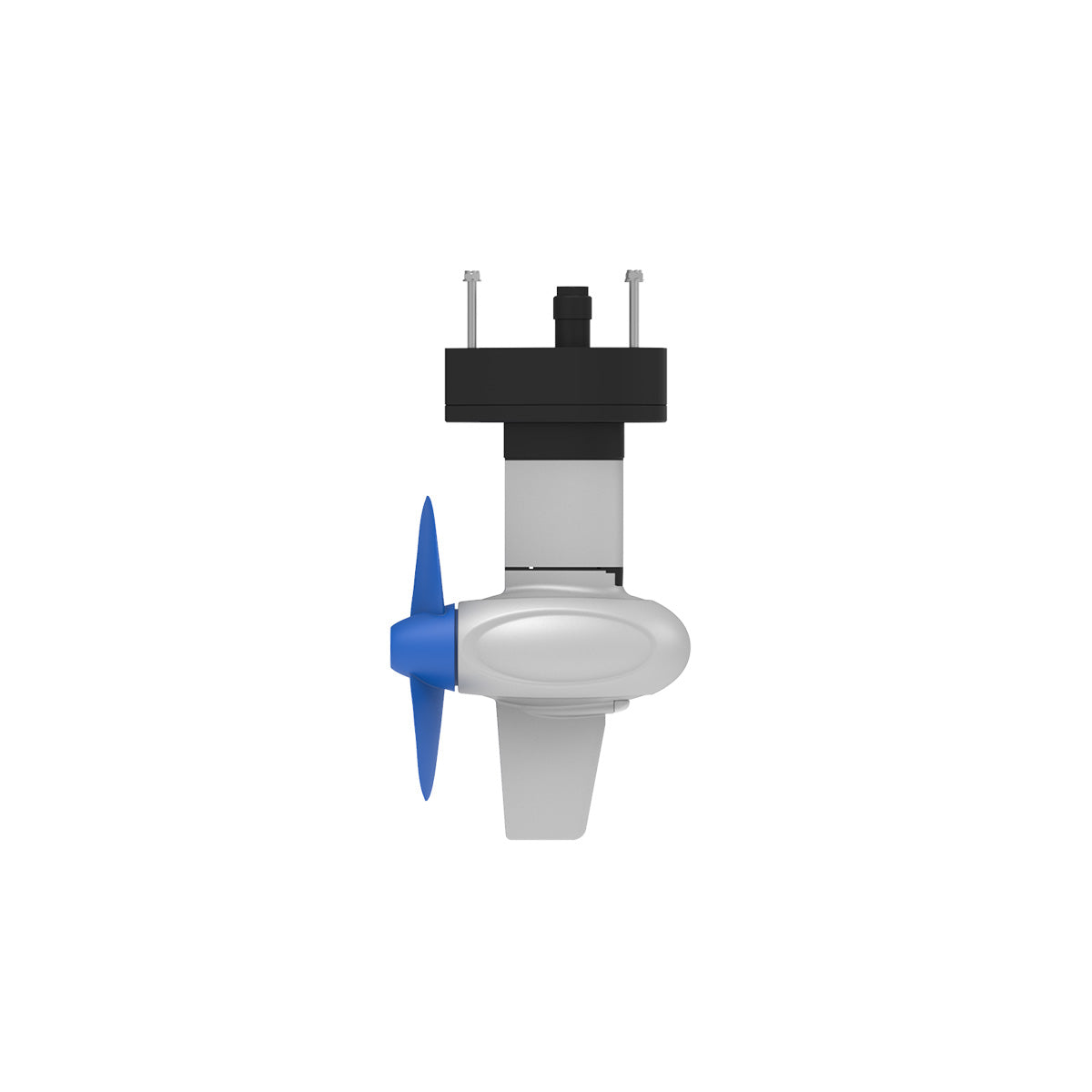

Pod Drive Evo 1.0 is 1kW (equivalent to a 3HP outboard)

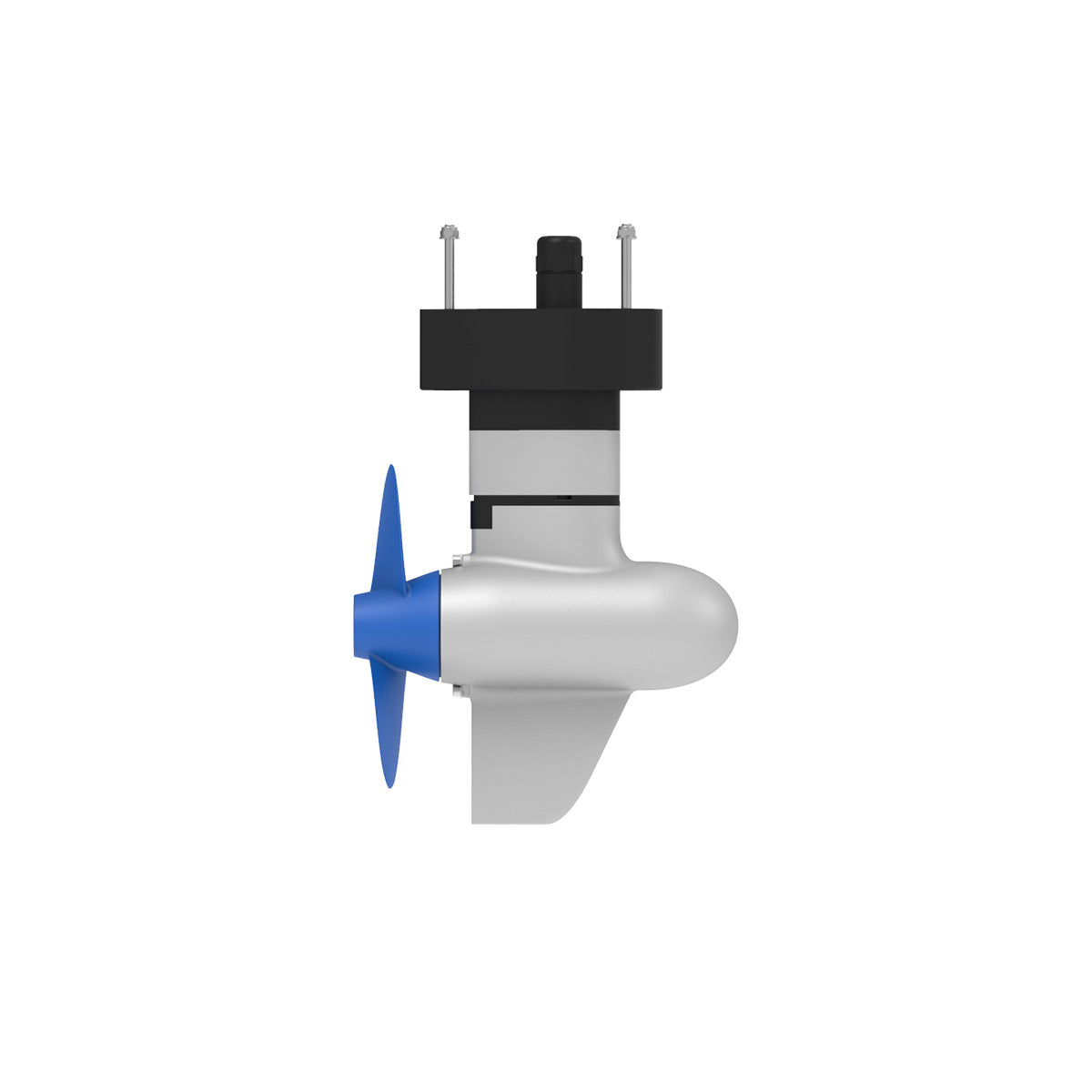

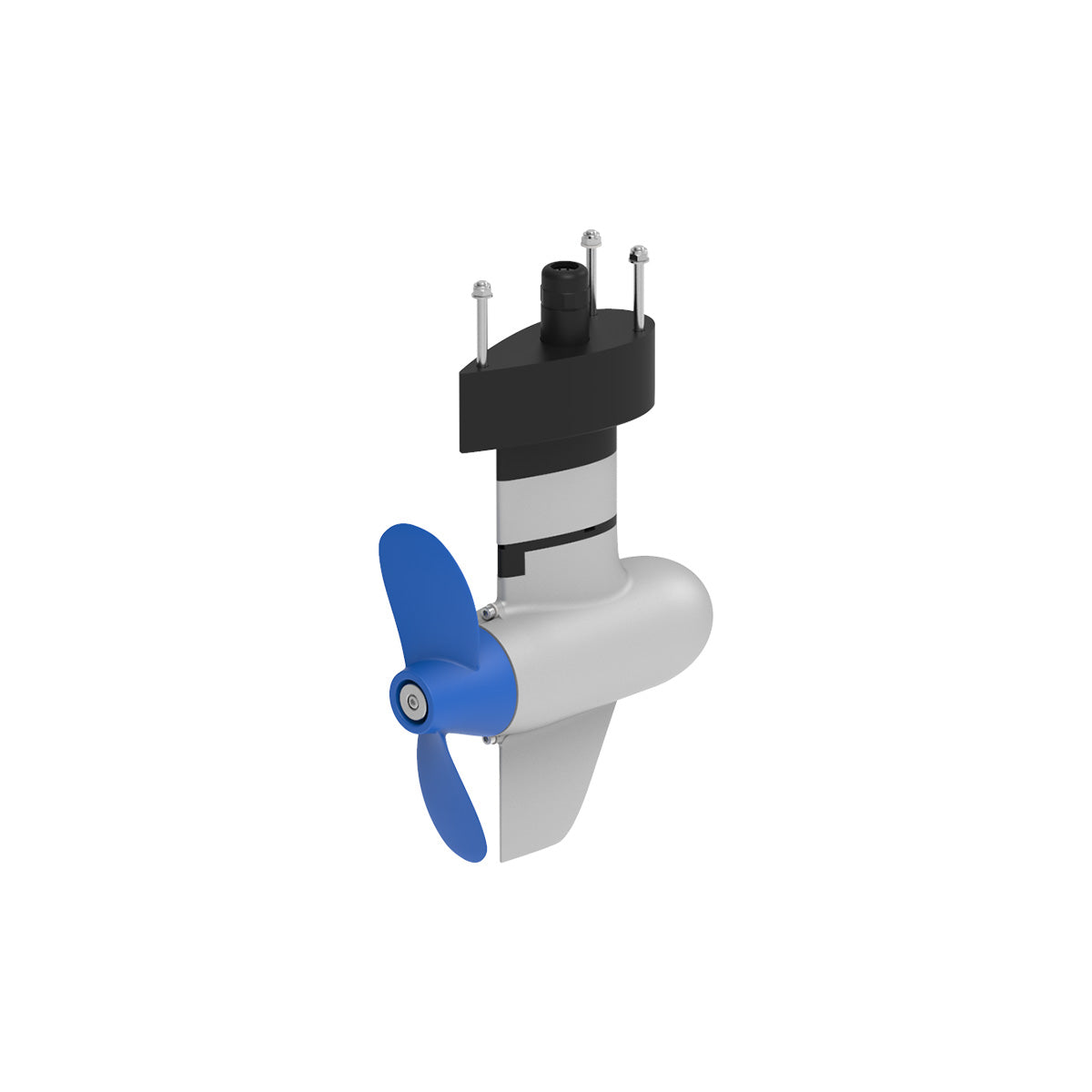

Pod Drive Evo 3.0 is 3kW (equivalent to a 6HP outboard)

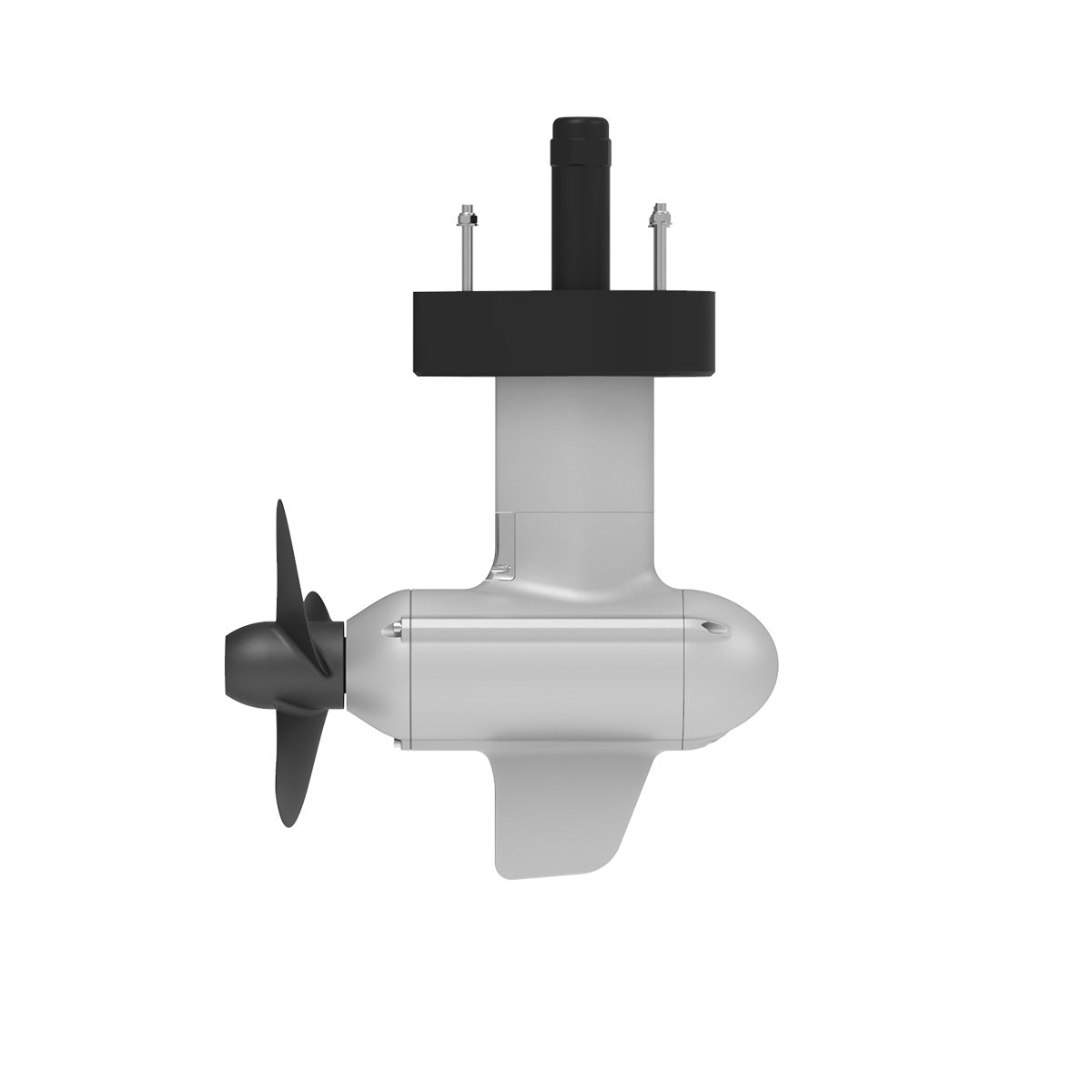

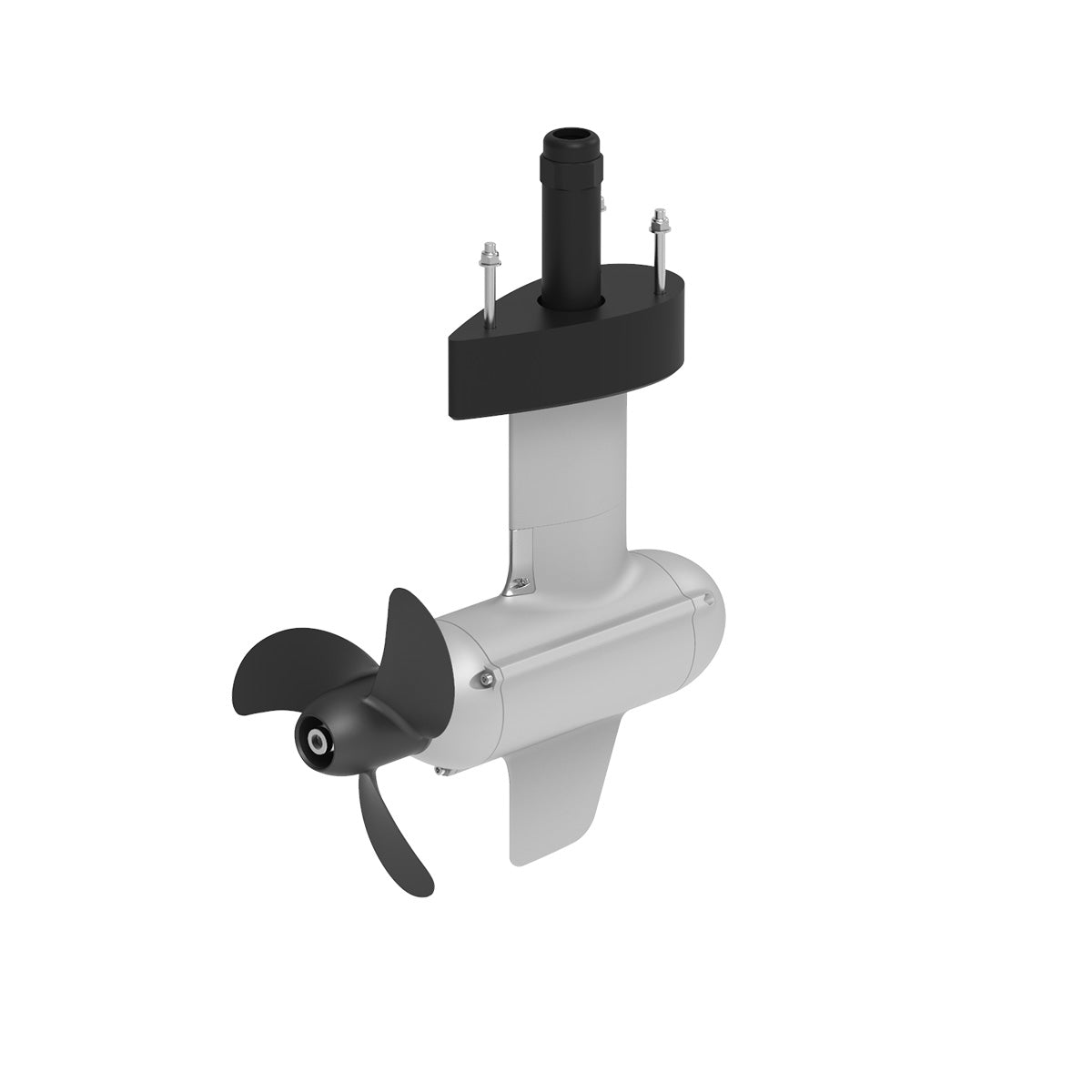

Pod Drive Evo 6.0 is 6kW (equivalent to a 9.9HP outboard)



Built-in Hydrogeneration

Pod Drive Evo allows you to charge your battery/batteries while sailing with the all new and revolutionary hydrogeneration function.

 POD Hydrogeneration Chart



Parallel Connection

With the ESeries batteries you can connect up to 16 batteries in parallel to extend your day on the water even longer!



Eco-friendly, Quiet & Maintenance Free

With ePropulsion Pod Drives there are no exhaust emissions going into the water, no fuel leaks and less overall carbon emissions. The Pod’s direct drive electric motor does not require any maintenance as there are very few moving parts. Because of this the Pod is super quiet as well, peaking at 60dB which is as loud as a normal conversation.



Three controller options

There are three controller options to suit your specific need:

Evo Top Mount Control

Evo Side Mount Control

Evo Top Mount Dual Control





Included with Motor

Driver module, main switch cable, communication cable (5m), wrench set, warranty card, user manual, fixing guide, invitation card, and quality certificate.







Specs


Pod Drive 1.0 Evo Pod Drive 3.0 Evo Pod Drive 6.0 Evo
Input Power
1 kW
3 kW
6 kW
Equivalent Power 3 HP
6 HP
9.9 HP
Input Voltage
39 V - 60 V
39 V - 60 V 39 V - 60 V
Recommended Battery
ePropulsion E-Series Battery
ePropulsion E-Series Battery ePropulsion E-Series Battery
Weight
6.2 kgs / 13.6 lbs
15.3 kg / 33.7 lbs
31 kgs / 70.4 lbs
Propeller 11″ × 5.8″ 2-blade composite propeller 10.2″ × 6.7″ 2-blade composite propeller 12.6″ × 8.7″ 3-blade aluminum propeller
Hydrogeneration YES
YES
YES
Motor Brushless DC motor Brushless DC motor Brushless DC motor
Direct Drive YES YES YES
Maintenance-Free YES YES YES


Warranty*
2 years, basic motor
(Non-commercial use only)

For more information on the Navy 3.0 Evo line of electric outboard motors please visit the ePropulsion website
