  • Description

12V 460Ah Epoch V2-T Elite Series Battery - 5.9kWh Heated & Bluetooth & Victron Comms LiFePO4

  • Features

    • Integrated 400A EATON Class T Fuse enhances safety, reduces wiring complexity, and ensures compliance with ABYC standards
    • Premium LiFePO4 Chemistry
    • 460Ah Capacity
    • Built-in Smart Battery Management System (BMS)
    • VICTRON communications with distributed charge control via DVCC (plug-and-play setup)
    • IP67 Rated – dustproof and waterproof
    • Internal self-heating for charging below 0°C
    • Bluetooth monitoring via iOS & Android apps
    • Parallel support for up to 16 batteries

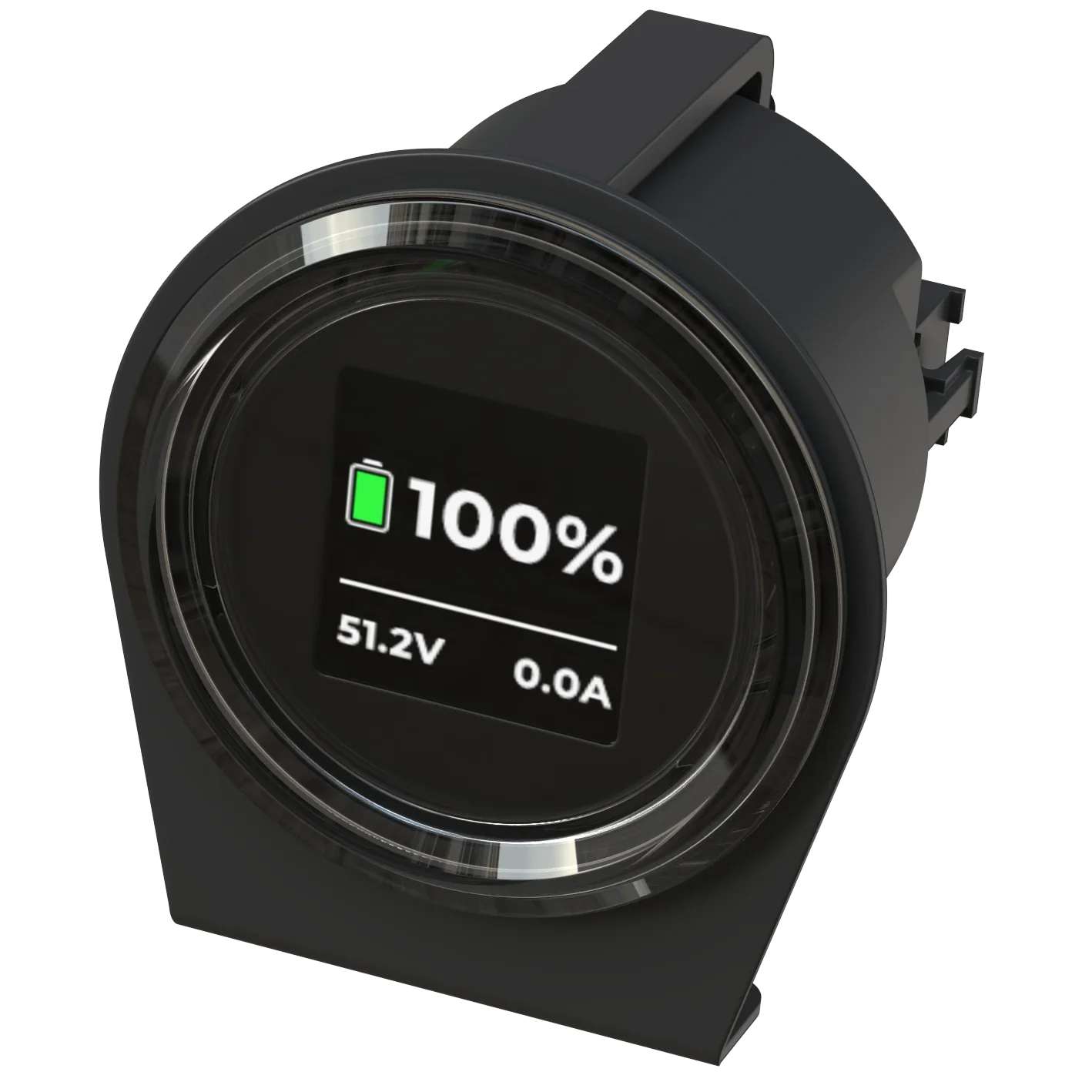

    • External power button & battery gauge included
    • Overcharge & over-discharge protection
    • Over-current & short-circuit protection
    • High & low temperature disconnects
    • UL60691 Certified Internal Fuse
    • UL1642, UL9540A, IEC 62619:2022 Certified Cells
    • UL1973 Certified Pack
    • 4000+ cycle life
    • Maintenance-free operation
    • 11-Year Manufacturer Warranty

    Configuration

    • Cell Configuration: 4S2P
    • Chemistry: LiFePO4

    Current Specifications

    • Capacity: 460Ah
    • Max Continuous Discharge: 230A @ 25°C
    • Max Continuous Charge: 210A @ 25°C
    • Peak Discharge Current: 500A (30 Seconds), 1300A (1 Second)
    • Series / Parallel Configuration:
      • Max (4) in Series
      • Max (16) in Parallel
      • 4S1P or 1S16P

    Voltage Specifications

    • Nominal Voltage: 12.8V
    • Max Charge Voltage: 14.6V
    • Operating Voltage Range: 10.0V – 14.6V

    Temperature Specifications

    • Charge Temperature Range: -30°C to 55°C (with self-heating)
    • Discharge Temperature Range: -20°C to 55°C
    • Storage Temperature: 0°C to 35°C

    Physical Specifications

    • Weight: 97 lbs
    • Length: 20.75"
    • Width: 8.5"
    • Height: 12"

    Certifications

    • UL1973
    • RoHS
    • CE

    Recommended Charging Settings (Non-Victron Systems)

    • Absorption Voltage: 14.2V
    • Absorption Time: 15 minutes per battery
    • Float Voltage: 13.5V
    • Equalization: OFF
    • Temperature Compensation: Disabled

    Victron System Setup

    • Supports Victron DVCC distributed charge control
    • Plug waterproof bung into master blue port
    • Connect RJ45 cable from master black port to slave battery blue port
    • Daisy chain additional batteries up to 16 in parallel
    • Set DIP switches according to manual
    • Connect grey RJ45 plug into Cerbo / Ekrano GX BMS CAN port
    • For Cerbo MK2 systems use VE-CAN1 or VE-CAN2 set to 500 KBPS LV
    • Enable DVCC and set controlling BMS & battery monitor to Epoch
    • Verify installed battery modules and Ah capacity on GX display
    • System will automatically manage charging profile:
      • 14.2V absorption
      • ~15 minutes absorption per battery
      • 13.5V float voltage

    Important Note

    It is recommended to manually program Multiplus, Quattro, and all additional charging sources with the same charging parameters in the event of CAN communication loss.
