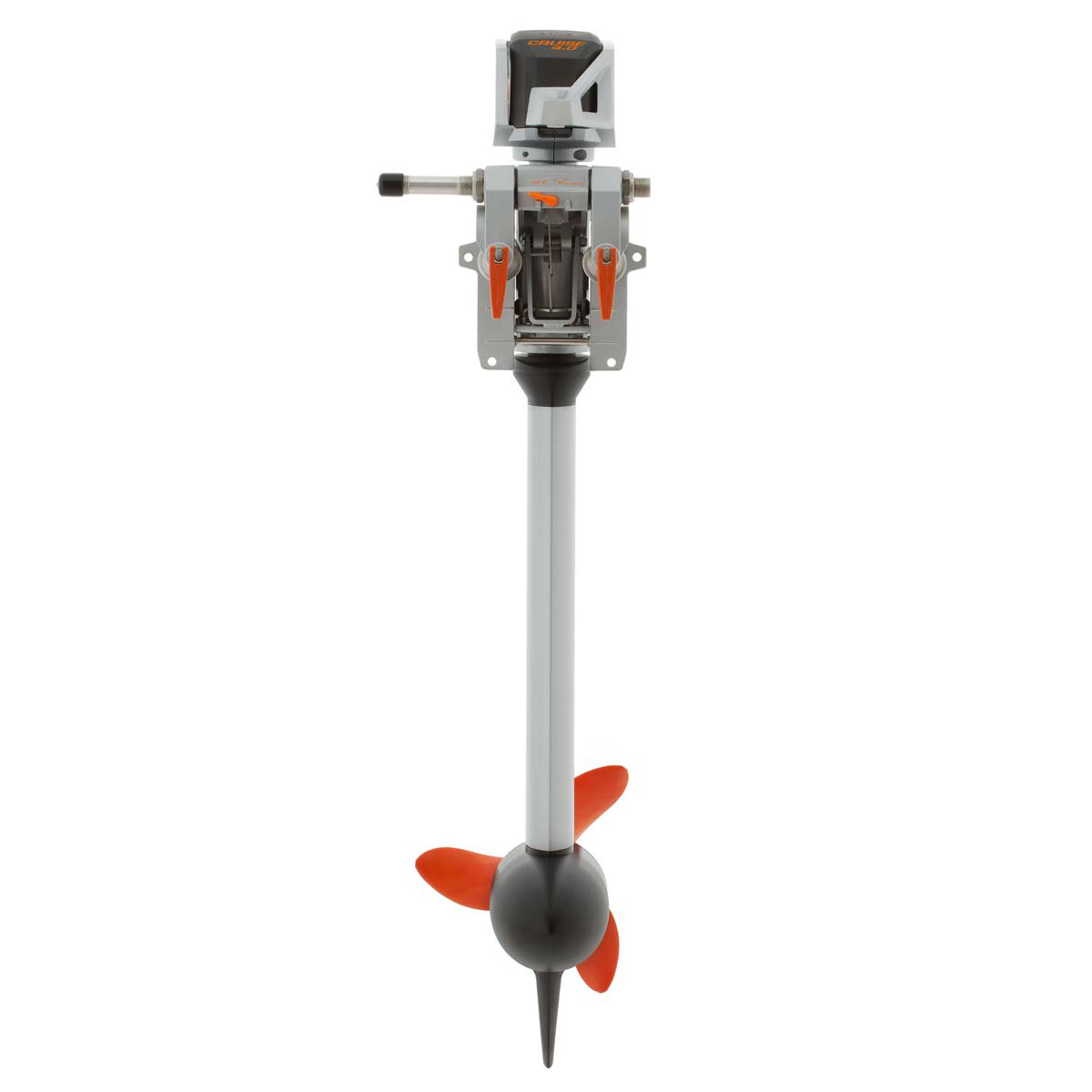

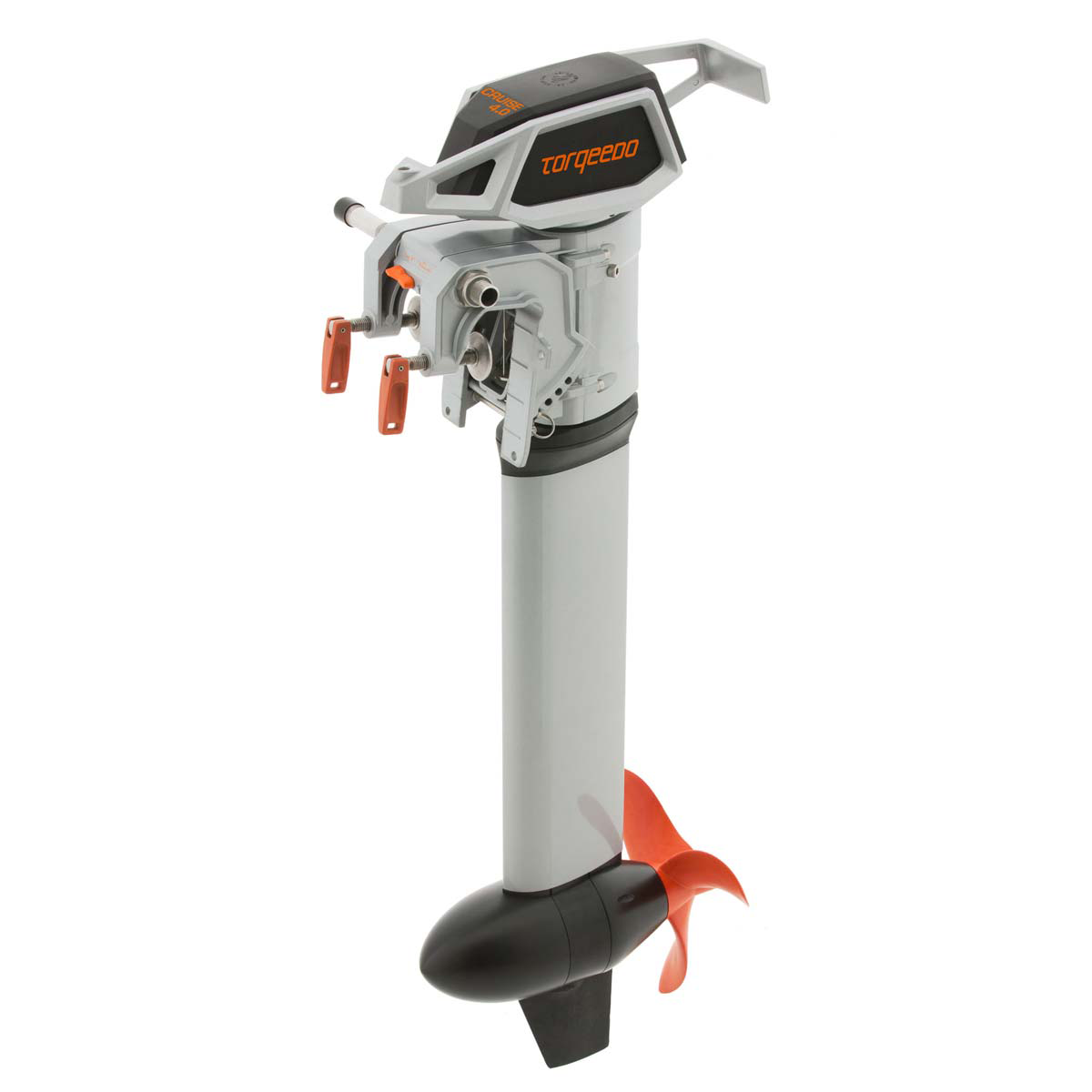

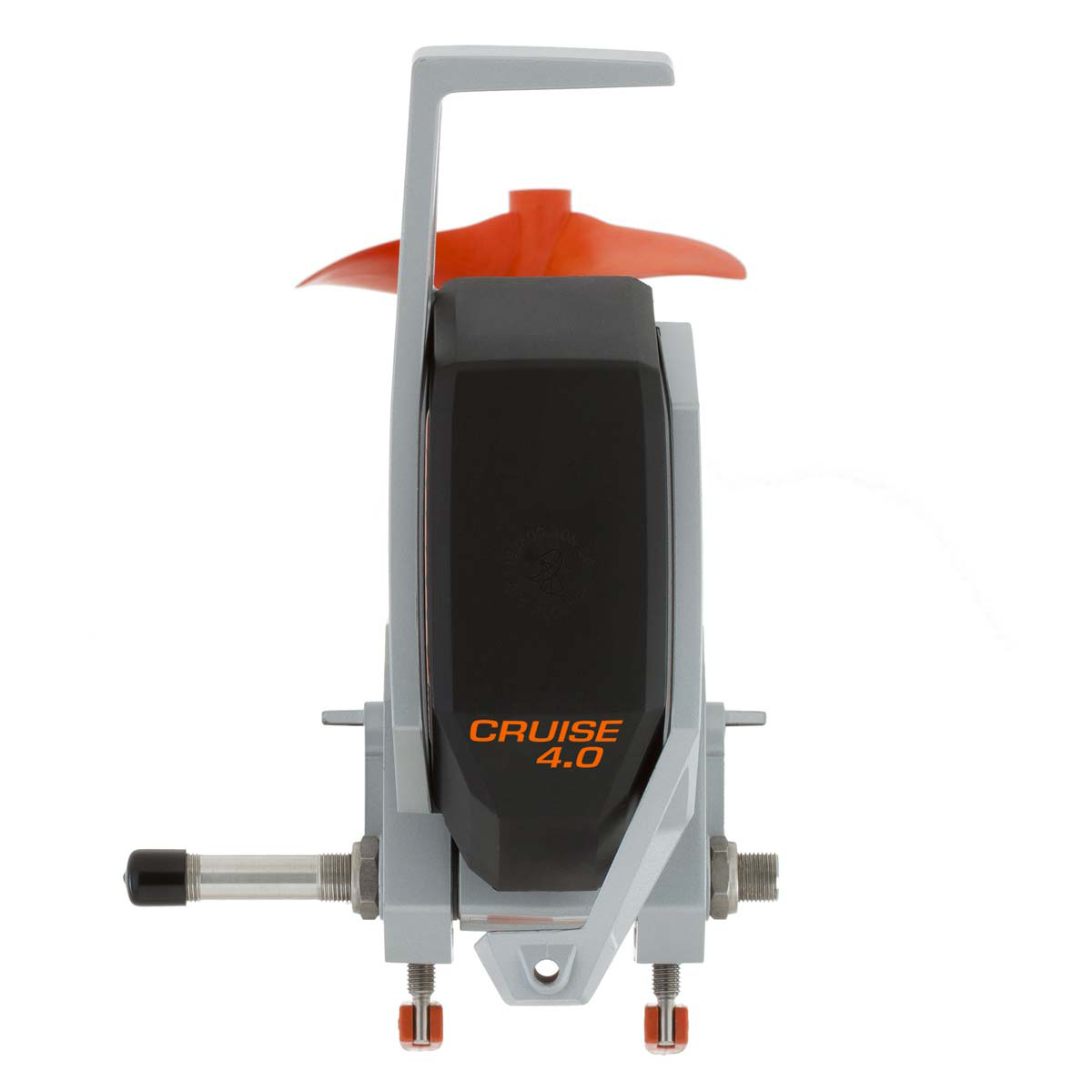

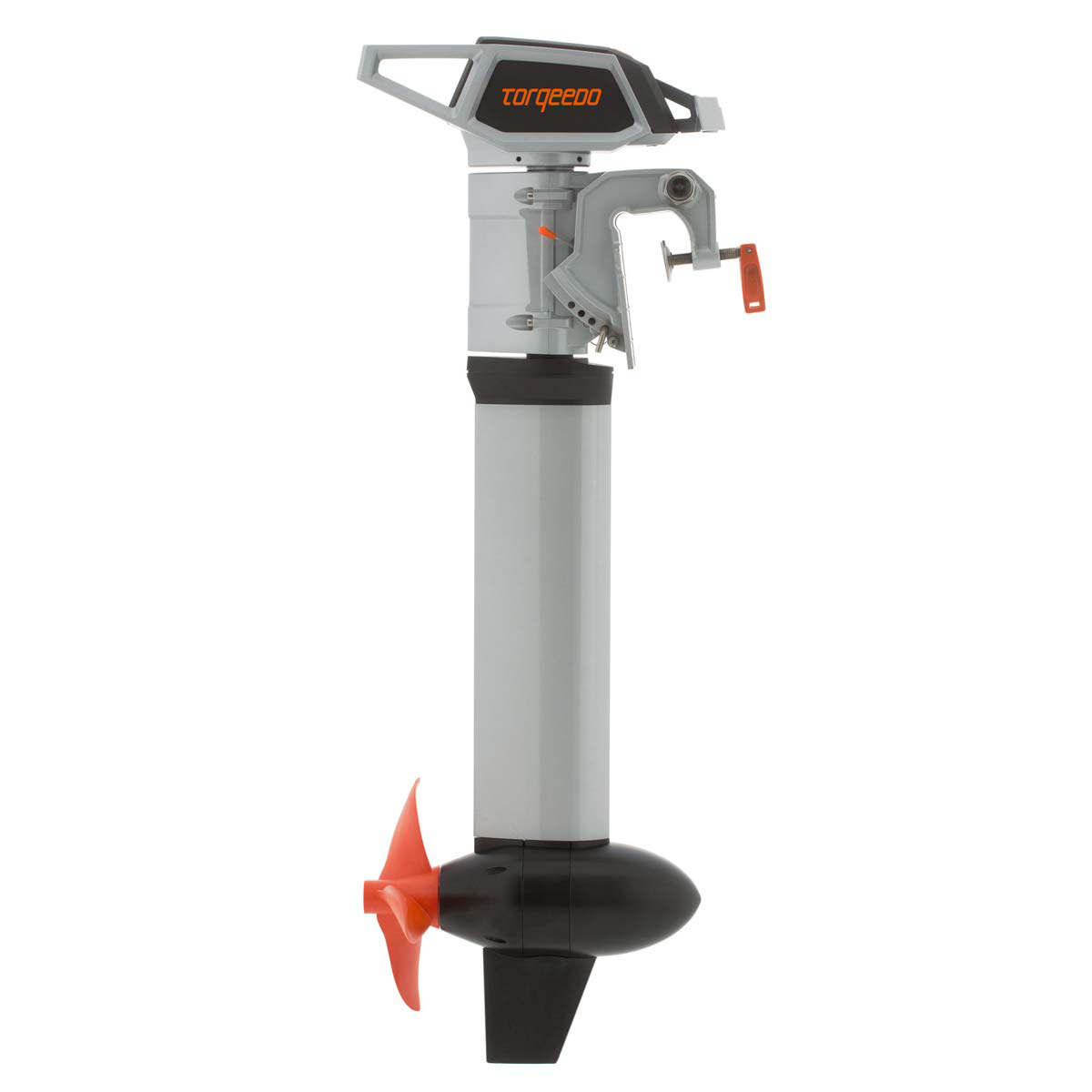

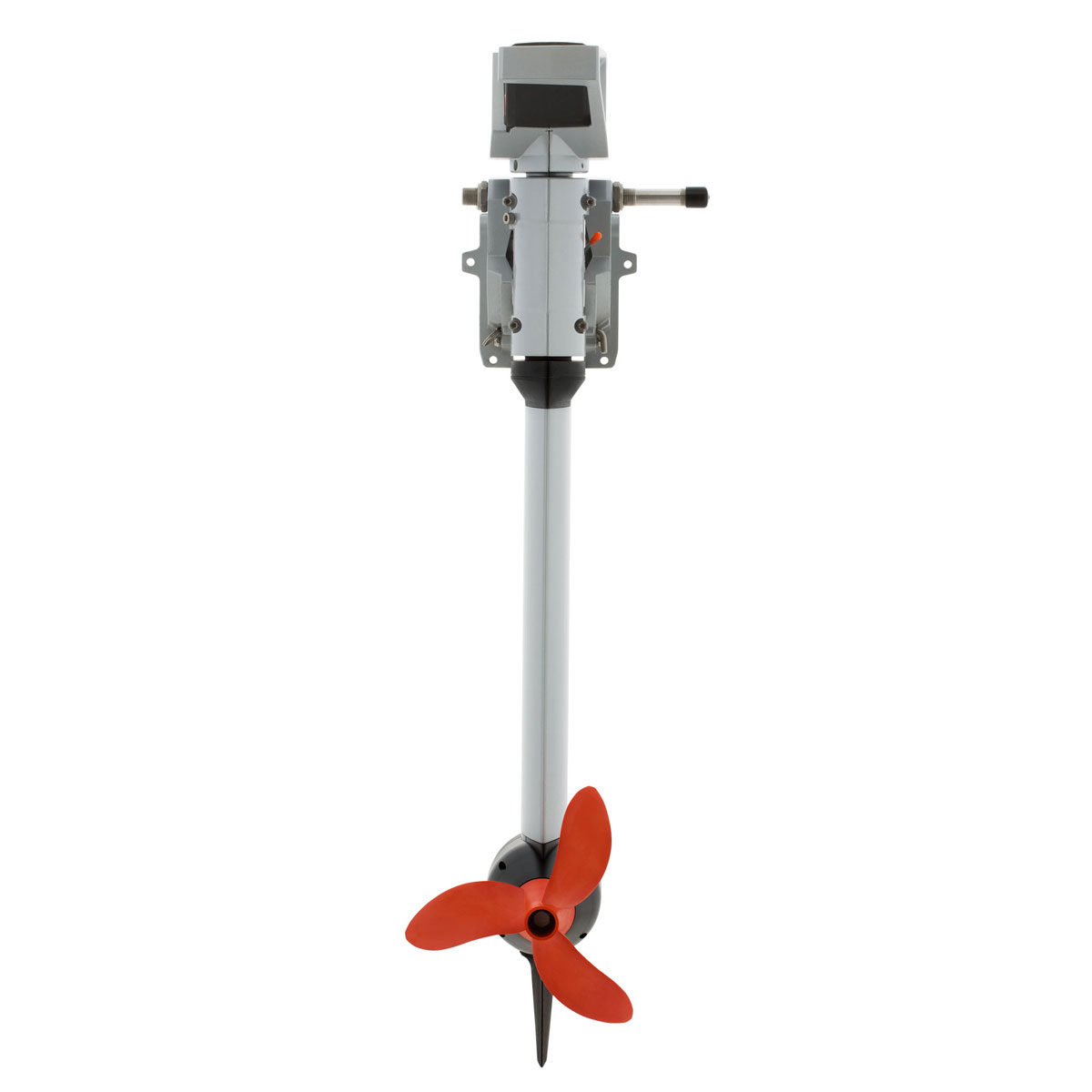

Torqeedo Cruise 4.0 R (with Remote Throttle) Description:
For dinghies and sailboats up to 4 tons
The Cruise 4.0 is the perfect electric motor to replace your 8 HP on your hard dinghy, inflatable, RIB, and sailboats up to 4 tons.
They are rugged, waterproof, commercial grade and ready to take whatever adventure you throw at it.
Use the Cruise 4.0 with power from at least one lithium battery (Power 26-104) or with lead batteries (lead-gel or AGM).
Features
- High-efficiency outboard with 4,000 W input power, equivalent to a 8 HP petrol outboard.
- Remote steering connector option, comes with remote throttle.
- Rugged aluminium pylon with reinforced fin – extra robust even when running aground
- Shaft sealant rings mounted in protected area on the inside of the pylons
- Highest-grade seawater-proof aluminium (AlMgSi1), hard-anodized for long service life, even in the harshest conditions
- Lubricant-free polymer plain bearings protect against damage from fishing lines or debris and provide improved mechanical support for propeller shaft – wear-resistant and maintenance-free.
- Comprehensive galvanic corrosion protection through careful matching of all materials and meticulous isolation of materials with different electrochemical properties.
- Aluminium fin coated in polyurethane foam provides additional protection from impacts
- Everything is waterproof to IP67.
Speed/distance (with 2 x Power 26-104 or Alternative: 4 x 12 V / 200 Ah AGM Batteries)
|
Speed in knots (km/h)* |
Range in sm (km)* |
Running time in hours: |
Slow |
2.7 (5.0) |
29 (54) |
10:45 |
Full throttle |
7.0 (13) |
8 (15) |
01:10 |
* Depends on type of boat, load, propeller and conditions. Speed and range indications do not represent a legal guarantee.
Specifications
|
Cruise 4.0 R |
Input power in watts |
4000 |
Propulsive power in watts |
2240 |
Comparable petrol outboards (propulsive power) |
8 HP |
Comparable petrol outboards (thrust) |
9.9 HP |
Maximum overall efficiency in % |
56 |
Static thrust in lbs* |
189 |
Integrated battery |
- |
Nominal voltage |
48 |
Final charging voltage |
- |
Total weight in kg |
16.1 (S) / 17.0 (L) |
Motor weight without battery in kg |
- |
Weight of integrated battery |
- |
Shaft length in cm |
62.5 (S) / 75.5 (L) |
Standard propeller v = speed in km/h at p = power in watts |
v19/p4000 |
Alternative propeller options |
v30/p4000, v8/p350 |
Maximum propeller speed in rpm |
1300 |
Control |
Remote throttle |
Steering |
Provision to connect to standard remote steering; lockable |
Tilting device |
Manual with grounding protection |
Tilt angle |
61,3° |
Trim device |
Manual, 4-step |
Integrated on-board computer |
Yes |
Stepless forward/reverse drive |
Yes |
