Electric Outboard Kit Momentum M10 (20hp) wtih MB6 Battery
Custom-designed high efficiency prop, made from durable marine grade aluminium. Comes with adjustable resistance throttle with power unlock/reverse safety button and a custom-designed quick release mount interface.
| Specification | Details |
|---|---|
| Model | TECHNICAL M-10 ELECTRIC OUTBOARD MOTOR |
| Max Input Power | 10kW |

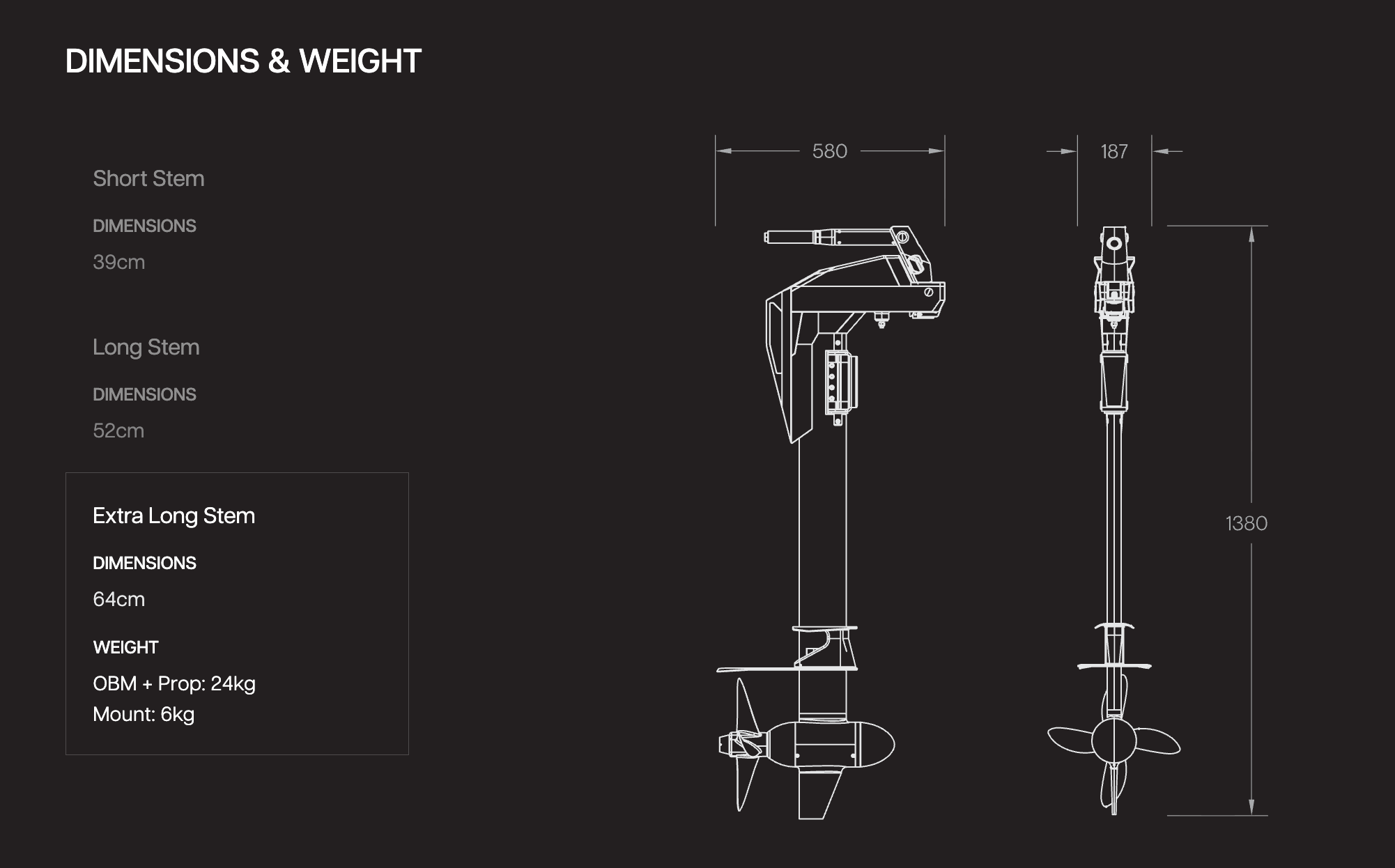

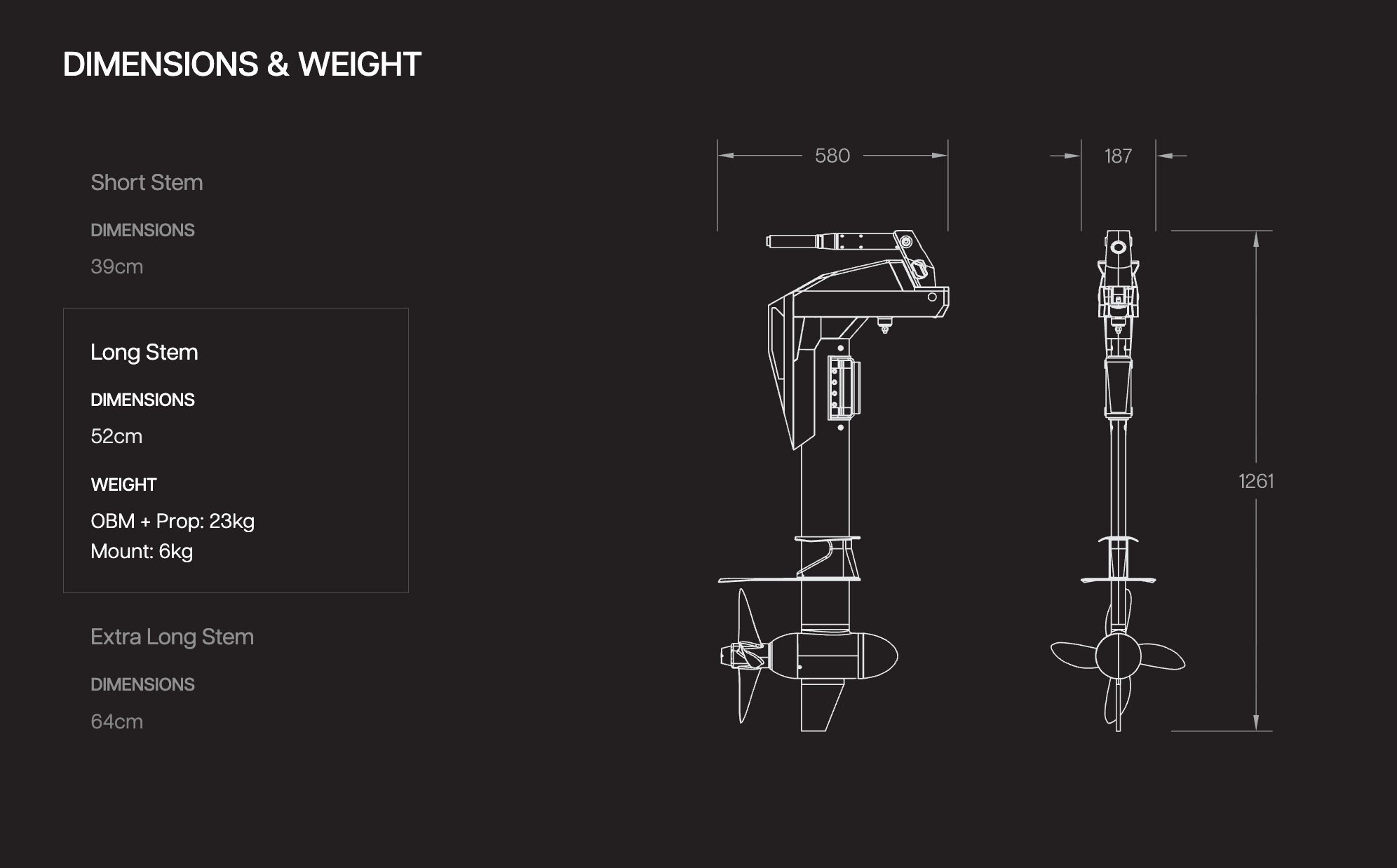

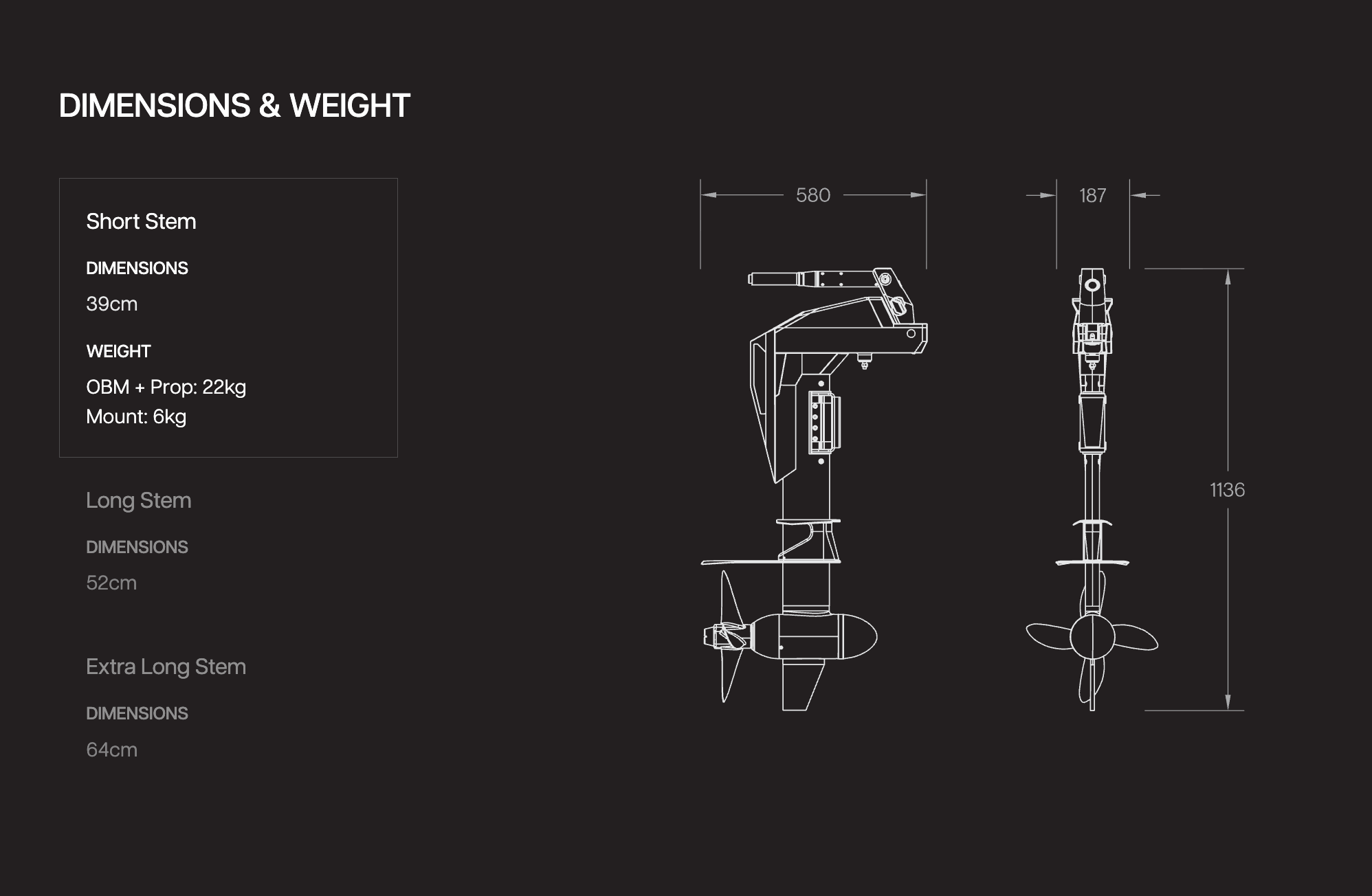

| Shaft Length | 39cm (Short) / 52cm (Long) / 64cm (Extra Long) |
| Prop Diameter | 34cm |
| Number of Blades | 4 |
| Cooling System | 100% External Passive Seawater Cooling |
| Trip Computer | Integrated GPS Power & Range Display |
| Weight | OBM + Prop: 22kg / Mount: 6kg |

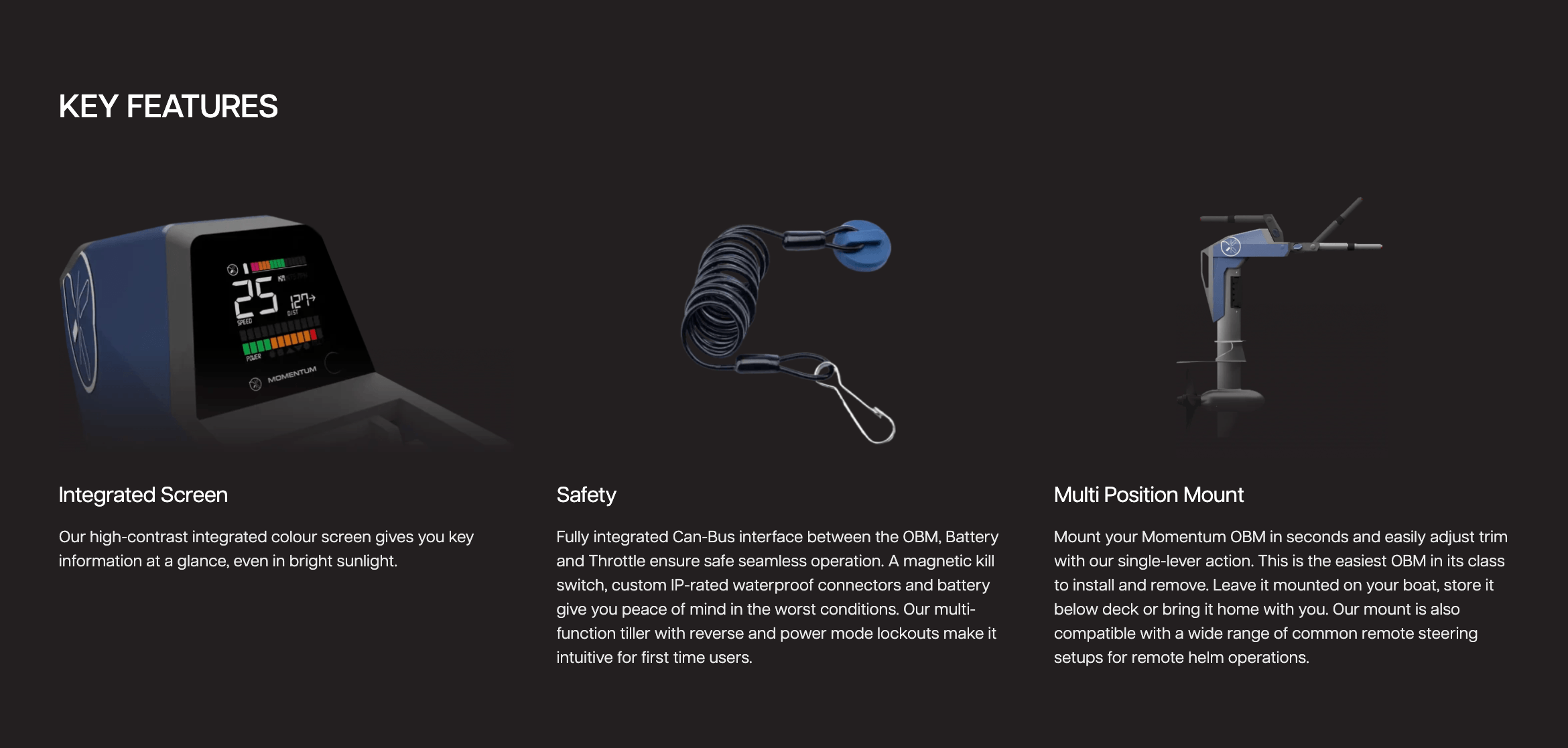

Integrated trip computer with high-contrast color display
Custom-designed single cable power and data connection
Custom-designed high efficiency prop, made from durable marine grade aluminium
Passive cooled fully sealed ESC and motor
Custom-designed quick release mount interface
Adjustable resistance throttle with high-power unlock button
Integrated fold-back tiller
| Speed (KM/H) | Endurance (HRS) | Distance Travelled (KM) |
|---|---|---|
| 4.1 | 68.7 | 281.9 |
| 5.9 | 17.5 | 102.3 |
| 10.3 | 4.6 | 47 |
| 22 | 1.3 | 28.5 |
| 30 | 0.8 | 23.1 |
| Speed (KTS) | Endurance (HRS) | Distance Travelled (NM) |
|---|---|---|
| 2.2 | 68.7 | 152 |
| 3.2 | 17.5 | 55 |
| 5.6 | 4.6 | 25 |
| 11.9 | 1.3 | 15 |
| 16.2 | 0.8 | 12 |
The MB-6 battery fits into a typical fuel locker and packs power to last. The impact-resistant case and CNC aluminium handle make the battery offer robust handling and are waterproof. The proprietary Battery Management System (BMS) has all the built-in safety features to ensure the safety and health of the battery cells. The BMS also communicates with the OBM to ensure that it only provides full power when the kill switch is on, to protect the user and the battery. A simple push button on the battery activates standby mode and displays the battery level, as well as any fault codes that may arise.
| Specification | Details |
|---|---|
| Capacity | 6.4kWh |
| Voltage | 72 Volt |
| Cell Type | Li-ion NMC Prismatic |
| Cycle Life | >1500 Cycles to 80% Capacity |
| Weight | 37kg |
