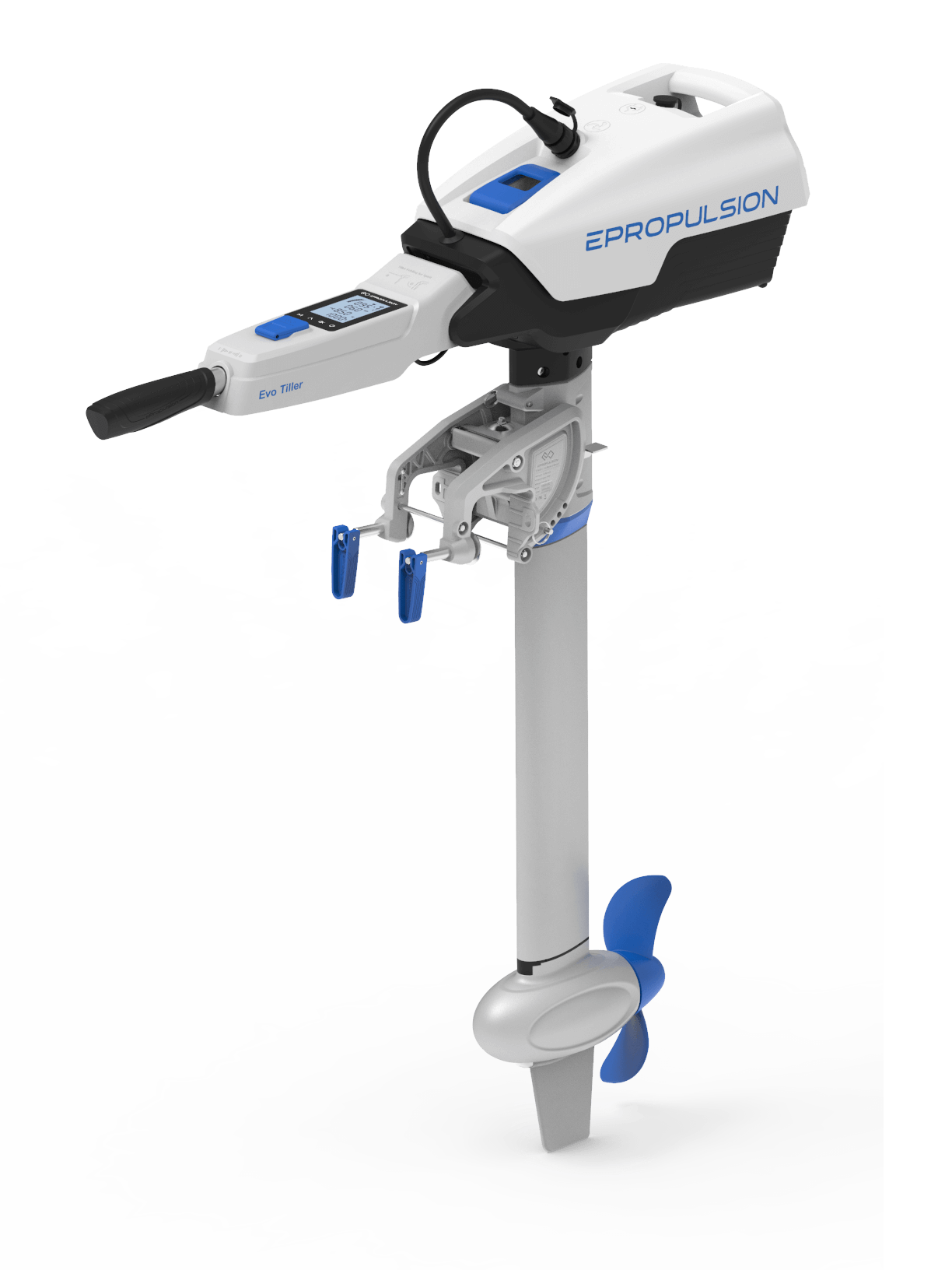

Spirit 1.0 Evo is the first-ever electric outboard that features hydrogeneration. ePropulsion pioneers in the innovation of electric outboard motors and we dedicate ourselves to sustainable sailing.
The hydrogeneration data is based on real tests with the anti-ventilation plate installed.
| Spirit 1.0 Evo | Spirit 1.0 Evo Remote | |
| Power | 1 kW (3HP equivalent) | 1 kW (3HP equivalent) |
| Standard Battery | Spirit Battery Plus, 1276 Wh li-ion polymer | Spirit Battery Plus, 1276 Wh li-ion polymer |
| Input Voltage | 39V – 60V | 39V – 60V |
| Motor Weight* | 11.3 kg / 24.9 lbs | 10.6 kg / 23.4 lbs |
| Battery Weight | 8.7 kg / 19.2 lbs | 8.7 kg / 19.2 lbs |
| Standard Charging | 8.5 Hrs | 8.5 Hrs |
| Fast Charging | 3.5 Hrs | 3.5 Hrs |
| External Battery | Yes, and E-Series Battery recommended | Yes, and E-Series Battery recommended |
| Propeller | 11″ × 5.8″ 2-blade composite propeller | 11″ × 5.8″ 2-blade composite propeller |
| Trim / Tilt Angle | 0°, 7°, 14°, 21° / 85° | 0°, 7°, 14°, 21° / 85° |
| Shaft Length | Short, Long | Short, Long |

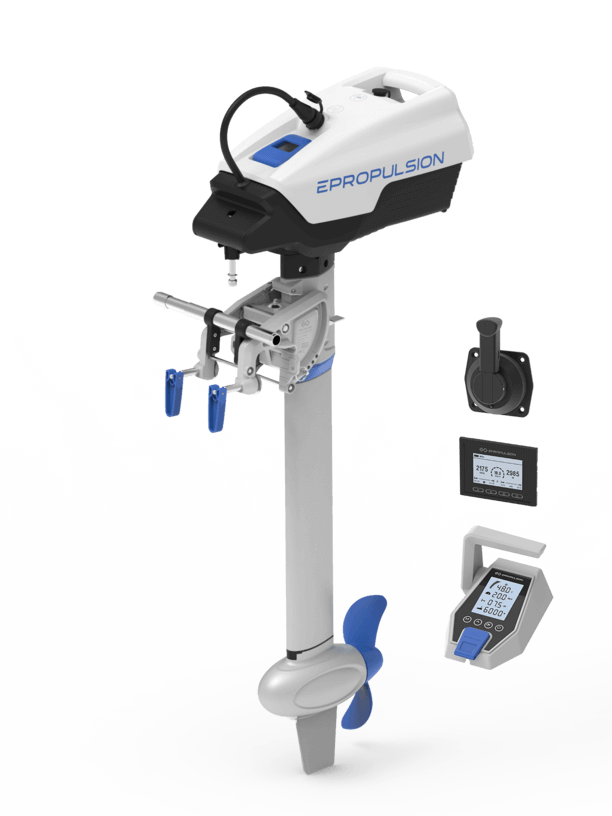

| Control | Evo Tiller | Evo Top Mount Control / Evo Side Mount Control / Evo Dual Remote Control |
| Hydrogeneration | Yes | Yes |
| Motor | Brushless DC motor | Brushless DC motor |
| Direct Drive | Yes | Yes |
| Maintenance-Free | Yes | Yes |
*The weight is measured with the short shaft version.

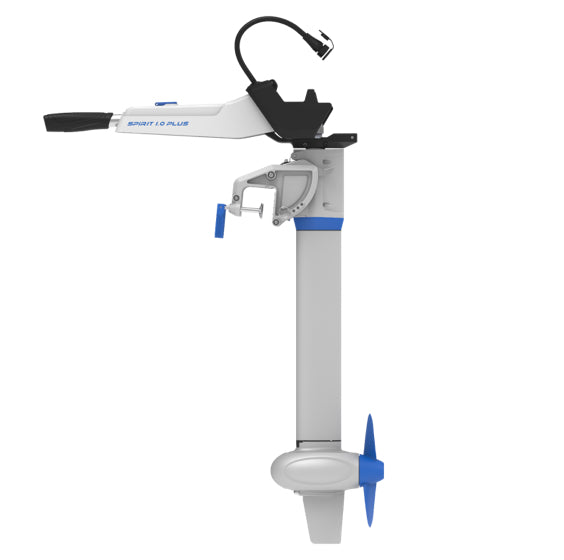

At the core of Spirit 1.0 Evo electric outboard motor, it’s a 1kW BLDC motor, equivalent to 3HP.
| Power (W) | Speed (mph / kph) | Runtime (hh:mm) | Range (mile / km) |
|---|---|---|---|
| 35 | 2.2 / 3.5 | 36:25 | 80 / 129 |
| 65 | 2.7 / 4.3 | 19:35 | 53 / 85.3 |
| 125 | 3.5 / 5.6 | 10:00 | 35 / 56 |
| 250 | 4.4 / 7.1 | 5:00 | 22 / 35.5 |
| 500 | 5.3 / 8.5 | 2:30 | 13.3 / 21.3 |
| 750 | 5.7 / 9.2 | 1:40 | 9.5 / 15.3 |
| 1000 | 6.2 / 10 | 1:15 | 7.8 / 12.5 |
*The performance data is based on a 12-foot aluminum boat with one person and one Spirit battery Plus in calm lake water. The actual speed, range and running time may vary because of different boats, load, weather, etc.
With one charge, you can go 22 miles at 4.5 mph, or go fishing all day long at trolling speed.

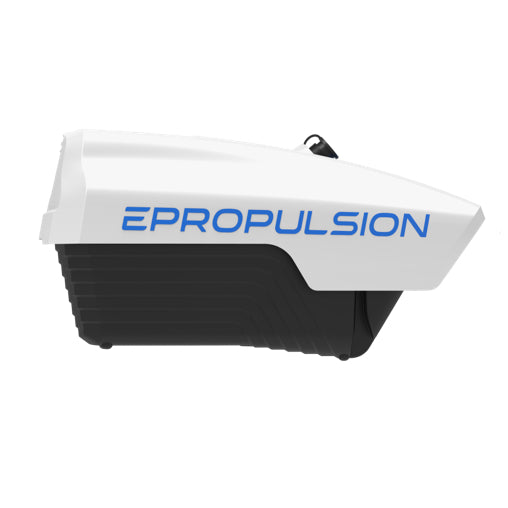

BatteryThe integrated rechargeable battery is lightweight, only 19 lbs or 8.7 kg, and robust for tough conditions.
|

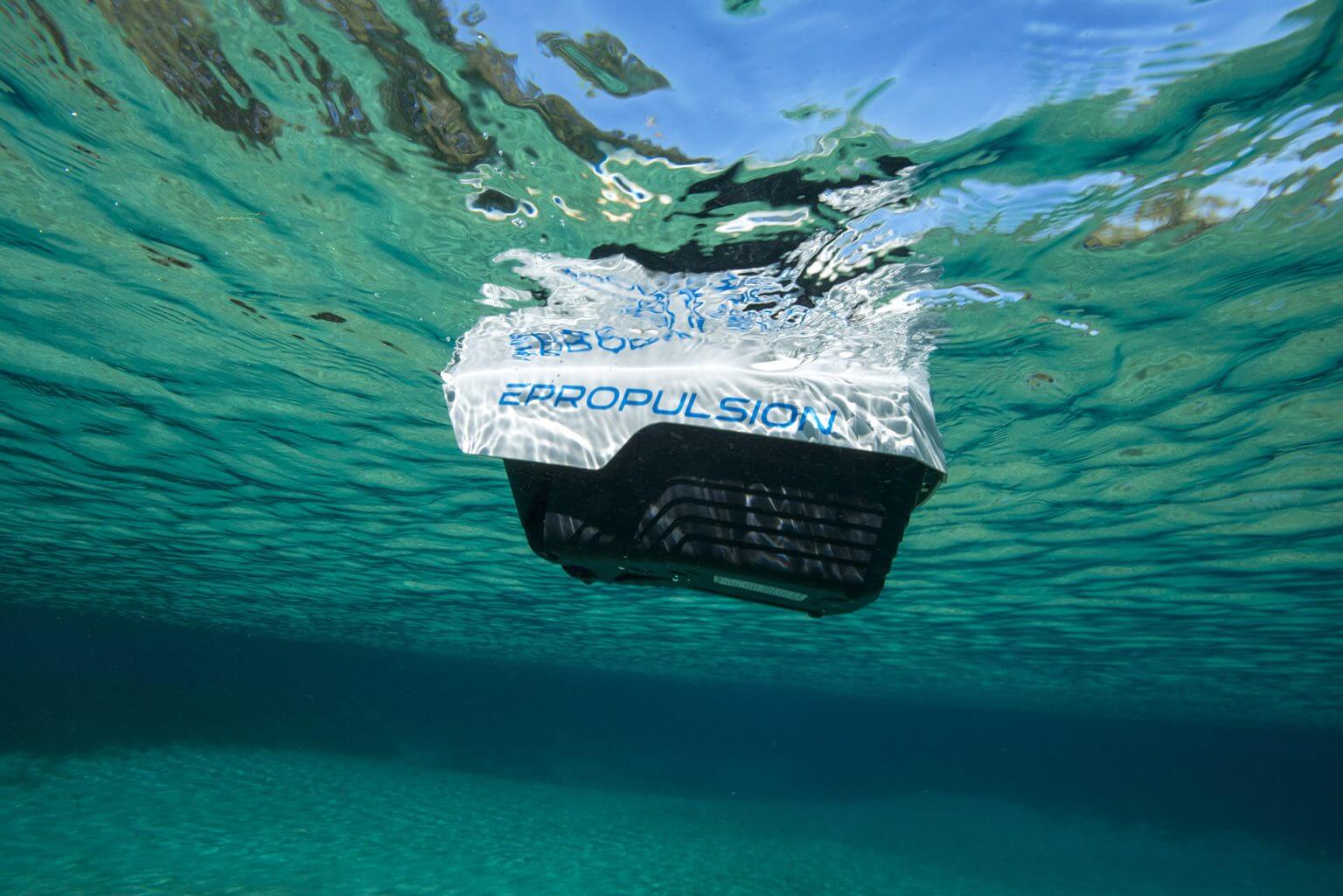

Positive BuoyancyNever worry the battery drops into the water.
|
1276Wh CapacityHigh energy density in a compact size to build large battery capacity.
|

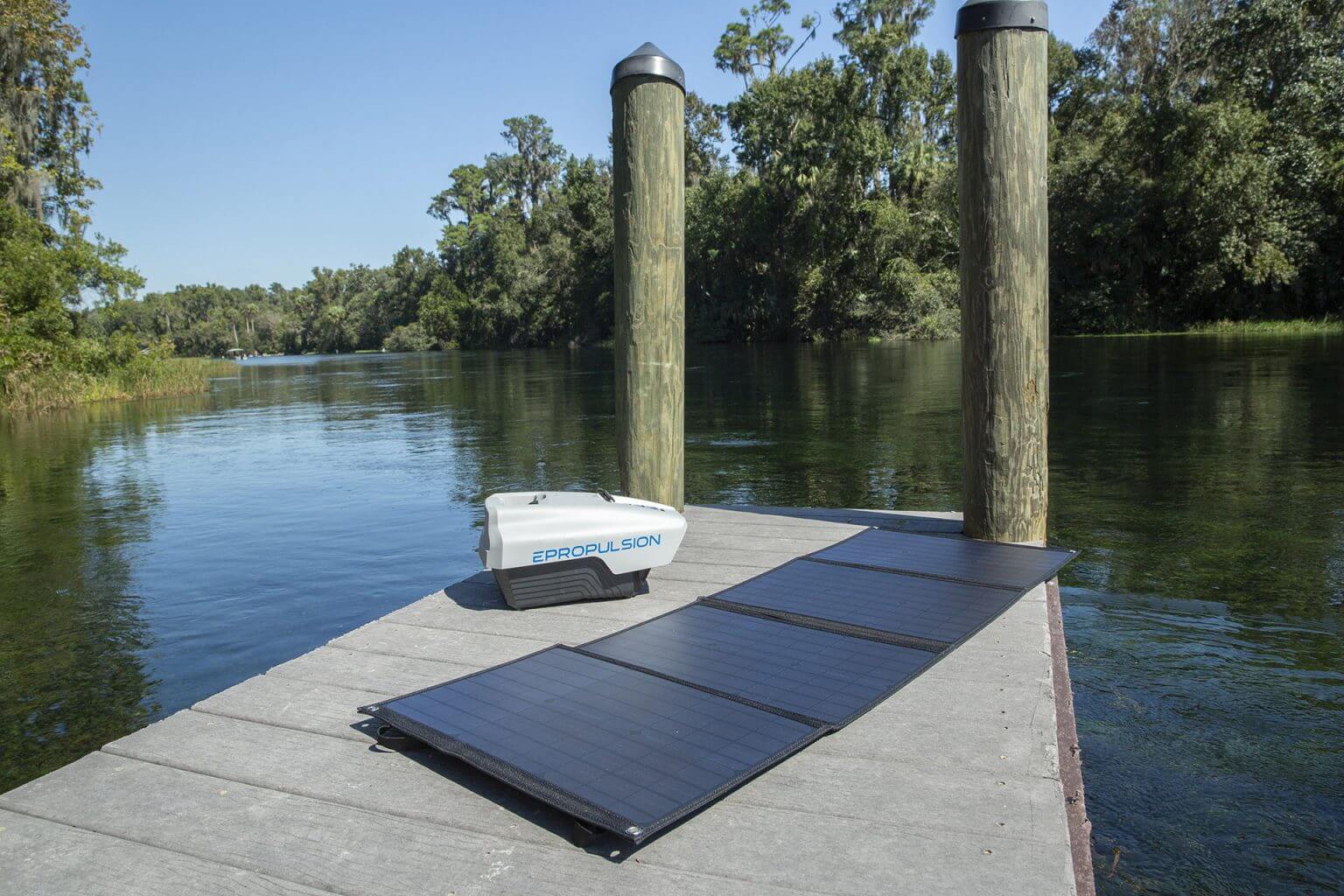

180W Solar ChargingDual power ports allow solar charging when discharging.
|
E-Series BatteryExtend the runtime to an entire day by replacing the integrated Spirit battery. |

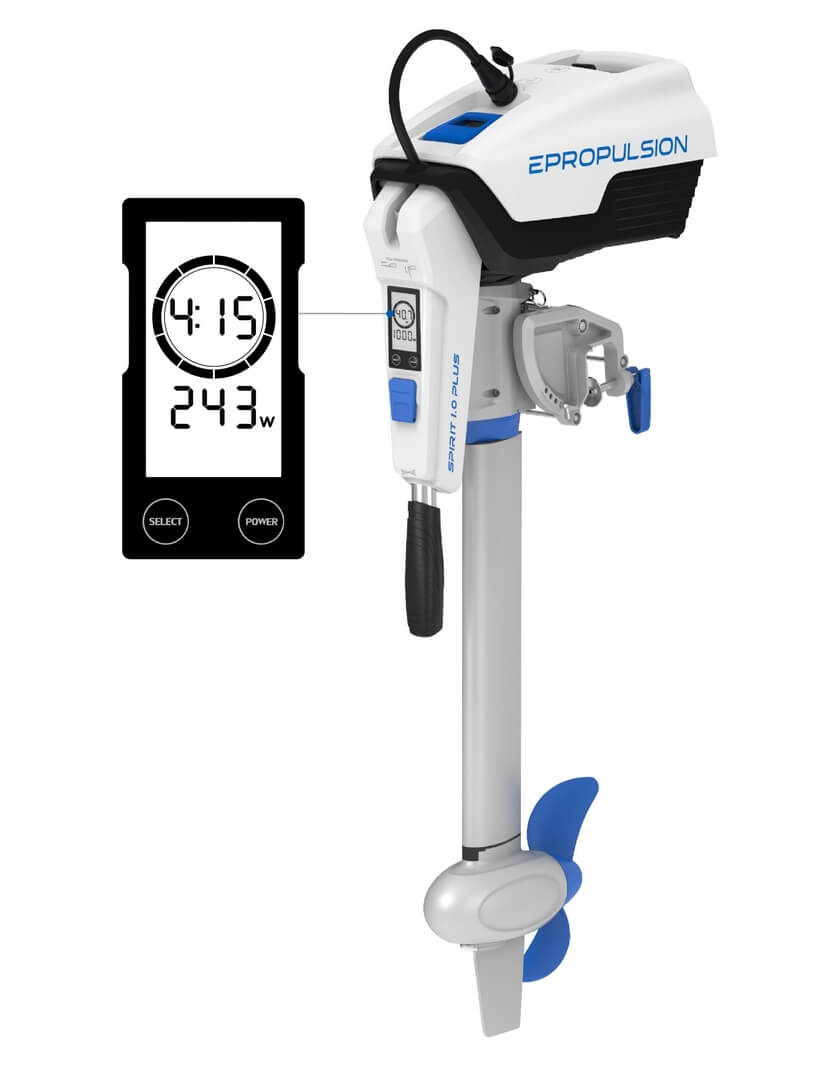

You have access to real-time power, remaining runtime, battery level, operating voltage, etc.
Press one button and you’re ready to go. No more tiring pull cord start.

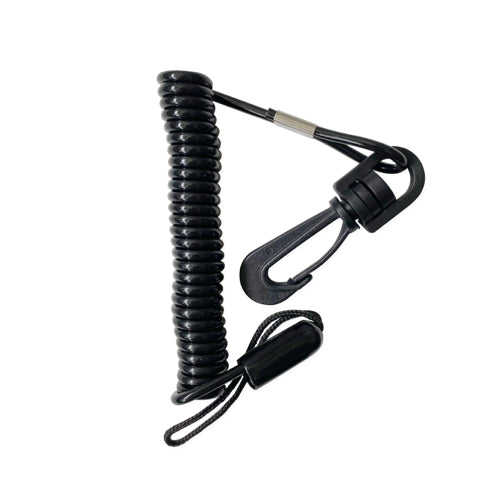

Stop the motor in an emergency and keep you safe.
The throttle hand feel is clear, smooth and enjoyable.
With a smaller full throttle power, it’s safer for kids and rental boat
Swap propulsion between turning throttle clockwise and anticlockwise
