A decade of evolution has led to its fourth generation, ePropulsion expands the Spirit range to 2kW with the introduction of the new Spirit 2, a powerful battery-integrated electric outboard. This upgraded model delivers enhanced power while maintaining a similar compact size.
Featuring a 1.5kWh battery, it revolutionizes the experience for dinghies and day cruisers, providing silent, eco-friendly power at just 20.6 kg*. Its hydrogeneration function allows the battery to recharge while under sail, maximizing battery value and optimizing space for effortless adventures.
*Combined weight of motor and battery, excluding transom bracket.
Weight varies based on shaft length - Extra Short: 20.6kg, Short: 20.8kg, Long: 21kg.
Day Cruisers
Hydrogeneration recharges the battery with an updated hydrodynamic design while sailing, extending range sustainably. Its 2 kW output power is ideal for larger boats like the J/80, with a 3 kW boost for enhanced upstream performance. The integrated steering lock secures the motor for reliable control when using the yachts rudder.
Anglers

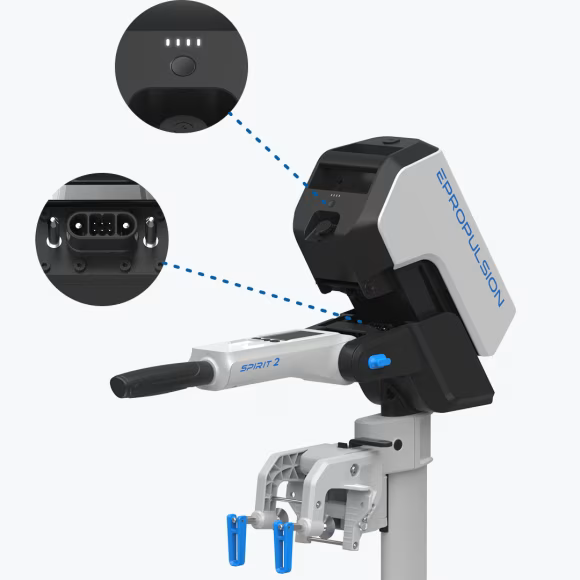

Experience silent fishing adventures with the Spirit 2’s 2 kW propulsion system. Weighing just 21.2 kg, its portable design and quick-connect 1539Wh battery make transport a breeze. The Type-C power station keeps fish finders and lights powered, perfect for extended trips.
Tender Users

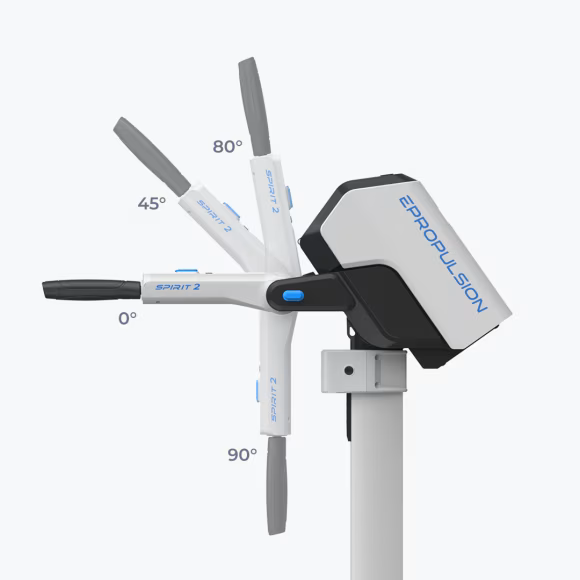

Enjoy all-day cruising with the Spirit 2’s 1539Wh battery, providing an impressive range. The foldable tiller features four locking positions for easy and comfortable steering. Plus, the Type-C power station powers devices, making it perfect for picnic outings on day boats.
Powerful Performance
High Power
The 2 kW battery-integrated electric outboard includes a 3 kW sport mode for enhanced performance. Its updated hydrodynamic design minimizes propeller vibration for a smoother ride.
Expanded Battery Capacity
With a capacity of 1539Wh, the Spirit 2 enables extended operation for longer journeys, perfect for your adventures.
Top Speed and Efficiency
Streamlined propeller design with a 240mm diameter optimized for hydrodynamics, rotating at 2000 RPM.
Portable Power Station
Equipped with a Type-C port for charging devices, the Spirit 2 acts as a portable power station. It can charge your mobile device up to 100 times without the need for a wall plug, making it perfect for extended adventures.
Hydrogeneration
Hydrogeneration operates effectively between 3 knots and 16 knots, generating approximately 380 W of power at 10 knots, up to 1.5kW at 16 knots.
Performance
| Power (W) |
Speed (knots/mph/kph) |
Runtime** (hh:mm) |
Range (nm/mi/km) |
| 500 |
4.0 / 4.6 / 7.4 |
3:00 |
11.3 / 13 / 21 |
| 1000 |
5.2 / 6.0 / 9.6 |
1:48 |
8.3 / 9.6 / 15.4 |
| 2000 |
9.5 / 10.9 / 17.5 |
0:54 |
7 / 8.1 / 13 |
| 3000 Sport Mode *** |
11.3 / 13.0 / 21.0 |
|
|
** This performance data is based on an 11.5-foot aluminum boat weighing 65 kg, with one person and one Spirit battery in calm lake water. Actual speed, range, and running time may vary due to different boat types, loads, weather conditions, and other factors. Sport Mode can last up to 1 minute with a minimum battery state of charge (SOC) of 20%, and the temperature must be within safe limits.
*** The runtime is measured from 100% to 5% SoC. Below 5% SoC, the power will be limited to a maximum of 50 W, enabling the Spirit 2 to continue operating at 50 W for for an extended period.
Specifications
|
Spirit 2 |
| Nominal Power |
2 kW |
| Maximum Power (in Sport Mode) |
3 kW |
| Battery Capacity |
1539 Wh |

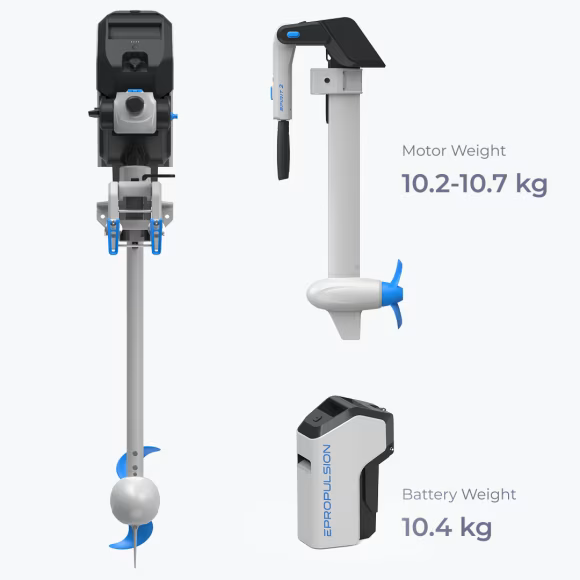

| Motor Weight* (excluding bracket) |
Extra Short: 10.2 kg
Short: 10.4 kg
Long: 10.7 kg |
| Motor Weight* (including bracket) |
Extra Short: 12.6 kg
Short: 12.8 kg
Long: 13.1 kg |
| Battery Weight |
10.4 kg |
| Battery Life |
1000 cycles at 80% DOD |
| Charging Time |
Standard charger: 8 Hrs / Fast charger: 2 Hrs |
| External Battery |
ePropulsion E Series Battery |
| Charging Temperature |
-15°C - 60°C
Charging below 0°C requires the use of fast charger
(with battery communication function) |
| Operating Temperature |
-10°C - 65°C |
| Storage Temperature |
5°C - 40°C |
| Rated RPM |
1700 to 2100 |
| Trim Angle Adjustment |
0°, 7°, 14°, 21° |
| Tilt Angle |
70°, 90° |
| Shallow Water Mode Tilt Angle |
35° |
| Steering Range |
±90° |
| Dimensions |
Extra Short: 410 x 190 x 915 mm
Short: 410 x 190 x 1015 mm
Long: 410 x 190 x 1140 mm |
| Propeller |
2-blade composite propeller, diameter 240mm, pitch 167mm |
