Rim Drive Technology

Electric Outboard Motor RIM Drive 4.2 - Entry Level

Regular Price
$0.00 CAD
Sale Price
$0.00 CAD
Regular Price
Sold Out
Unit Price
Translation missing: en.general.accessibility.unit_price_separator
Shipping calculated at checkout.
American Express Mastercard Shop Pay Visa
Secure payments

Secure payments

100% Guarantee

100% Guarantee

Client satisfaction

Client satisfaction

Have a question?

Talk with a technical expert.

  • Description

Electric Outboard Motor RIM Drive 4.2 - Entry Level Description:

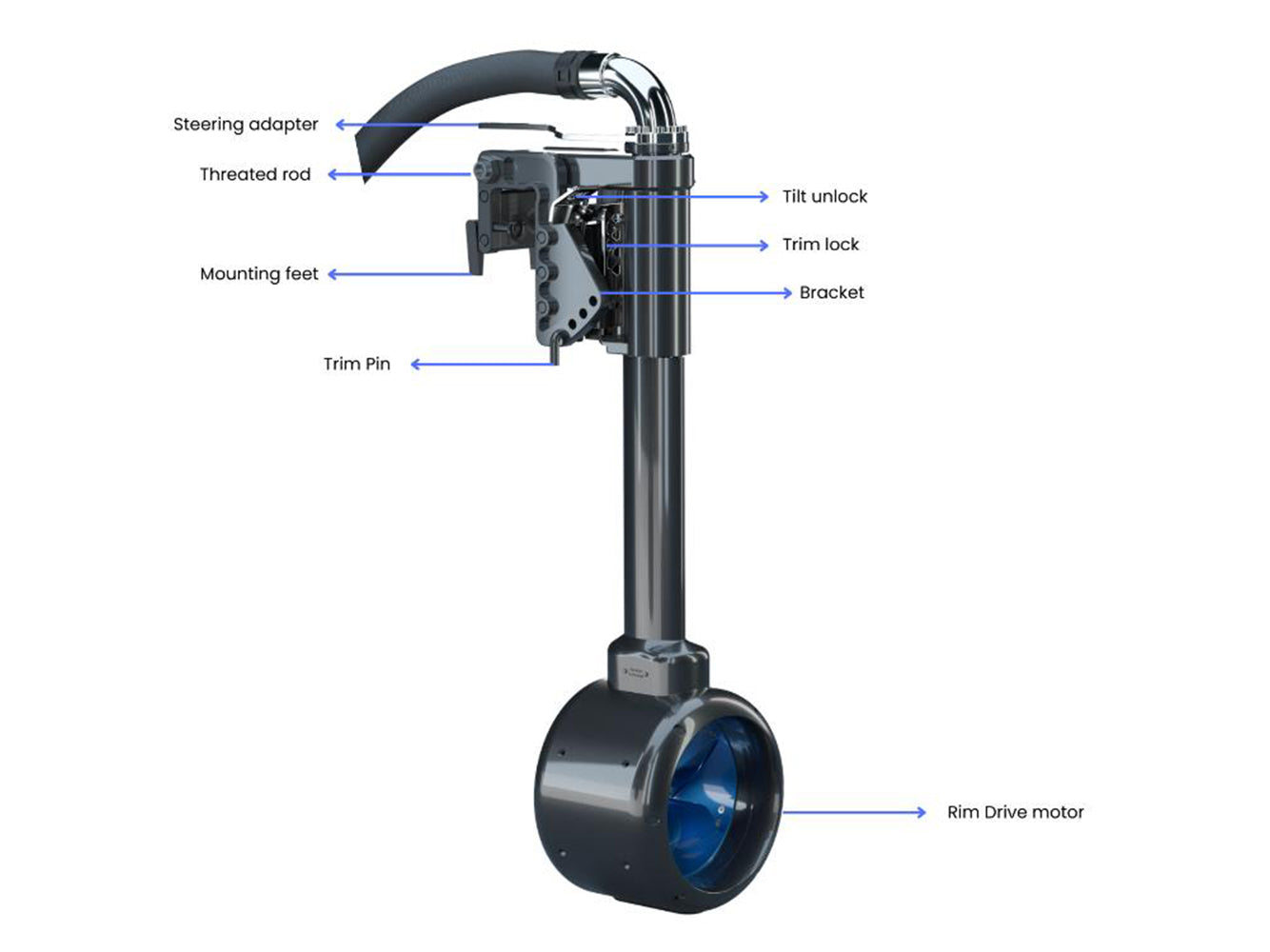

Our entry level outboard is the perfect solution for operators who are looking for an affordable solution with contains all functionalities they are looking for. The trim and tilt bracket is suitable for all standard steering cylinders available on the market. Therefore it is also a easy installable for refitting your boat!

The motor controller will be delivered separately and can be installed in a compartment close to the motor. The bracket contains five trimming positions to achieve the most efficient way of consuming your onboard power.

Specifications

  • Nominal current: 180A
  • Nominal voltage: 24V
  • Weight: 23kg
  • Propeller diameter: 133mm
  • Outside diameter: 191mm
  • Motor length: 149mm
  • Total length: 967mm
  • Static thrust: 60kg
  • Motor controller included: Yes

The Outboard can be used in a salt water environment. All materials are carefully selected to maintain optimal performance and endurance. However, this requires the use of an anode to protect the motor. For additional instructions please see the manual of the motor.

Technically the motor could be used with any battery as long as this can provide the necessary power. However, we are able to offer one of the lowest prices per Watt-hour available. Solid State or Lithium batteries offer more performance per unit of weight then lead-acid batteries. In case you are not convinced by RDT batteries, we still advise to contact us point to make sure the correct batteries are selected.

Entry Level Outboard

Model

Entry Level Outboard

Type

4.2

Input voltage

24

Nominal power

4.2

Maximum RPM

1.750

Maximum temp.

85°C

Temp. sensor

PT1000

Maximum depth*

5 meters

Motor controller

Motor controller

48V 600A

Length mc

250 mm

Width mc

200 mm

Height mc

72 mm

Weight mc

4.9 kg

Warranty terms: two years for non-commercial use and one year for commercial use
