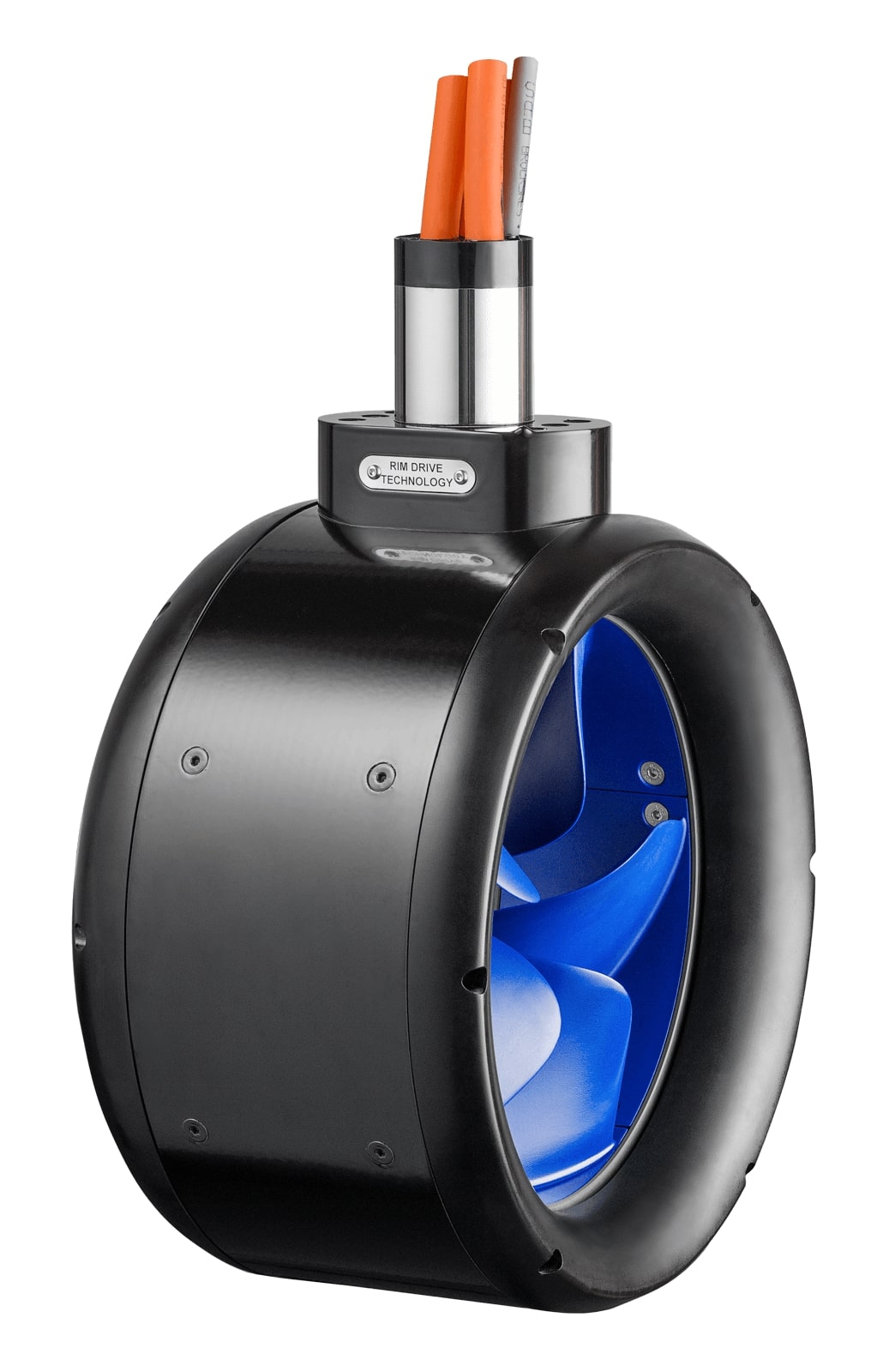

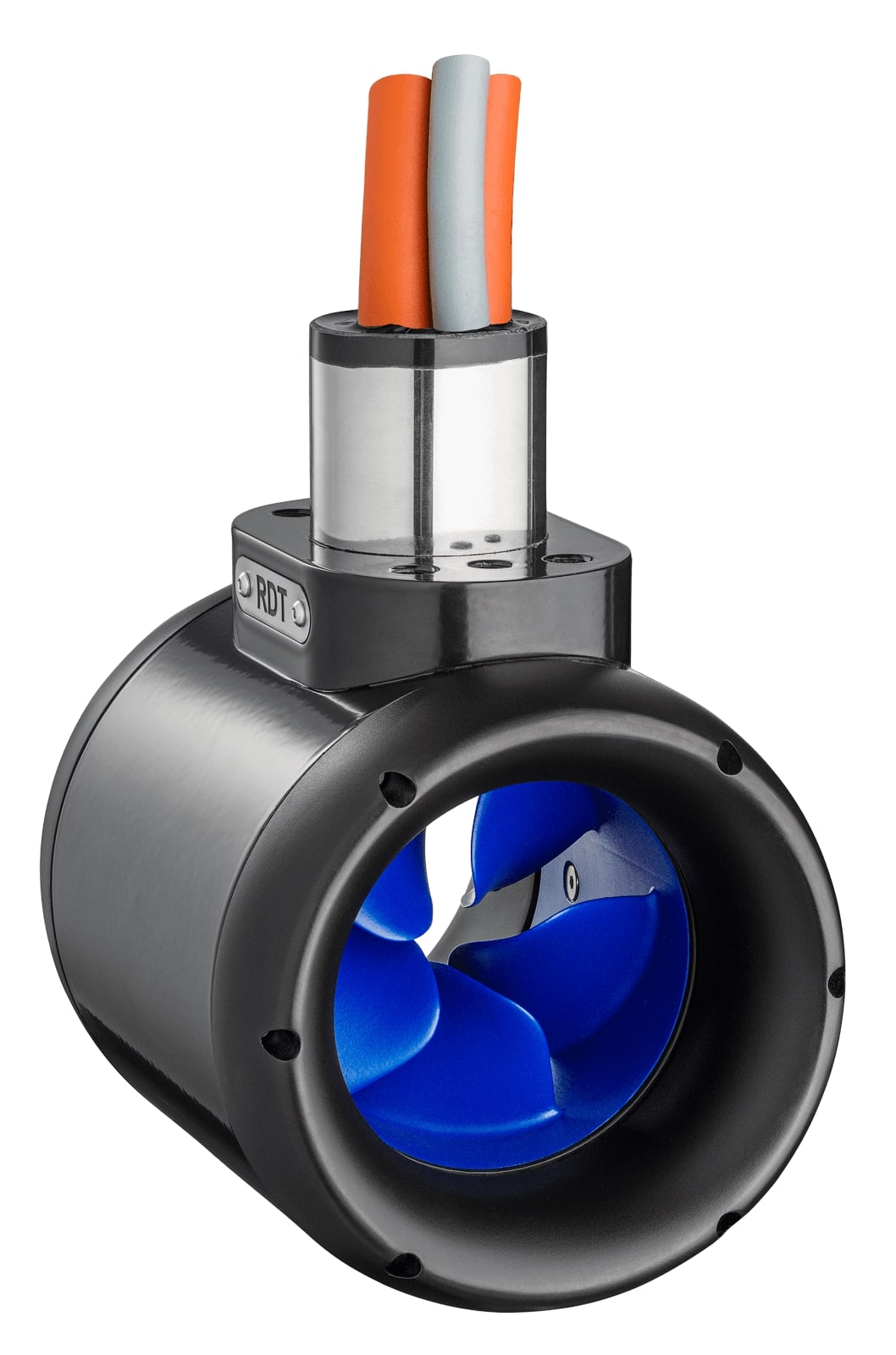

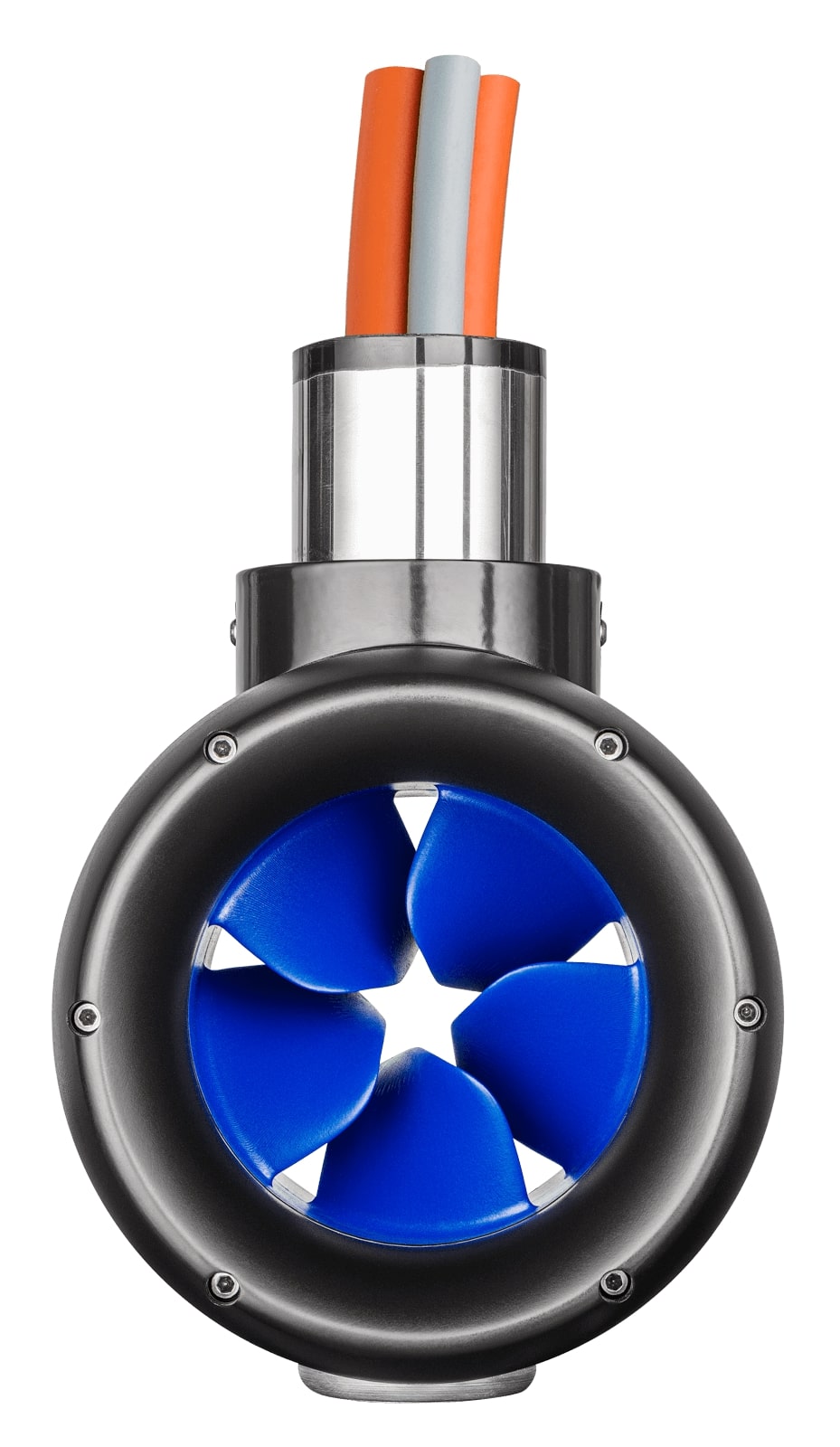

Unleash power with a maximum input of 3.0kW and a 48V nominal voltage, achieving over 90% efficiency. Immediate acceleration sets it apart, while a compact design and low weight ensures compatibility for small installations. With only one rotating part, maintenance is minimized. Enjoy versatility with clockwise, counterclockwise, and symmetric directions for every motor. Plus, all motors are completely waterproof with an IP68 rating, achieved by completely casting the motor not by using sealings. The design also minimizes risk of damage to the propeller, perfect performance in any Subsea environment. Standardly operable at maximum depth of 50m and with an optional upgrade to 3000 meter depth.
|
Model |
POD |
|
Type |
3.0 |
|
Input voltage |
24 or 48 |
|
Nominal power |
3.0 |
|
Maximum RPM |
4.000 |
|
Maximum temp. |
85°C |
|
Temp. sensor |
PT1000 |
|
Maximum depth* |
5 meters |
* For subsea motors depending on cable configurations and production methods.
Warranty terms: two years for non-commercial use and one year for commercial use
