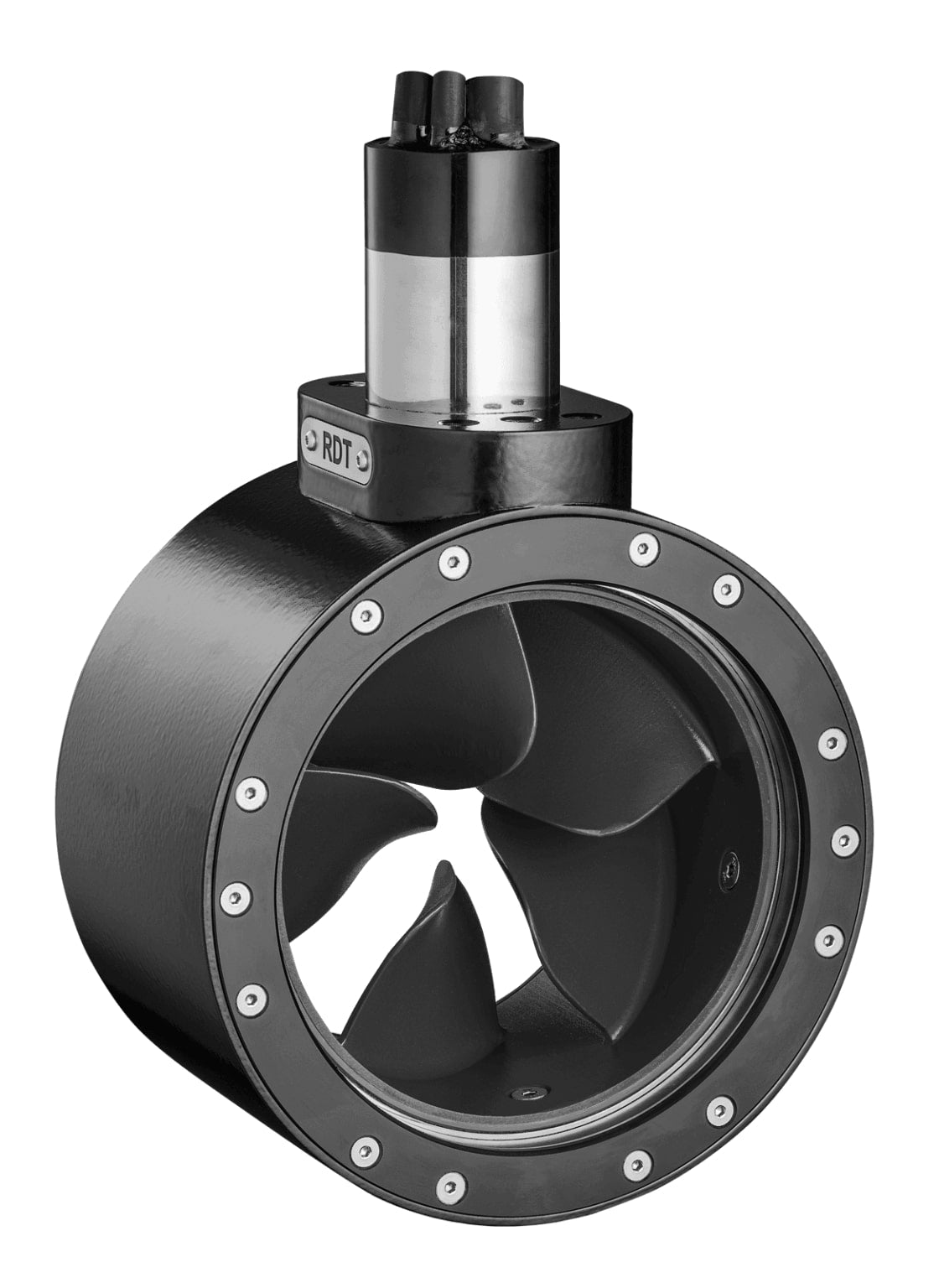

Electric Standard Bow Thruster RIM Drive 50.0 Description:

Unleash power with a maximum input of 50.0kW and either with 400V or 550V nominal voltage, achieving over 90% efficiency. Immediate acceleration sets it apart, while a compact and lightweight design makes this product truly ideal for the most space-conscious installations. With only one rotating part, maintenance is minimized. Enjoy the symmetric motors for optimal integration. Plus, all motors are completely waterproof with an IP68 rating, achieved by completely casting the motor not by using sealings. The design also minimizes risk of damage to the propeller, perfect performance in any environment.

  • Nominal current: 165A
  • Nominal voltage: 400V
  • Weight: 73 kg
  • Propeller diameter: 341 mm
  • Outside diameter: 470 mm
  • Motor length: 180 mm
  • IP Class: IP68
  • Static thrust: 675 kg
  • Salt water resistant: Yes
  • Motor controller included: No

Standard Bow Thruster

Model

Bow Thruster

Type

50.0

Input voltage

400

Nominal power

50.0

Maximum RPM

1.200

Maximum temp.

85°C

Temp. sensor

PT1000

Maximum depth*

5 meters


Warranty terms: two years for non-commercial use and one year for commercial use
