Rim Drive Technology

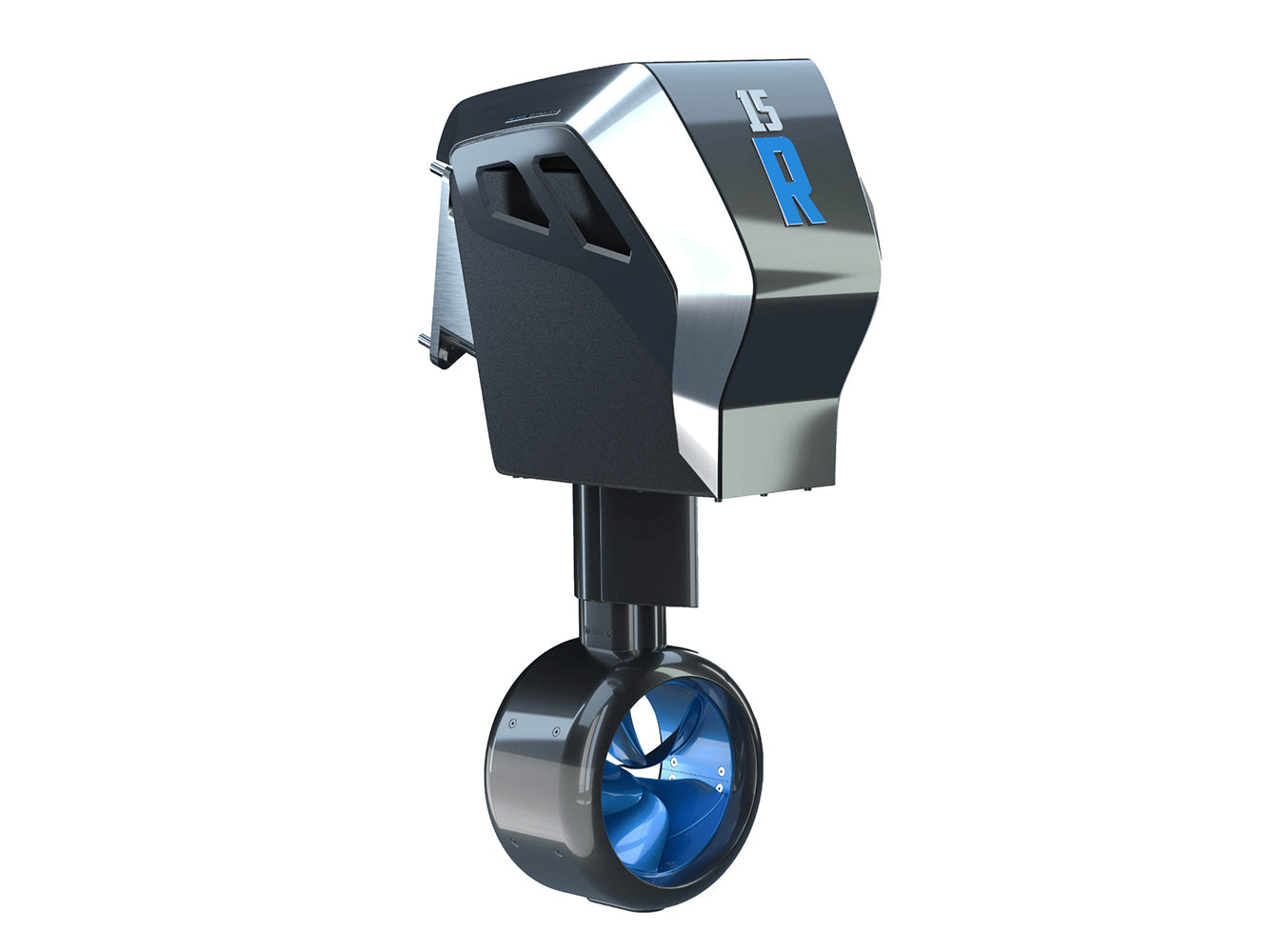

Electric Steerable Outboard Motor RIM Drive 15 kW NEW

Regular Price
$25,575.00 CAD
Sale Price
$25,575.00 CAD
Regular Price
Sold Out
Unit Price
Translation missing: en.general.accessibility.unit_price_separator
Shipping calculated at checkout.
American Express Mastercard Shop Pay Visa
Secure payments

Secure payments

100% Guarantee

100% Guarantee

Client satisfaction

Client satisfaction

New Rim Drive outboard motor with 15 kW power, suitable for boats up to approximately 5,500 kg displacement. Remote control, display, and batteries are available to match. IP68 waterproof. 48V, 230A.

Have a question?

Talk with a technical expert.

  • Description

Electric Steerable Outboard Motor RIM Drive 15 kW NEW Description:

New Rim Drive outboard motor with 15 kW power, suitable for boats up to approximately 5,500 kg displacement. Remote control, display, and batteries are available to match. IP68 waterproof. 48V, 230A.

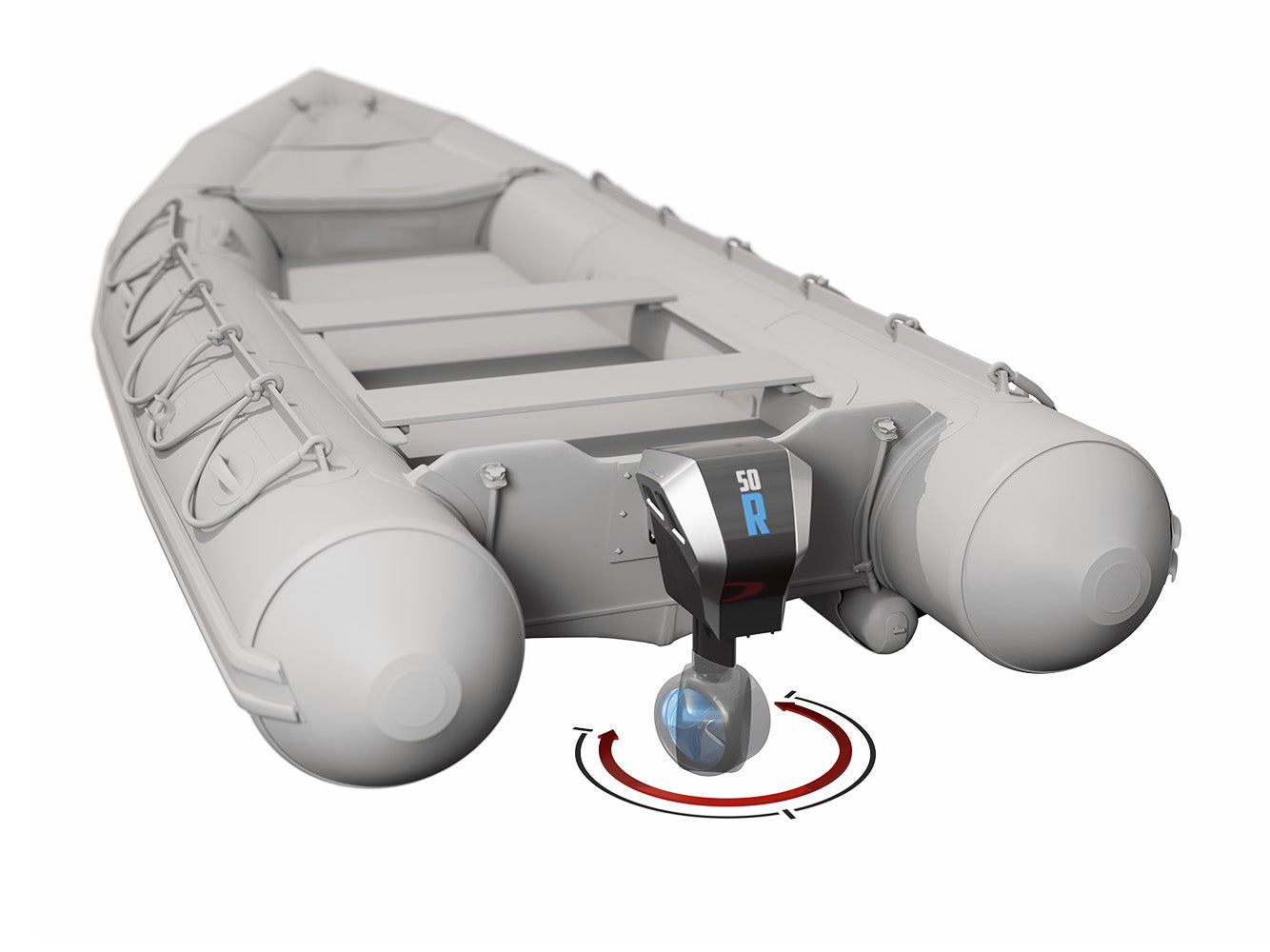

The special feature compared to the normal RD outboard motor is the 320° rotation for easy docking and maneuvering with large boats. Steering wheel and joystick control possible. Optionally with intelligent steering system.

Specifications

  • Nominal current: 300A
  • Nominal voltage: 48V
  • Weight: 70kg
  • Propeller diameter: 212mm
  • Outside diameter: 290mm
  • Motor length: 207mm
  • Total length: 994mm
  • Salt water resistant: Yes
  • Motor controller included: Yes

The Outboard can be used in a salt water environment. All materials are carefully selected to maintain optimal performance and endurance. However, this requires the use of an anode to protect the motor. For additional instructions please see the manual of the motor.

Technically the motor could be used with any battery as long as this can provide the necessary power. However, we are able to offer one of the lowest prices per Watt-hour available. Solid State or Lithium batteries offer more performance per unit of weight then lead-acid batteries. In case you are not convinced by RDT batteries, we still advise to contact us point to make sure the correct batteries are selected.

Electric control unit data

Model

Steering motor

Thermal protection

Yes

Lock

Mechanical lock

IP-class steering motor

IP65

Rotation speed

Continuous rotation speed 13 rpm (without ramp up/ ramp down speed)

Rotation motor type

BLDC

Maximum torque

120Nm at motor shaft

Temperature range

-30 to 70°C (derated)

Warranty terms: two year for non-commercial use and one year for commercial use

steerable electric outboard motor 15 kw by rim drive technology from Crabzz
