Space-Saving Electric Propulsion System for New-Build Boats & Repowers.

ePropulsion Pod Drive 20 kW power, suitable for heavy sailboats up to 10,000 kg. The ePropulsion electric drive with remote control is comparable to a 40 PS gasoline saildrive. The new model of the pod series also has a direct drive and is damn quiet. 96V high voltage.

Have a question?

Talk with a technical expert.

Call Us
  • Description

ePropulsion Electric Pod Drive eSSA 20kW / 27HP Description:

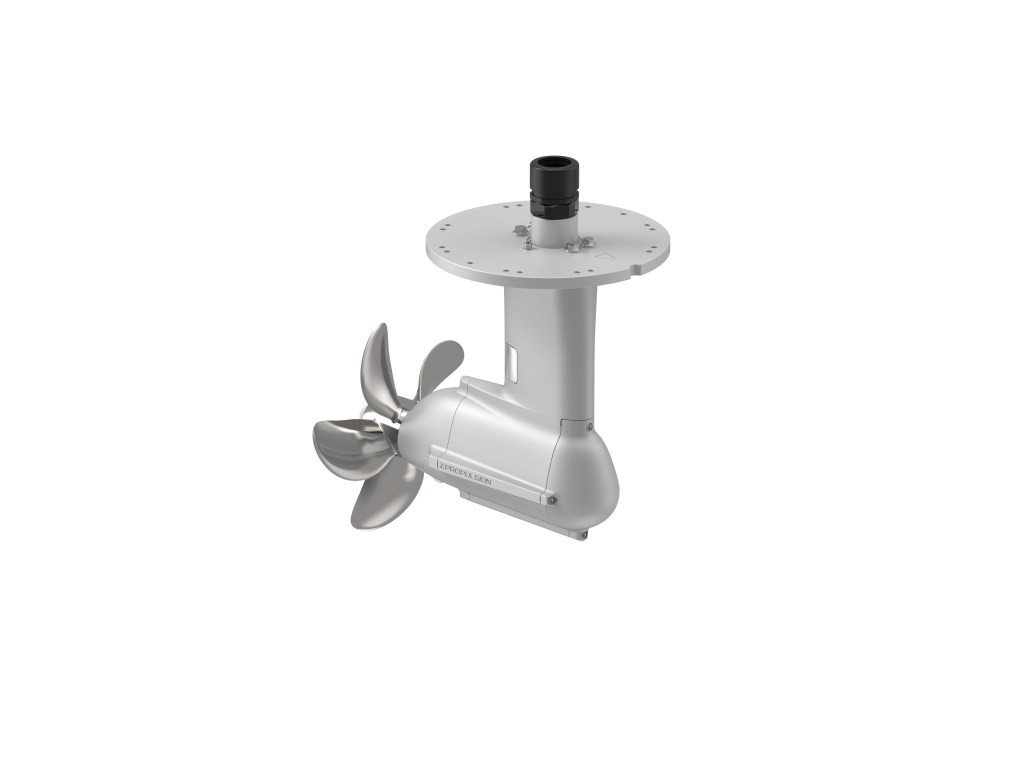

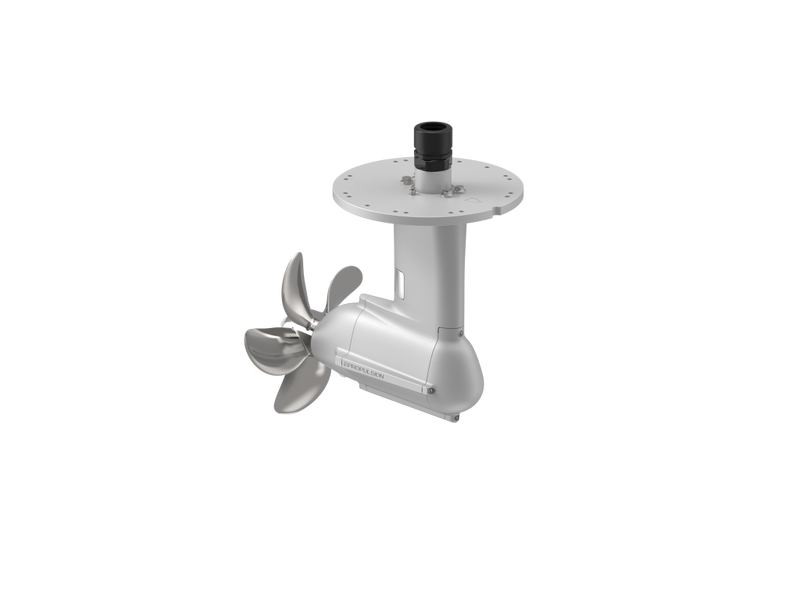

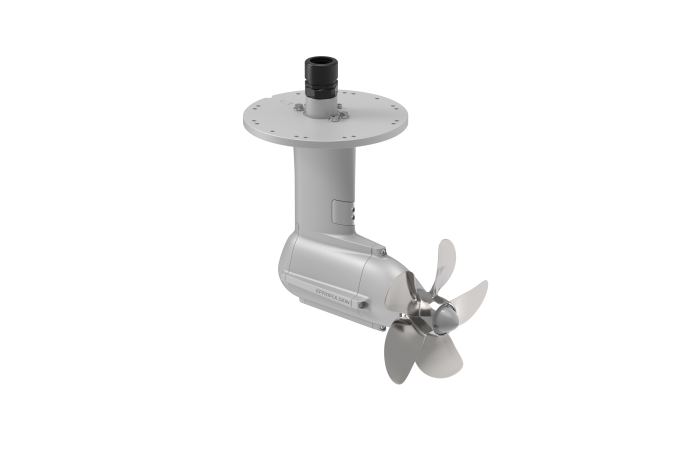

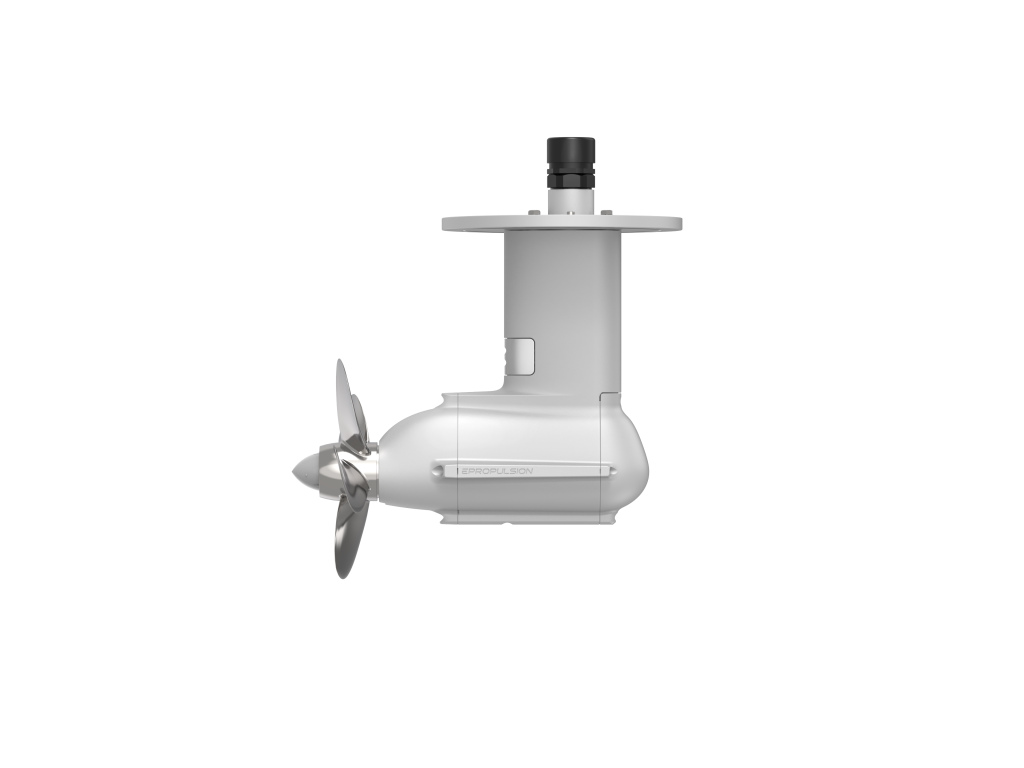

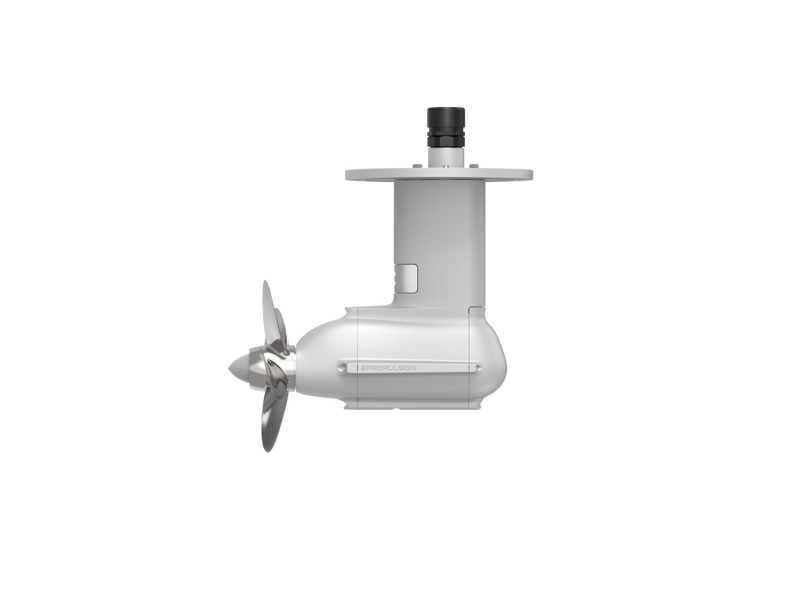

Introducing Pod Drive eSSA

A Pod Drive eSSA motor opens up new design possibilities for naval architects, setting a fresh standard in marine innovation. It elevates any vessel, bringing onboard a new level of luxury and sophistication

Exceptional Reliability

Engineered for durability, designed for the demands of constant saltwater
exposure, the electric Pod Drive is crafted from marine-grade, high-strength
aluminum alloy for exceptional impact resistance and durability. Rigorously tested to withstand harsh marine conditions, its self-cooling design naturally disperses heat through water submersion, removing the need for cooling channels and frequent impeller changes—delivering dependable, low-maintenance performance you can trust in any environment



Hydrogeneration

Equipped with a hydrogeneration function as standard, Pod Drive eSSA can charge your batteries when sailing.

Space Saving

The electric Pod Drive redefines onboard space, combining the motor, propeller, and cooling system into one sleek, compact unit that mounts beneath the hull. By eliminating the need for bulky inboard engines and complex shaft lines, it frees up valuable interior space, allowing for more passenger comfort, added amenities, or increased storage. This innovation lets you reimagine the possibilities onboard, enhancing both design flexibility and luxury.

Effortless Installation and Versatile Mounting

The electric Pod Drive is designed for ultimate flexibility, featuring straightforward installation and versatile mounting options compatible with various vessel types. It easily fits onto any Volvo or Yanmar sail drive mounting, saving time and ensuring a seamless integration—ideal for elevating any design with minimal effort.

Performance and Range Spec Pod Drive 20 eSSA*

Input (kW)

 5 10 15 20

Speed (kph / knot)

11.5 / 6.2

14 / 7.5

16 / 8.6

18 / 9.7

Runtime (hh:mm)

4:00

2:00

1:20

1:00

Range (km / nm)

46 / 24.8

28 / 15

21.3 / 11.5

18 / 9.7



*The performance data is based on a 21.3-foot shallow draft sailboat with 2000kg displacement, powered by one Pod Drive 20 eSSA with two G102-100 batteries in calm lake water.

Flexible & Scalable

The Pod Drive eSSA is ideal for both custom-designed new boat installation and for retrofitting old boats. Different numbers of batteries can be selected according to the speed and range requirements (Up to 8 batteries can be connected in parallel within a single cluster. Multiple clusters are possible in the system).

G102-100 Battery

Lithium Iron Phosphate Battery (LiFePO4)

High-performance, durable and long lasting lithium iron phosphate battery for electric boating.
  • Fully Compatible with Pod Drive eSSA
  • Safe and Reliable
  • High Energy Density
  • Long Life Cycle

Runtime with 1 x G102-100 battery

Half Speed Runtime / 1Hr

Full Speed Runtime / 30 Mins

Runtime with 2 x G102-100 batteries

Half Speed Runtime / 2Hrs

Full Speed Runtime / 1Hr

Specs Pod Drive 20 eSSA

Input Power

20 kW

Nominal Voltage

96 VDC

Weight (driver unit included)

53 kg (68.3 lbs)

Dimensions (L x W x H)

Motor: 642 x 596 x 168 mm

Driver unit: 343 x 296 x 197 mm

Cooling System

Motor: Natural cooling
Driver unit: Air cooling

Rated RPM

1500

Propeller

15” x 10 7/8″ propeller

The specifications are for reference only.
