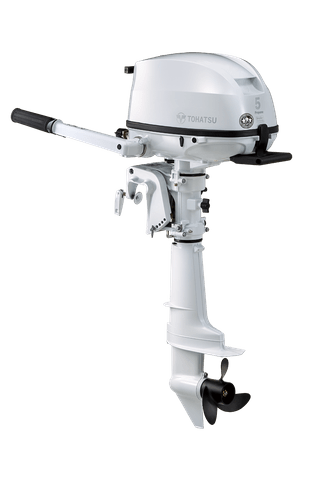

Thanks to Tohatsu’s 5hp Propane / Liquefied Petroleum Gas (LPG) outboard, sailors are no longer forced to carry gasoline on board. The 5hp LPG comes equipped with a fuel line that will connect to any standard North American propane tank. Our innovative LPG outboard will run for a full 5 hours at WOT on a single 11lb propane tank, without sacrificing performance.
Tohatsu’s Propane outboard is equipped with a Safety Fuel Shut Off Valve which keeps propane fuel from continuously flowing when the engine is not in use. Plus, since the 5hp LPG does not require ethanol or gas, this propane outboard requires almost zero maintenance on fuel related components. We offer a 20” and 25” shaft SailPro model which includes a 12V 60W 5A charging system and high thrust prop. What sailor doesn’t want a virtually maintenance free engine that has their back?
This portable best-seller has been upgraded with newly designed top and bottom cowls based on Tohatsu Design Philosophy for Marine Products with ergonomically designed front and back carrying handles.
In addition, you can now store your engine in 3 different positions without worrying about oil spillage.
*Please refer to Owner's Manual for storage and transportation guidelines.
| Engine | 4 Stroke 1 Cylinder |
|---|---|
| Output | 5 ps (3.7 kw) |
| Displacement | 123 cc (7.5 cu.in.) |
| Bore x Stroke | 59 x 45 mm (2.32 x 1.77 in) |
| Max. RPM Range | 5,000 - 6,000 |
| Starting | Manual |
| Control Type | Tiller Handle |
| Gear Shift | Forward - Neutral - Reverse |
| Gear Ratio | 2.15:1 |
| Propeller Selection Range | 6" - 9" |
| Transom Height | 15", 20", 25" |
| Fuel | LPG HD-5 (More than 65% Propane) |
| Fuel Consumption @ WOT | Fuel Efficiency: 11lb (5kg) 5h @ WOT |
| Max Torque | 7.2/4,100 (N-m/rpm) |
| Regulator | 2-Step Diaphragm |
| Oil Capacity | 450 mL (15 fl. oz.) |
| Fuel Tank | Internal Fuel Tank Models (MFS5CD) : 1.1L (0.29 US Gal.) Integral Tank (Includes an External Fuel Tank Connector installed on engine to allow user to use an optional external fuel tank), External Fuel Tank Models (MFS5CS) : 12L (3.1 US Gal.) Separate Fuel Tank |
| Weight* | 27.2 kg (59.5 lbs.) |
| Alternator Output | Optional: 12V, 60W, 5A (Standard on SP Model) |
| Digital CD Ignition System | Standard |
| Safety Fuel Shut Off Valve | Standard |
| Start In Gear Protection | Standard |
| Thermostat Controlled Cooling System | Standard |
| Through-The-Prop Exhaust | Standard |
| Oil Pressure Warning | Standard |
| Shallow Water Drive | Standard |
