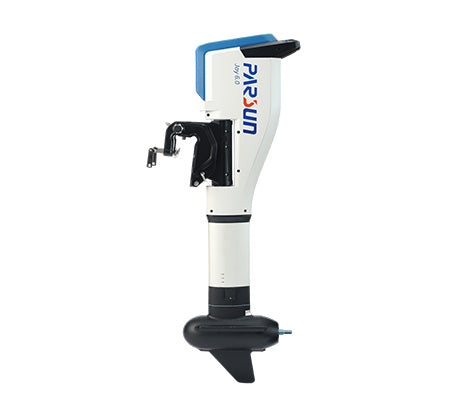

Electric outboard Parsun Joy 6.0 is the latest innovative electric outboard motor of Parsun boat motor company, featuring with quiet running, zero emission, maintenance free and easy driving. Joy 6.0 with 6kW or 9.9HP (10HP) input power, efficient water-cooling system and PMSM with Direct Drive is suitable for different type of watercraft.
Short/Long shaft design: Makes the Joy 6.0 ideal for a wide range of boats, including inflatable, aluminum boats, pontoon boats, and others under 20 feet with a 15-inch transom height.
Short shaft: Shaft length: 433mm.
Long shaft: Shaft length: 570mm.
Born with high performance, destined to be extraordinary. Thanks to direct drive technology, Joy 6.0 is powerful, efficient, quiet, reliable and maintenance free in running. A direct drive torque motor is a Permanent-Magnet Synchronous Motor (PMSM). Hence, the load is driven without the use of a gearbox or transmission. This reduces the number of moving parts, and thereby increases the operational lifetime and efficiency of the application.
Water Cooling System - Low Noise - Fast Heat Radiation. Efficient water-cooling system ensures stable performance output, whether in sea water or fresh water.
Your Control of the Complete System - Easy Data Access - Sunlight Readable - Battery Status Monitoring. Joy 6.0 offers a visual digital touch display panel both for the models with a tiller and the remote-control models.
Multi-function Display
Display Data Includes:
Setting Functions:
|
Model |
Joy 6.0 |
|
Steering system |
Tiller handle/remote control |
|
Rated power |
6kW |
|
Motor efficiency |
≥80% |
|
Rated rpm |
1550rpm |
|
Drive motor |
PMSM with direct drive |
|
Rated voltage |
48V DC |
|
Battery capacity |
175Ah/80Ah |
|
Water proof |
IP67 |
|
Overall height |
1338mm(L)/1211mm(S) |
|
Shaft length |
570mm(L)/433mm(S) |
|
Size（length*width） |
558x284x1338mm (L) |
|

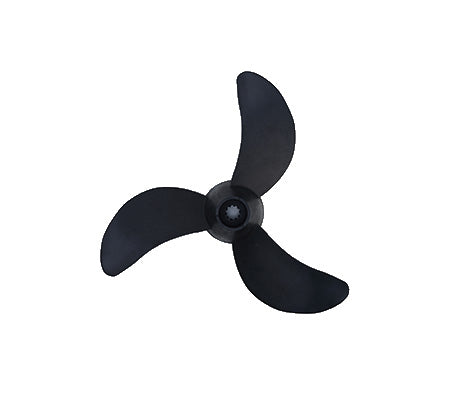

Propeller |
3 blades, 340*174mm |
|
Trim/tilt angle |
0°、4°、8°、12°/60° |
|
Battery position |
External |
|
GPS |
Yes |
|
Bluetooth APP |
Yes |
|
Weight（L） |
35kg (without battery) |
|
Power (Watt) |
Speed (mph/kph) |
Running Time (hh:mm) |
Range(mile/km) |
|
1000 |
4.9 / 7.9 |
8:57 |
44.0 / 70.8 |
|
2000 |
5.3 / 8.5 |
4:42 |
24.7 / 39.7 |
|
3000 |
5.5 / 8.8 |
3:17 |
17.7 / 28.5 |
|
4000 |
6.6 / 10.6 |
2:45 |
15.4 / 24.8 |
|
5000 |
7.5 / 12.0 |
2:26 |
15.7 / 25.2 |
|
6000 |
8.0 / 13.0 |
2:14 |
14.7 / 23.7 |
Notice: The performance data is based on a 4.2m inflatable boat with one person, powered by one Joy 6.0FL with one 175Ah battery in calm river water.
