Sales package includes everything you need for installing the hydrogenerator to your boat.
In addition to the products below, the package includes mounting accessories, ferrite filter and mounting instructions.

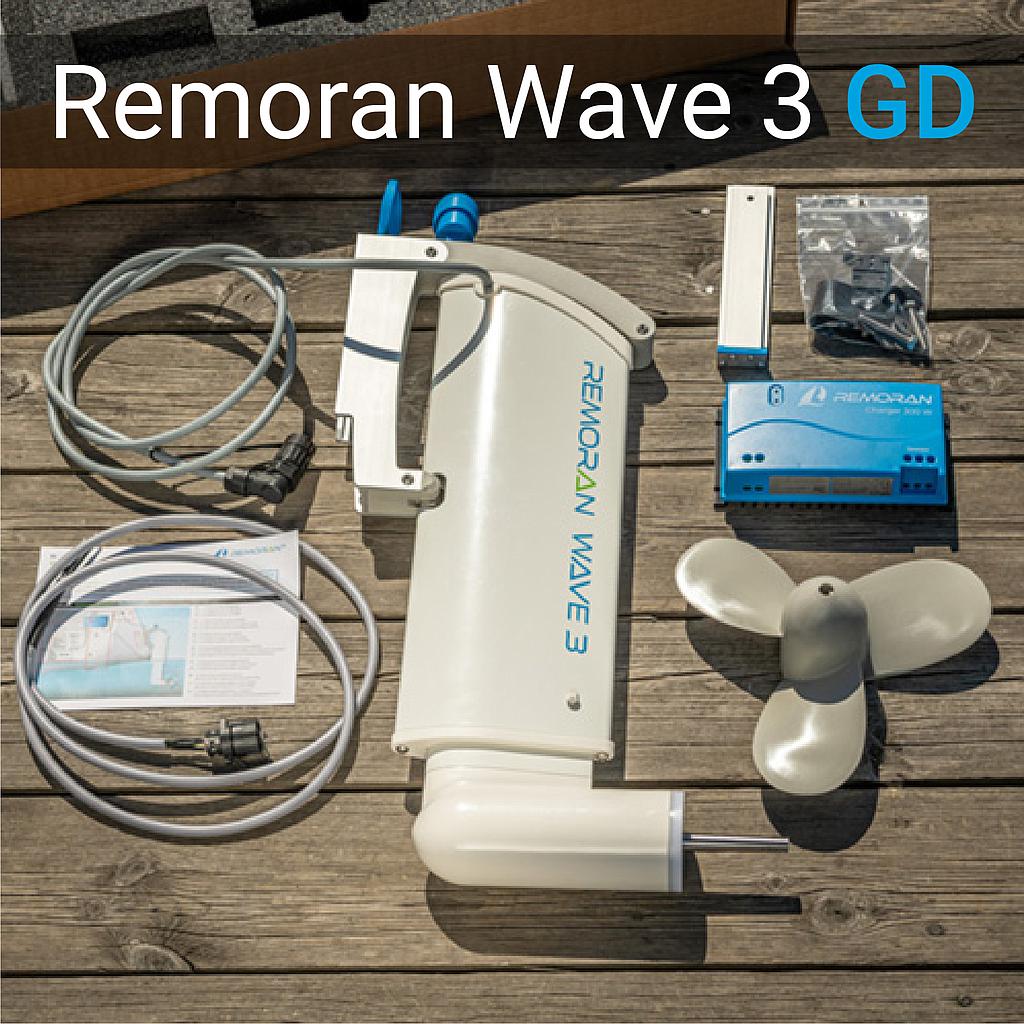

Remoran Wave 3GD includes

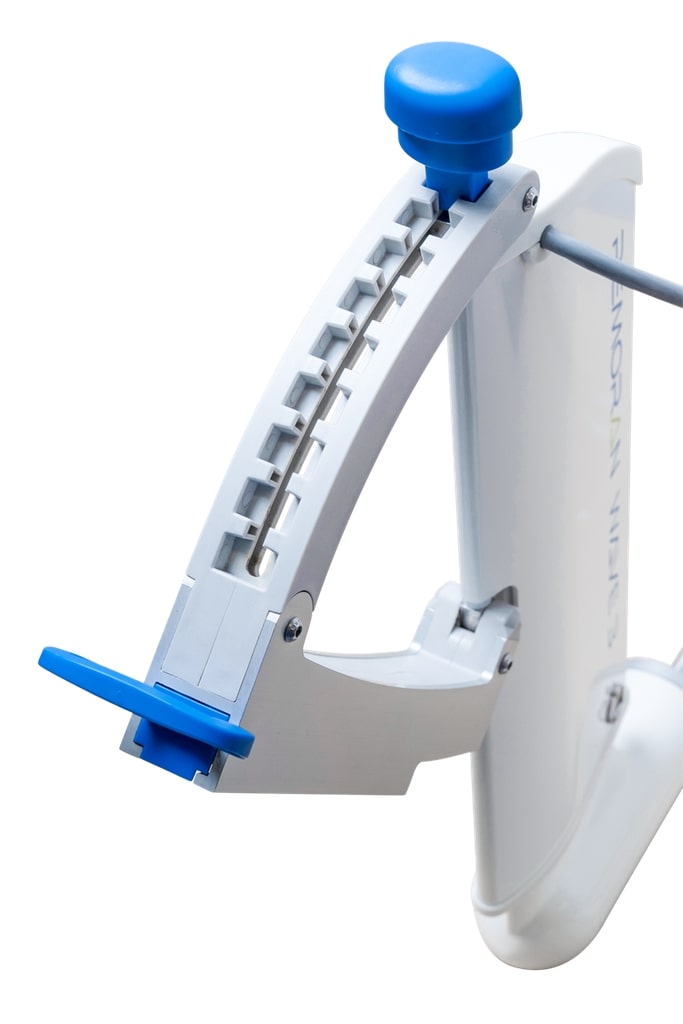

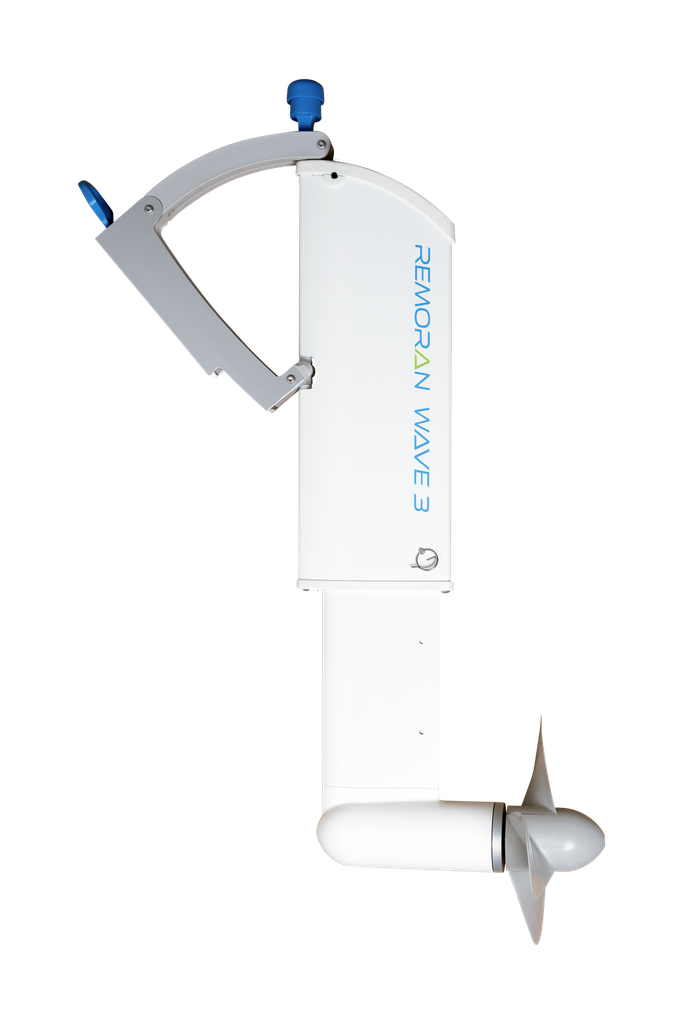

- Remoran Wave 3GD outboard unit with fixed cable (2m), female connector and cap
-
Remoran Charger GD 300W -electronic charger
- Generator cable 2m with male connector and cap
- Mounting rail
- Mounting accessories kit
-
Ferrite filter
-
Mounting instructions
- Warranty 2 years
Weight: 11 Kg
Dimensions: 774 mm x 445 mm x 135 mm
Technical Details

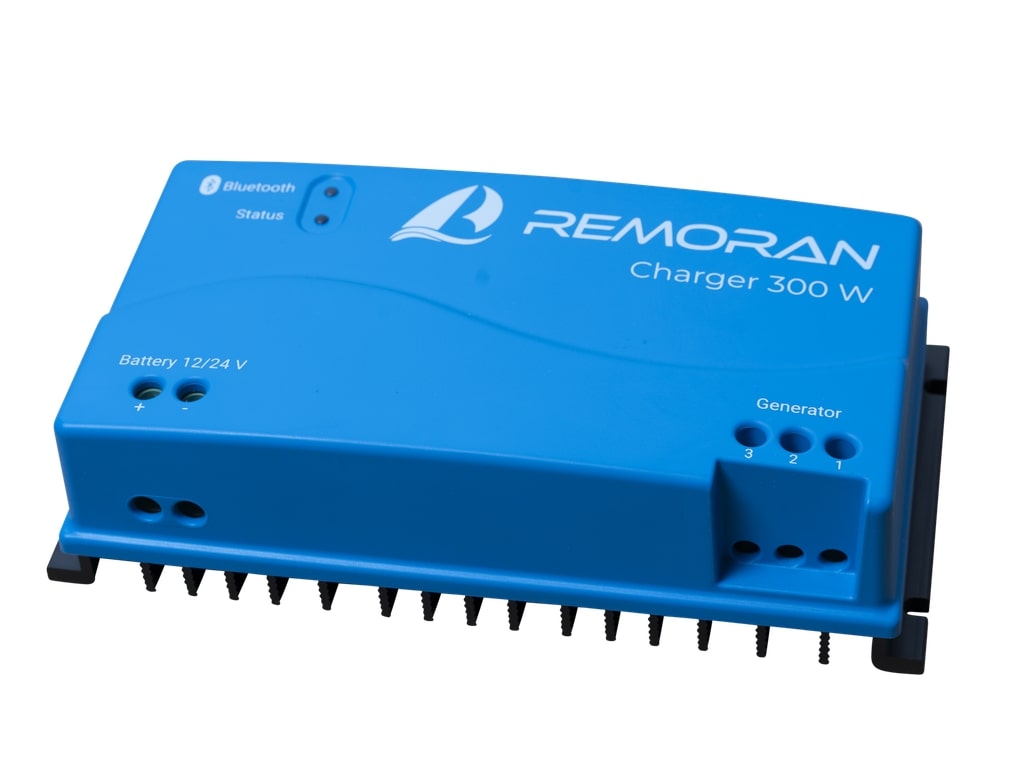

Remoran Charger GD 300W
Length of outboard unit |
680 - 980 mm |
Weight of outboard unit |
7,5 kg |
Maximum operation speed |
20 knots* |
*Charger damage may occur at speeds greater than stated unless Protection Relay PR-01 is fitted.
Remoran Charger GD 300W
Maximum allowable input voltage |
35VAC (3-phase) |
Output voltage |
12V/24V |
Output current |
max 25A |
Output power |
max 300W |
Standby power consumption |
20mA |
Operating temperature range |
-10⁰C - +55⁰C |
Compatible batteries |
Pb, AGM, Lithium |
Charging data collection |
Power, temperature, RPM etc. |
Bluetooth communication |
Bluetooth low energy |
Dimensions |
53 x 203 x 105 mm |
Weight |
620g |
