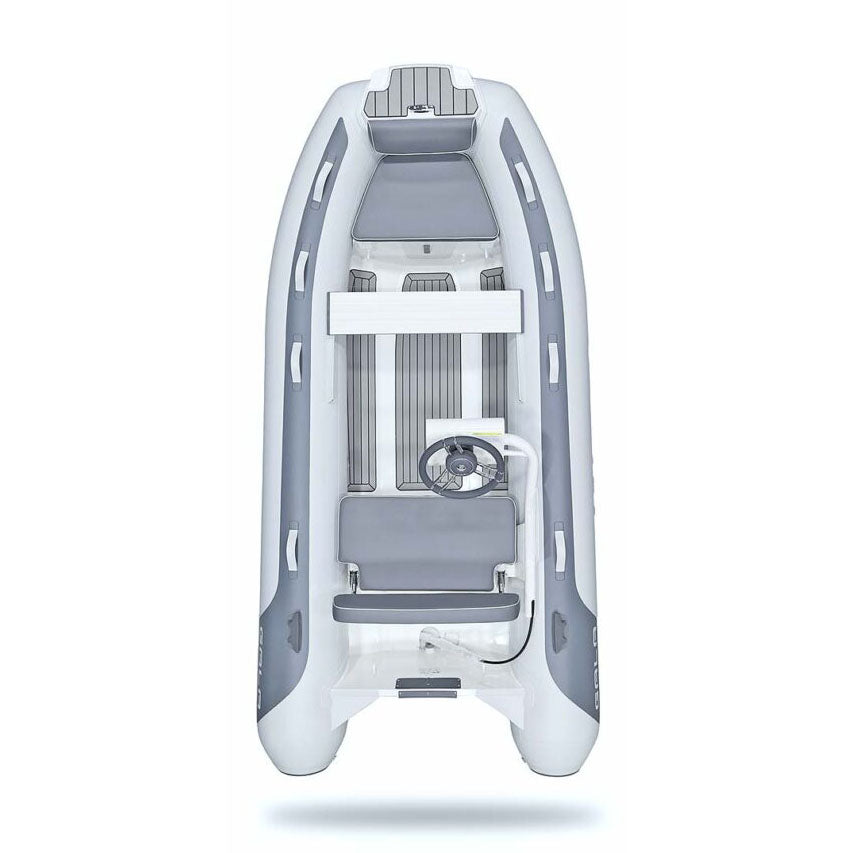

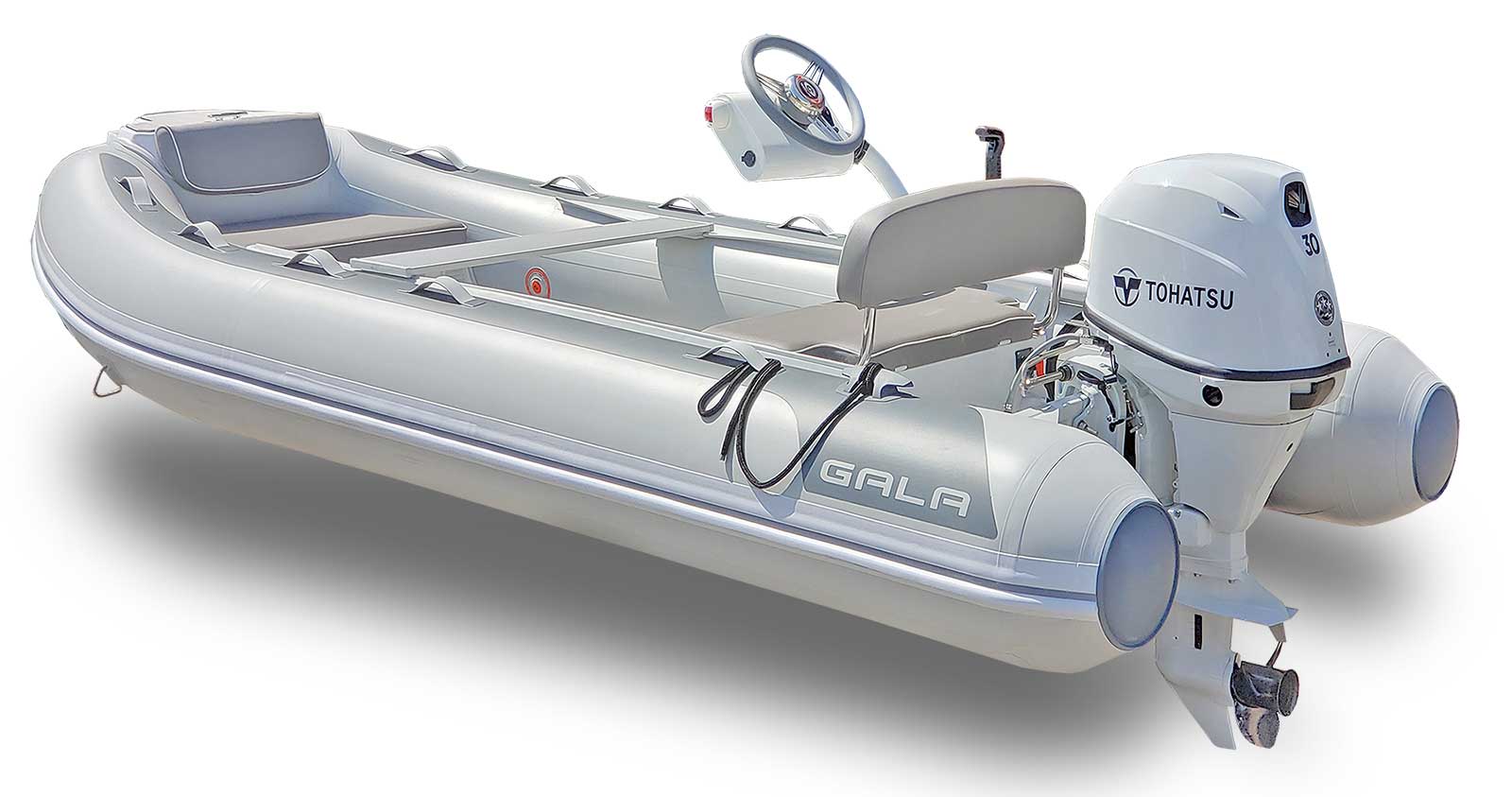

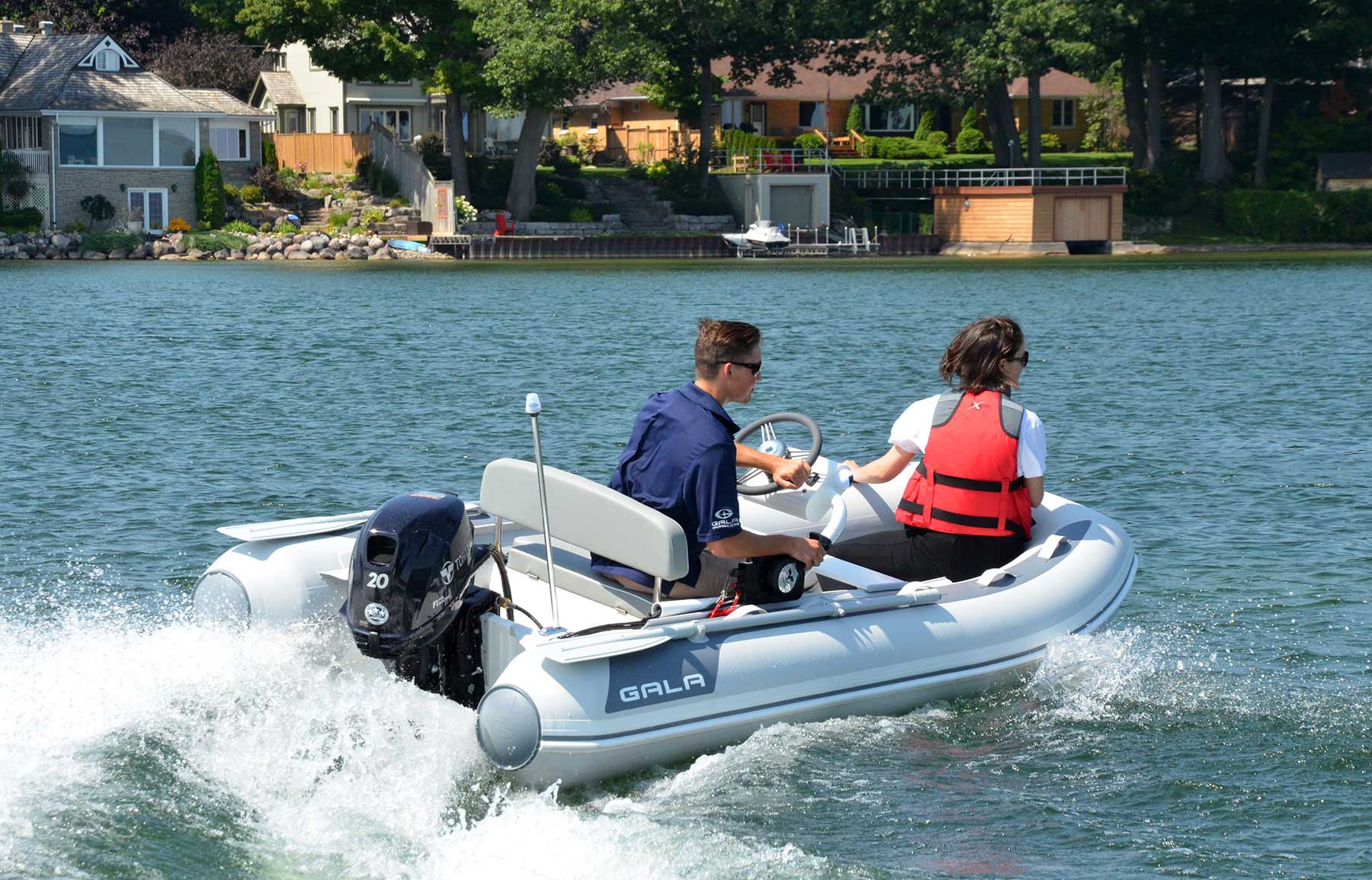

The AQUAHELM for GALA boats is THE IDEAL SOLUTION if you are looking for the lightest tender with remote steering. Four GALA models can be equipped with the AQUAHELM S-08 steering console & seat combo. It is an innovative design from GALA. Extremely light and versatile with slim, eye-catching outlines, it easily converts your dinghy to an unbeatable center console! Available as an upgrade for models A300D, A330D, A360D, A390D. The console can be installed any time if you want to upgrade from classic tiller drive to remote control steering. You can also adjust console and arm positions for your comfort.
“GALA TABS” hull design
GALA Tabs are the feature created and patented by GALA. It significantly improve performance and let you get on plane as easy as no any other boat!

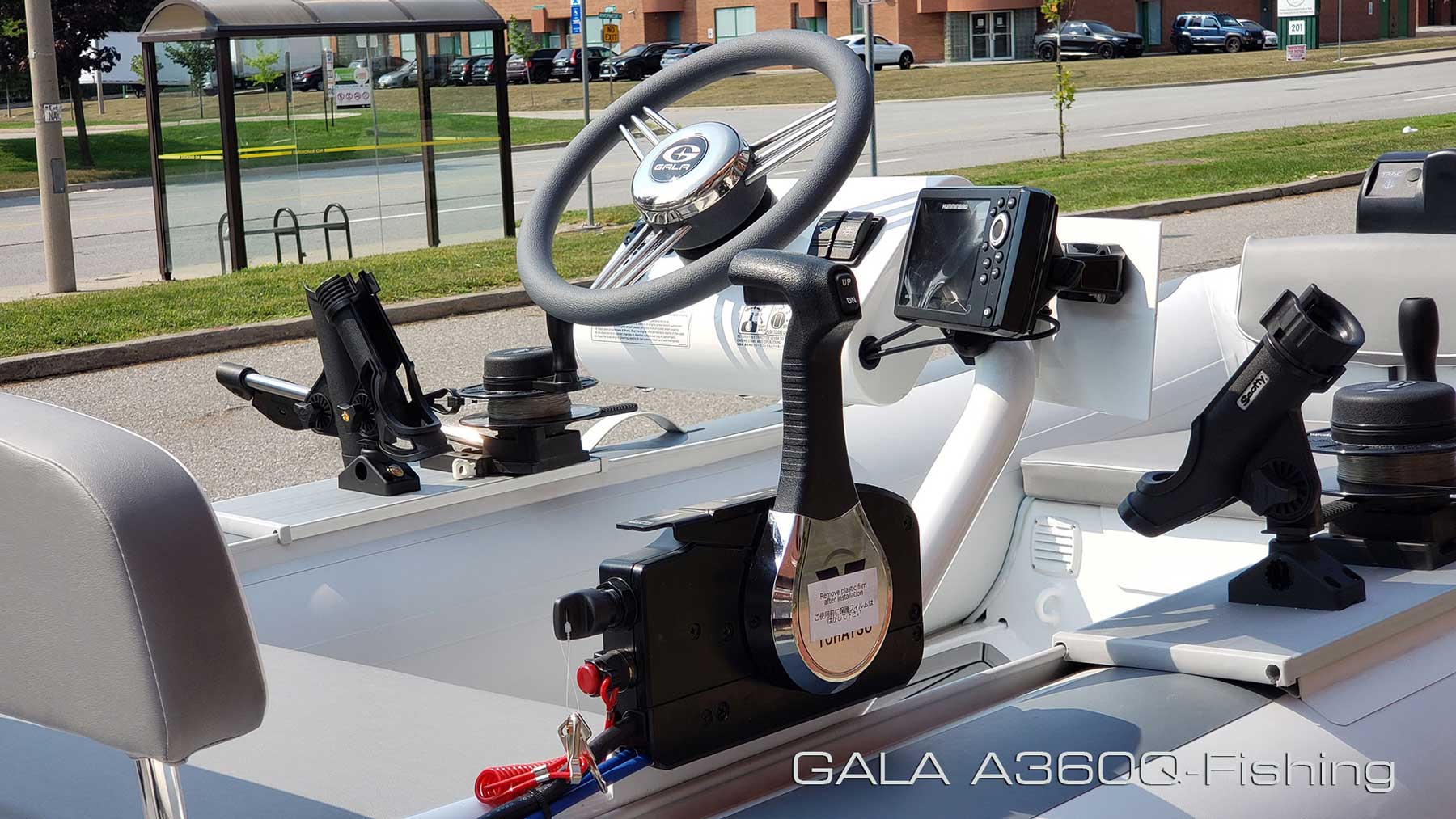

CONSOLE SLIM DESIGN

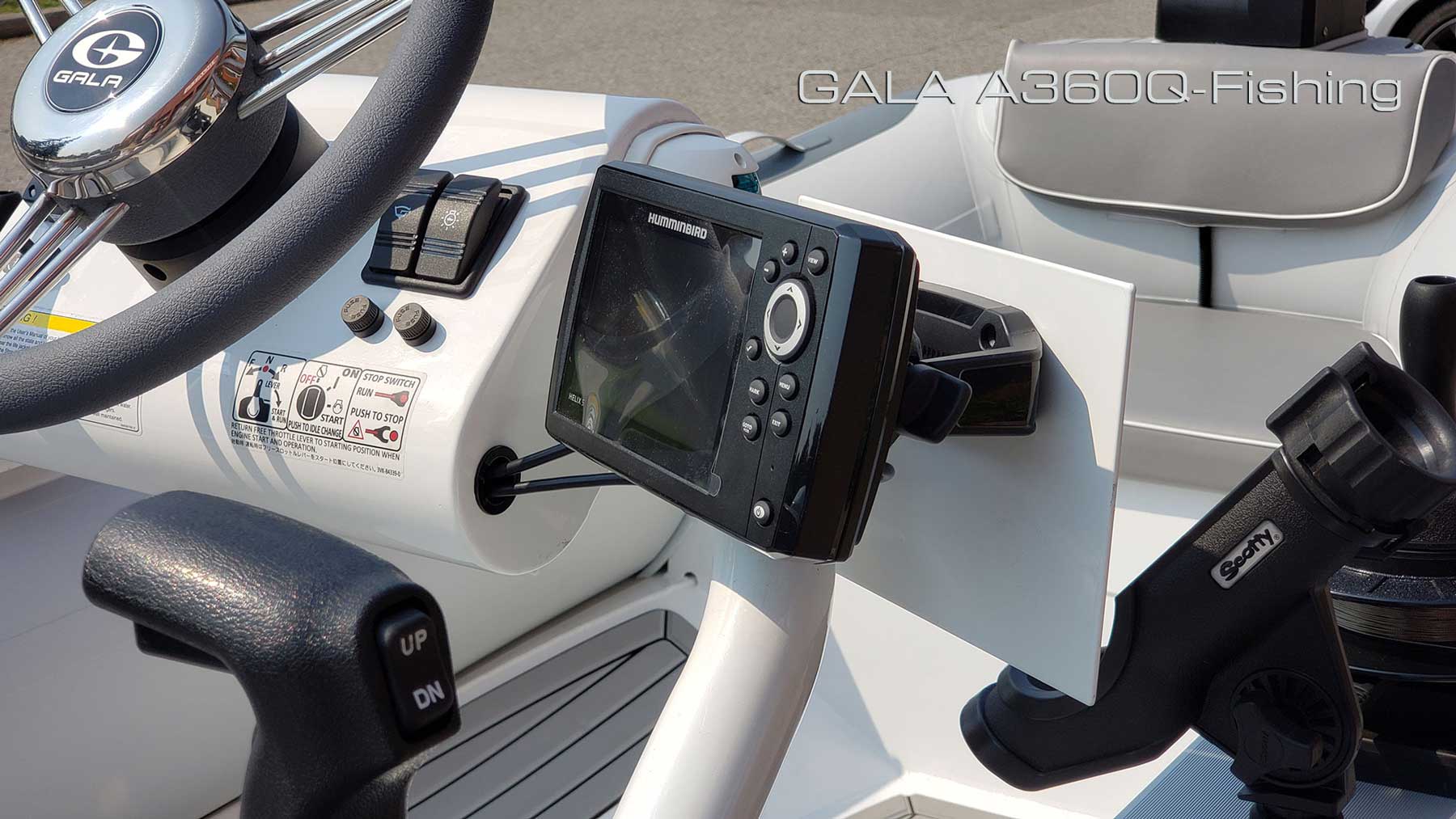

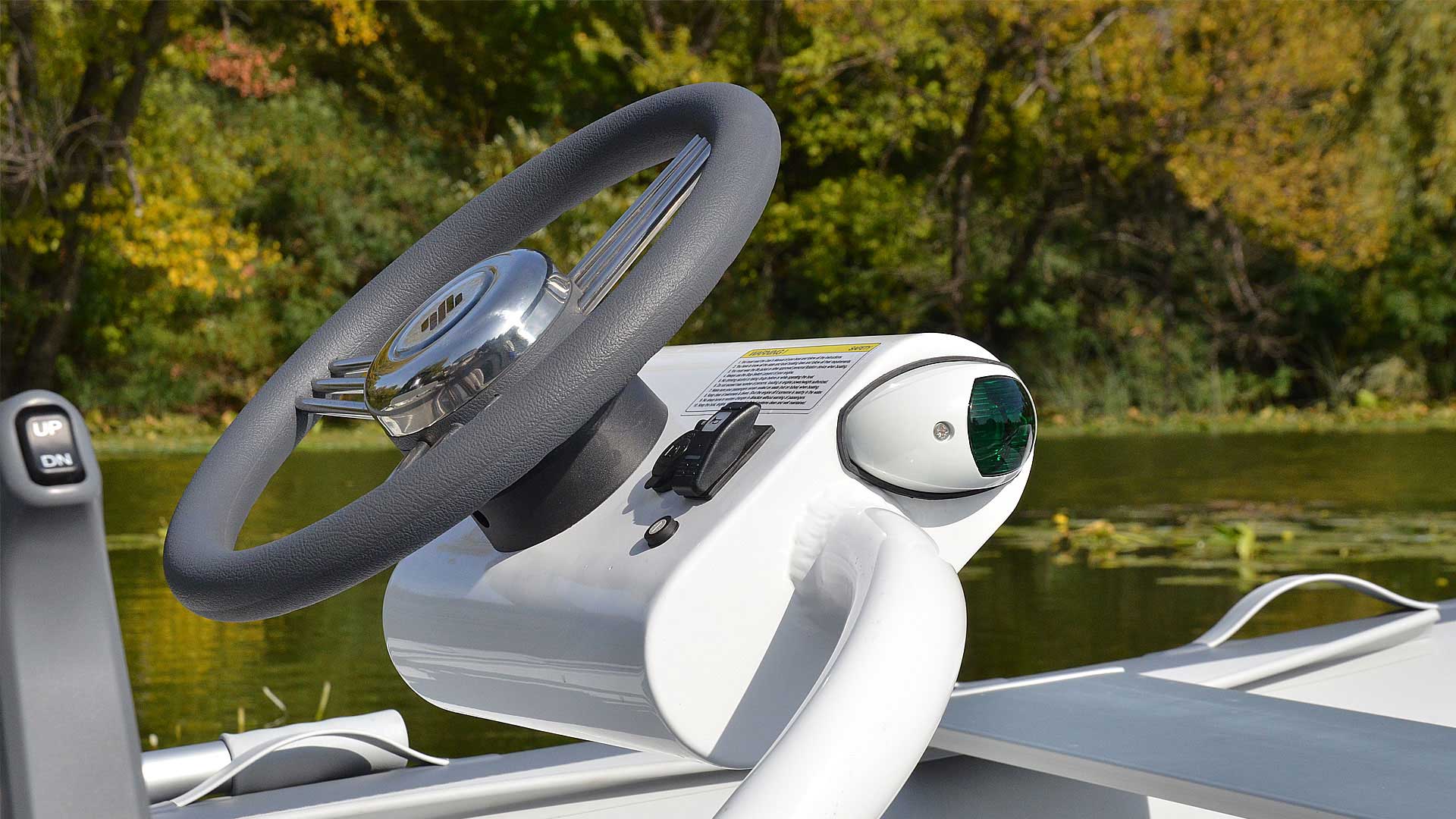

AQUAHELM console has an elegant and slick design with enough interior room for a lot of equipment
A LOT OF FREE LEG ROOM
AQUAHELM concept gives you an incredibly big amount of free cockpit space and, especially, LEG ROOM for the driver and passengers.
EXTREMELY LOW WEIGHT
Each GALA Atlantis-AQUAHELM is extremely low weight. It makes them an unbeatable choice if you need really lite boat with remote steering!
OVERPRESSURE VALVE
Each boat is equipped with the advanced Overpressure Valve for protection against overheating and over-inflating.
|
Models |
A300Q |
A330Q |
A360Q |
A390Q |
|---|---|---|---|---|
| Length overall | 300 cm / 9’10” | 330 cm / 10’10” | 360 cm / 11’10” | 390 cm / 12’10” |
| Length inside | 222 cm / 7’3″ | 252 cm / 8’3″ | 282 cm / 9’3″ | 310 cm / 10’2″ |
| Width overall | 170 cm / 5’7″ | 170 cm / 5’7″ | 170 cm / 5’7″ | 170 cm / 5’7″ |
| Width inside | 82 cm / 2’8″ | 82 cm / 2’8″ | 82 cm / 2’8″ | 82 cm / 2’8″ |
| Tube Diameter | 44 cm / 17″ | 44 cm / 17″ | 44 cm / 17″ | 44 cm / 17″ |
| Bare boat weight | 97 kg / 213 lbs | 103 kg / 226 lbs | 109 kg / 239 lbs | 115 kg / 253 lbs |
| Loading capacity | 500 kg / 1100 lbs | 550 kg / 1210 lbs | 600 kg / 1320 lbs | 650 kg / 1430 lbs |
| Passenger capacity (Canadian) | 4 | 4 | 5 | 5 |
| Passenger capacity (International) | 5 | 5 | 6 | 6 |
| Number of chambers | 3 | 3 | 3 | 3 |
| Engine recommended | 10 HP | 20 HP | 20 HP | 20 HP |
| Engine MAX | 20 HP | 30 HP | 30 HP | 30 HP |
| Engine weight MAX | 50 kg / 110 lbs | 60 kg / 132 lbs | 70 kg / 154 lbs | 70 kg / 154 lbs |
| Engine shaft length | 15″ (short) | 15″ (short) | 15″ (short) / 20″ upgrade | 15″ (short) / 20″ upgrade |
| Aluminum hull thickness | 2.5 mm / 7/64″ | 2.5 mm / 7/64″ | 2.5 mm / 7/64″ | 3 mm / 1/8″ |
| Boat design category | C | C | C | C |
