The S370N and S420N represent a generation of mid-size RIBs from GRAND.
Both models are based on the DART hull system with the following key features:

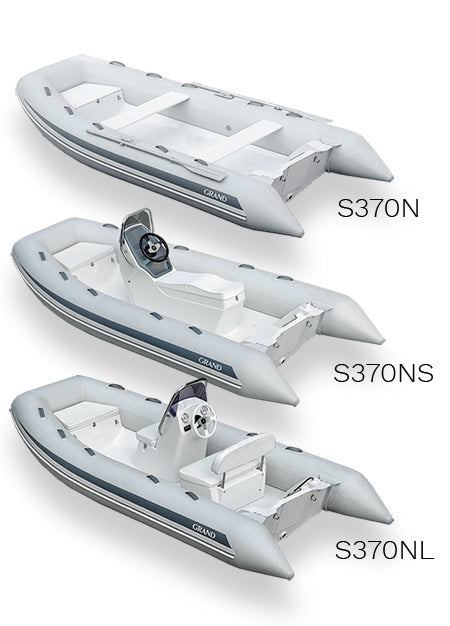

For the two model, 370 cm (12’ 2”) and 420 cm (13’ 9”), there are three versions available:
• The BASE version (S370N, S420N) — boat with 2 wooden seats and oars
• The SPORT version (S370NS, S420NS) — with (CS-01) SPORT console for the S370N, and a new (CS-03) console for the S420N

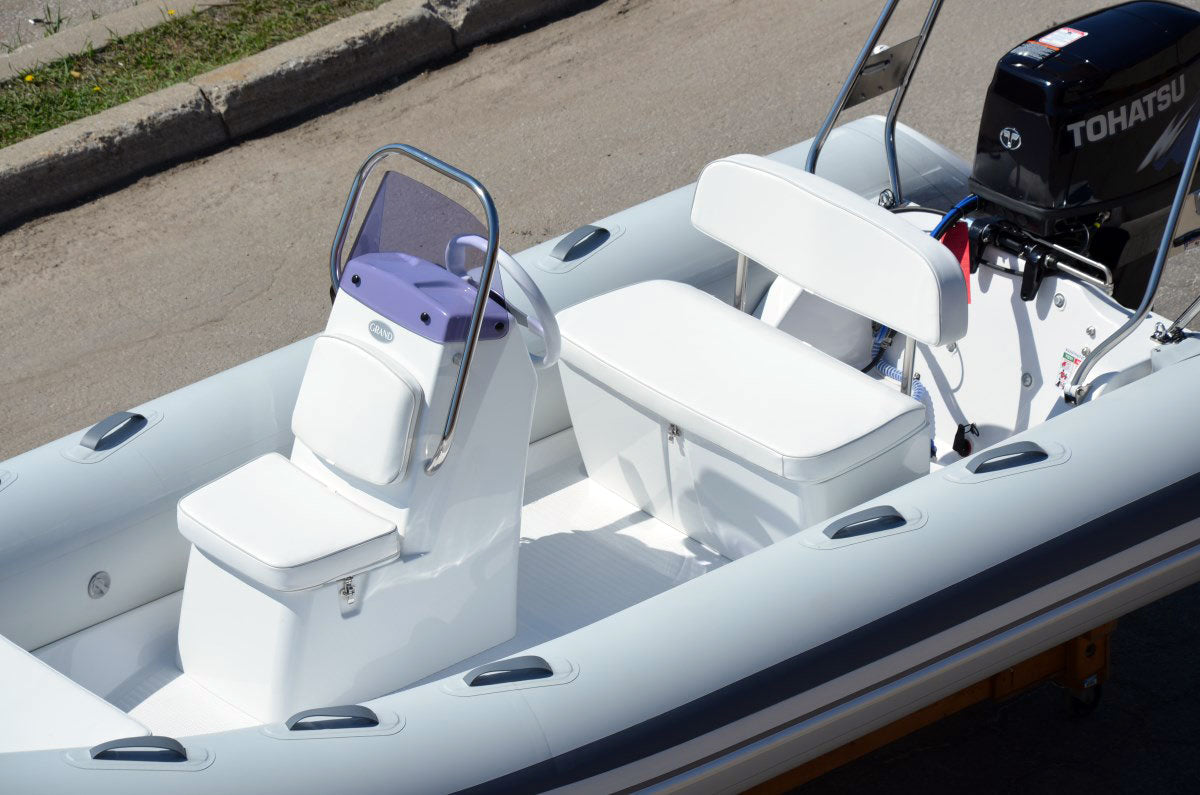

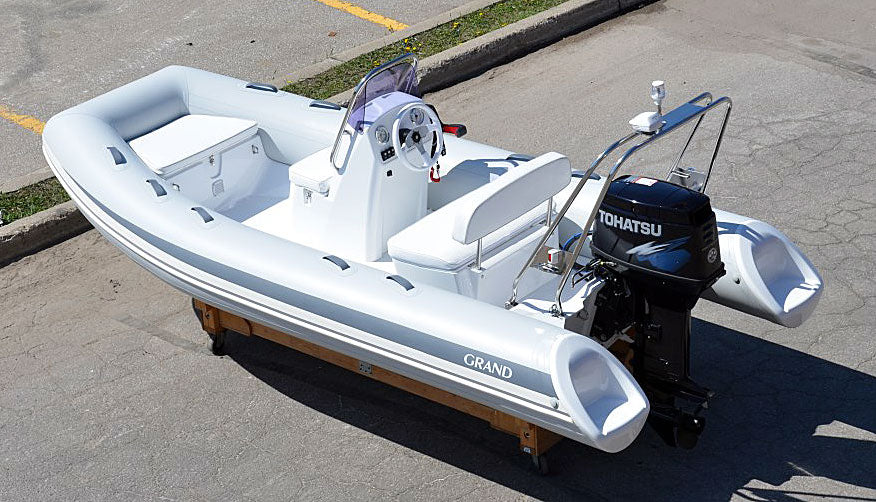

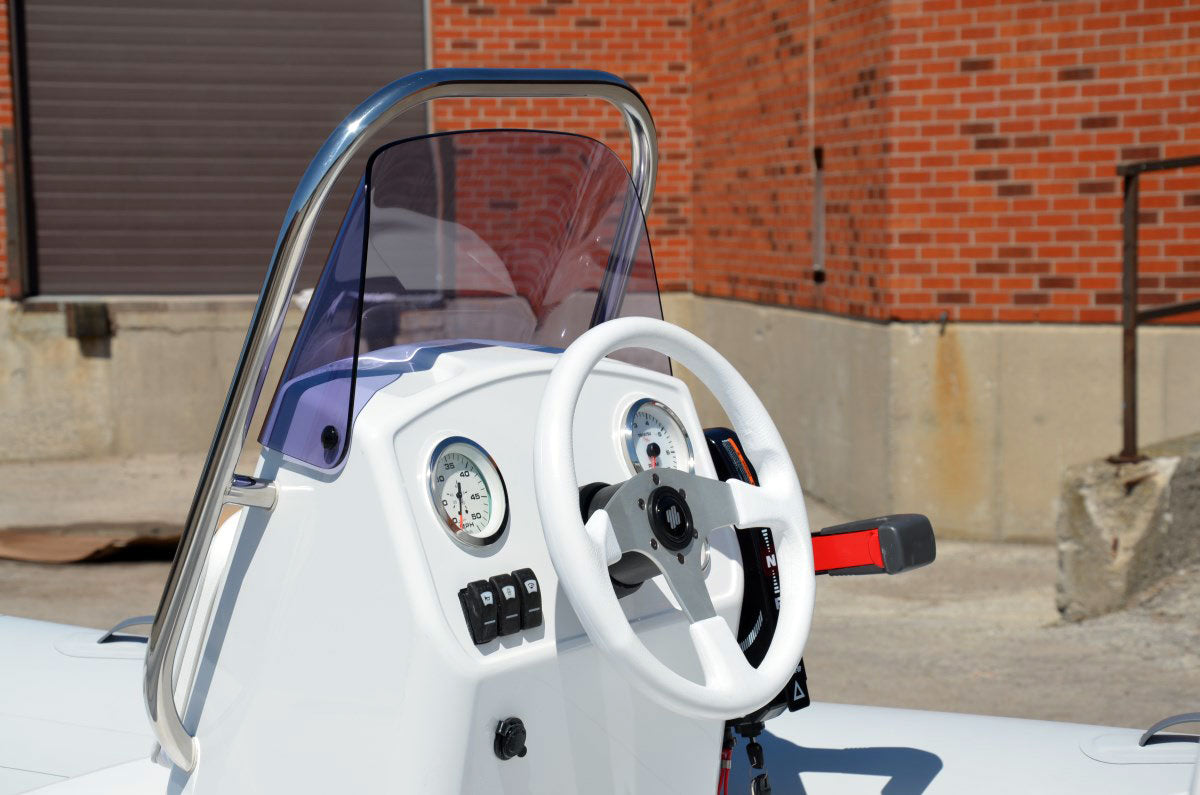

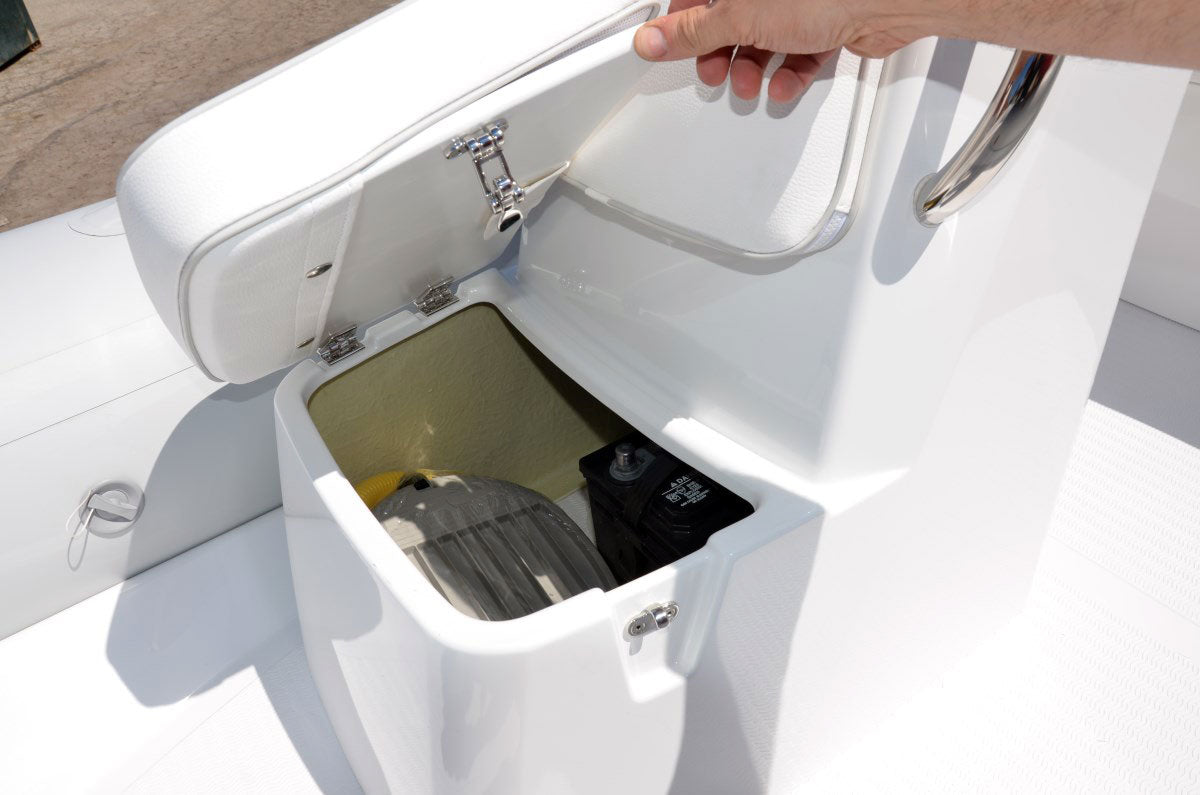

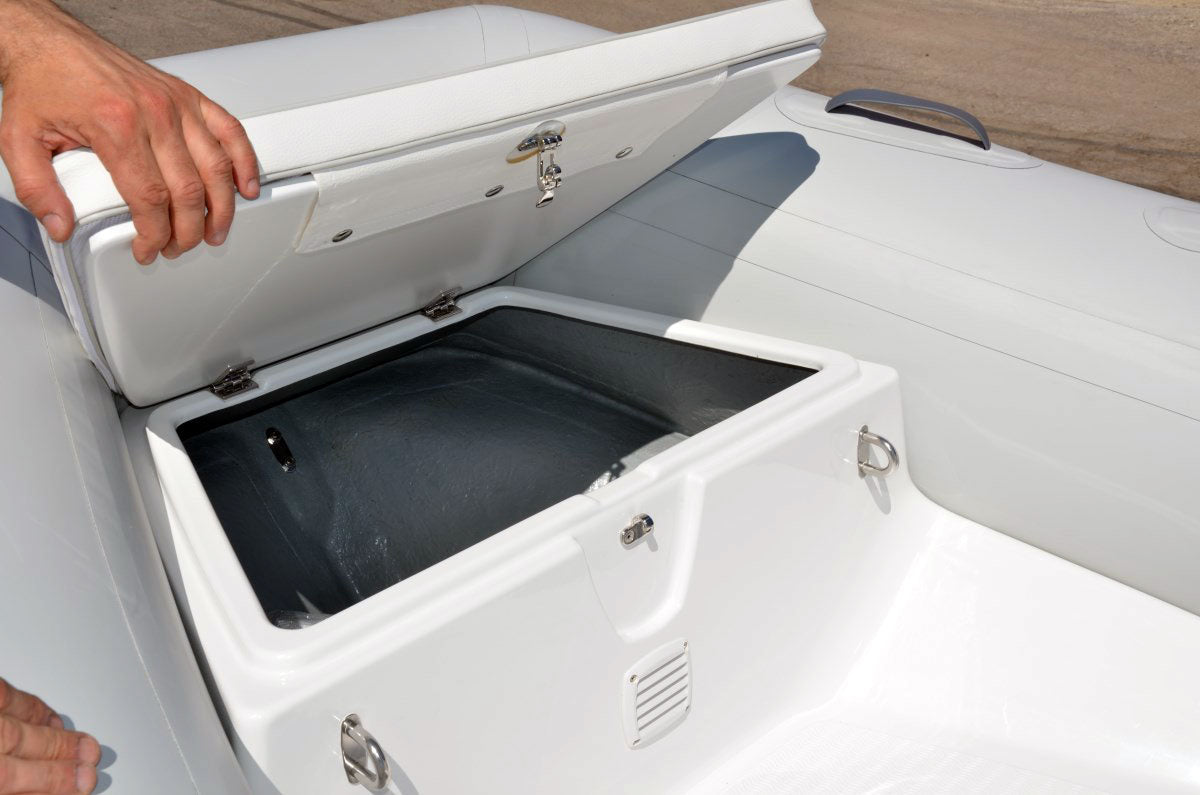

• The DELUXE version (S370NL, S420NL) — with a new (CL-11) DELUXE steering console and rear (SD-06) double seat with soft back and securable locker
Each model is available with either PVC or HYPALON buoyancy tubes.
|
Models |
S370N |
S370NS |
S370NL |
S420N |
S420NS |
S420NL |
|---|---|---|---|---|---|---|
| Length overall | 12’2″ | 12’2″ | 12’2″ | 13’9″ | 13’9″ | 13’9″ |
| Length inside | 8’10” | 8’10” | 8’10” | 10’2″ | 10’2″ | 10’2″ |
| Width overall | 6’1″ | 6’1″ | 6’1″ | 6’5″ | 6’5″ | 6’5″ |
| Width inside | 3’0″ | 3’0″ | 3’0″ | 3’4″ | 3’4″ | 3’4″ |
| Tube Diameter | 18″ | 18″ | 18″ | 18″ | 18″ | 18″ |
| Bare boat weight | 95 kg / 209 lbs | 120 kg / 264 lbs | 124 kg / 273 lbs | 115 kg / 253 lbs | 145 kg / 319 lbs | 145 kg / 319 lbs |
| Loading capacity | 600 kg / 1320 lbs | 600 kg / 1320 lbs | 600 kg / 1320 lbs | 700 kg / 1540 lbs | 700 kg / 1540 lbs | 700 kg / 1540 lbs |
| Passenger capacity | 5 | 5 | 5 | 8 | 8 | 8 |
| Number of chambers | 3 | 3 | 3 | 3 | 3 | 3 |
| Engine recommended | 25 HP | 25 HP | 25 HP | 40 HP | 40 HP | 40 HP |
| Engine MAX | 30 HP | 30 HP | 30 HP | 50 HP | 50 HP | 50 HP |
| Engine weight MAX | 80 kg / 176 lbs | 80 kg / 176 lbs | 80 kg / 176 lbs | 115 kg / 253 lbs | 115 kg / 253 lbs | 115 kg / 253 lbs |
| Engine shaft length | 15″ (short) | 15″ (short) | 15″ (short) | 20″ (long) | 20″ (long) | 20″ (long) |
| Boat design category | C | C | C | C | C | C |
