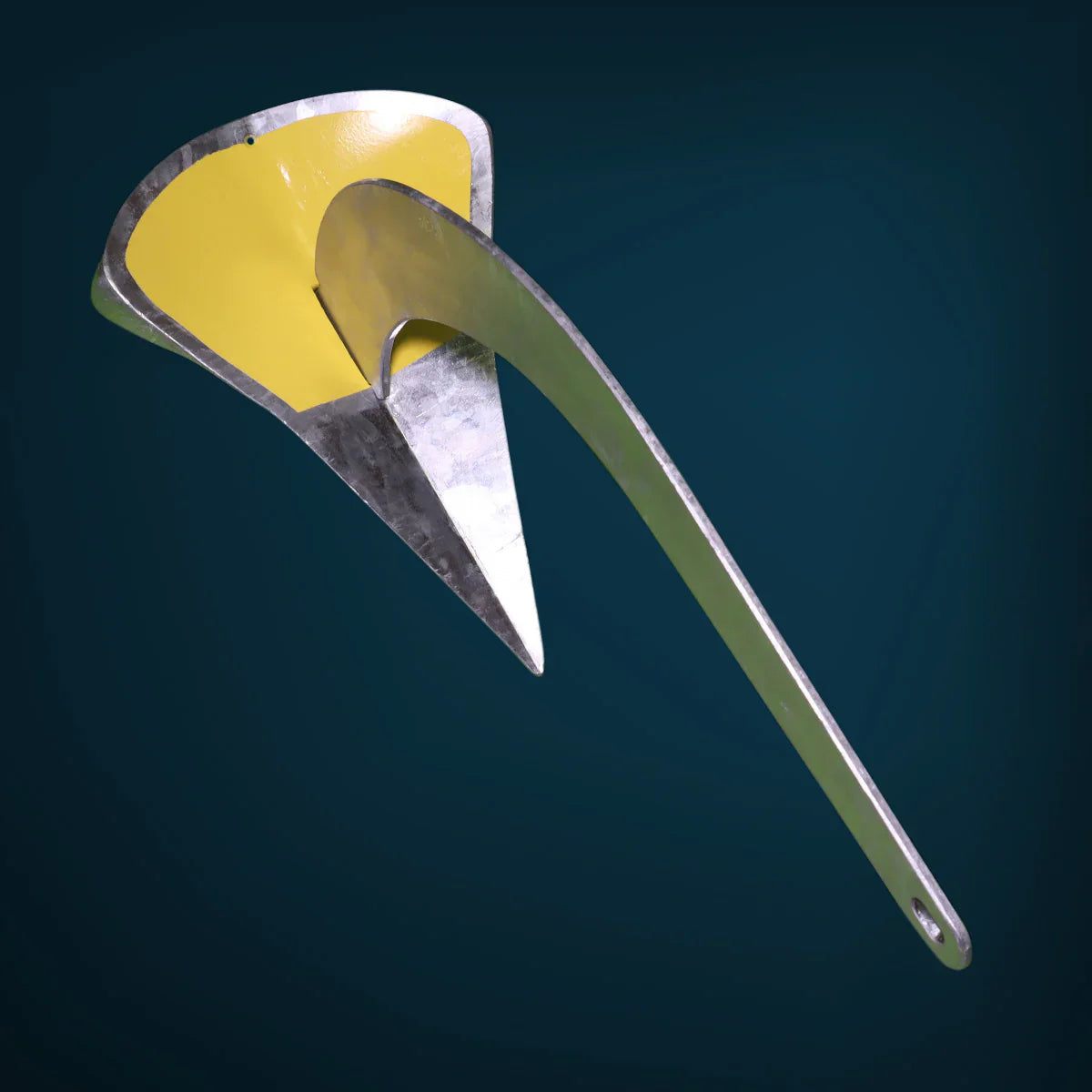

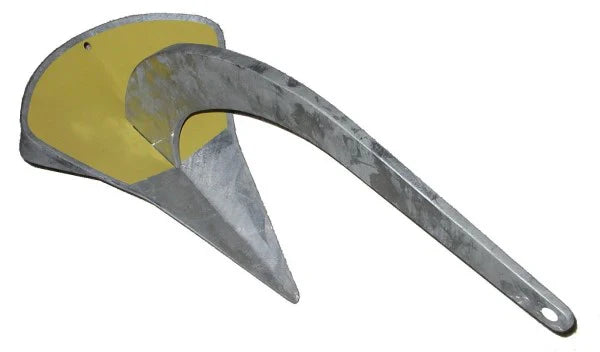

The Spade "S" anchors are workhorses! Made of hot-dipped galvanized steel, the S series will take abuse and keep on holding. Whether you are dropping your hook in the Caribbean, or Newfoundland, the S series is the anchor that will let you sleep at night knowing that you aren't going anywhere.
SPADE anchors dig deeply into the sea floor. Once they are within the sea floor, the concave shape of SPADE anchors is designed to compact the sea floor, and thus not to move! This is what makes the design so unique!
The Manufacturer of the SPADE anchor never refers to an anchor's weight in its selection process, but rather to its effective surface area. The remarkable efficiency of a SPADE anchor is due to the size, and shape, of its effective surface : SPADE anchors of the same surface area will have the same holding power, no matter the material of which they are made. Weight of S80 anchor is 33 Lbs.
The SPADE anchor is manufactured in three materials (Galvanized Steel, Aluminum, and Stainless Steel), and comes in a size for most boat up to mid-sized yachts. Hi-tensile steel versions are hot-dip galvanized. All SPADE anchors of the same size, regard less of the material they are made of, will work with the same efficiency.
| Product | Boat | Weight in kg | Surface area in cm2 |
|---|---|---|---|
| Spade S40 | < 6.50m < 1 tonne | 5.5 | 400 |
| Spade S60 | < 7.50m < 3.5 tonnes | 9.5 | 600 |
| Spade S80 | < 12.50m < 6.5 tonnes | 15 | 800 |
| Spade S100 | < 16.00m < 12 tonnes | 20 | 1000 |
| Spade S120 | < 18.00m < 16 tonnes | 25 | 1200 |
| Spade S140 | < 20.00m < 20 tonnes | 30 | 1400 |
| Spade S160 | < 23.00m < 23 tonnes | 35 | 1600 |
| Spade S180 | < 23.00m < 26 tonnes | 45 | 1800 |
| Spade S200 | < 25.00m < 30 tonnes | 55 | 2000 |
| Spade SQ240 | between 30 and 90 tonnes | 75 | 2400 |
| Spade SQ380 | between 55 and 150 tonnes | 110 | 3800 |
| Spade SQ520 | between 75 and 200 tonnes | 170 | 5200 |
| Boat Length | Boat Weight | Anchor Model | Galvanized & Stainless Weight | Aluminum Weight |
|---|---|---|---|---|
| 21 ft. | <2,200 lbs. | 40 | 12 lbs. | 6 lbs. |
| 24 ft. | <4,850 lbs. | 60 | 21 lbs. | 10 lbs. |
| 34 ft. | <9,920 lbs. | 80 | N/A | 15 lbs. |
| 41 ft. | <14,330 lbs. | 80 | 33 lbs. | N/A |
| 52 ft. | <26,450 lbs. | 100 | 44 lbs. | 26 lbs. |
| 59 ft. | <35,270 lbs. | 120 | 55 lbs. | N/A |
| 65 ft. | <44,000 lbs. | 140 | 66 lbs. | 41 lbs. |
| 75 ft. | <50,700 lbs. | 160 | 77 lbs. | N/A |
| 75 ft. | <57,300 lbs. | 180 | 99 lbs. | N/A |
| 82 ft. | <66,130 lbs. | 200 | 121 lbs. | 57 lbs. |
| 98 ft. | <88,100 lbs. | 240 | 165 lbs. | N/A |
| <330,900 lbs. | 380 | 243 lbs. | N/A |
