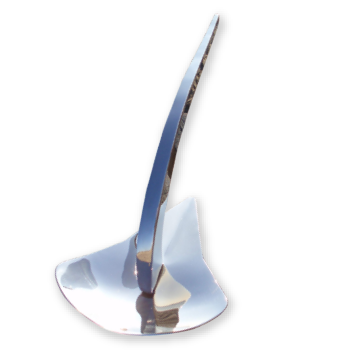

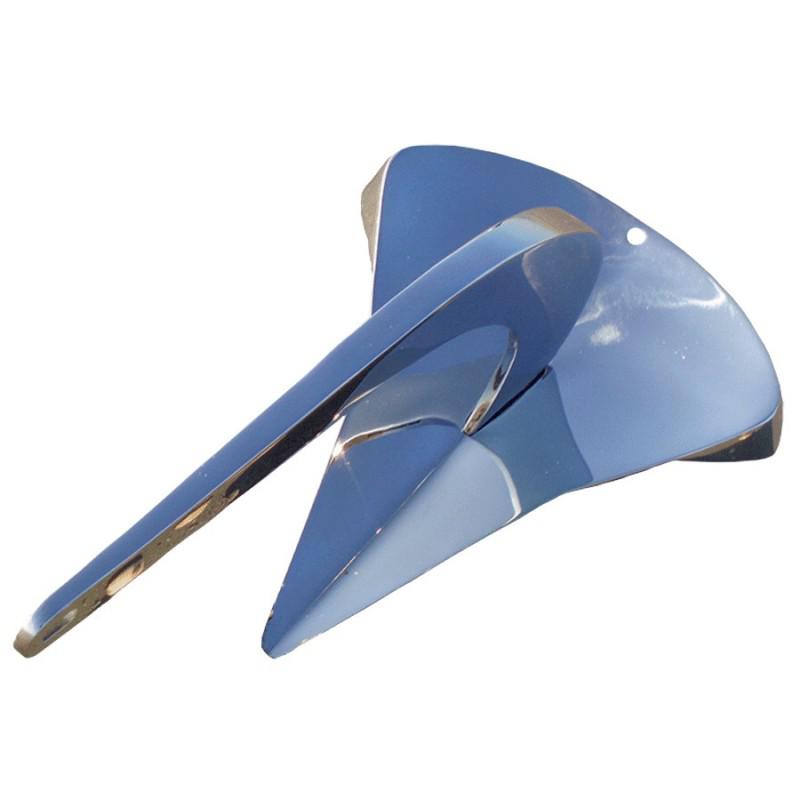

Spade Anchor's stainless steel boat anchor goes beyond superior form and function. These stainless anchors' polished finish makes them a gorgeous addition to your vessel. With a glossy and polished finish, these anchors blend with the rest of your boat's detailing for a cohesive look. Yet standout enough to be the star at the Marina. Beauty aside, these stainless-steel anchors are extremely durable. Constructed of 316L marine grade stainless steel. Their plow shape allows them to delve deep into the sea floor and hold tight for a powerful grip and a reliable hold. Able to cut through sand, mud, and coral, you'll relax knowing your boat is secure regardless of the weather or sea conditions. Bright yellow paint allows you to check how well the anchor is secured into the sea floor. Self-launching and self-retrieving, these stainless anchors are easy to use regardless of where you are docking. Weight of XHR520 anchor is 375 Lbs.
The SPADE anchor is manufactured in three materials (Galvanized Steel, Aluminum, and Stainless Steel), and comes in a size for most boat up to mid-sized yachts. Hi-tensile steel versions are hot-dip galvanized. All SPADE anchors of the same size, regard less of the material they are made of, will work with the same efficiency.
XHR steel: Special high strength stainless steel with the anchor welded in one single piece.
| Product | Boat | Weight in kg | Surface area in cm2 |
|---|---|---|---|
| Spade X40 | < 6.50m < 1 tonne | 5.5 | 400 |
| Spade X60 | < 7.50m < 3.5 tonnes | 9.5 | 600 |
| Spade X80 | < 12.50m < 6.5 tonnes | 15 | 800 |
| Spade X100 | < 16.00m < 12 tonnes | 20 | 1000 |
| Spade X120 | < 18.00m < 16 tonnes | 25 | 1200 |
| Spade X140 | < 20.00m < 20 tonnes | 30 | 1400 |
| Spade X160 | < 23.00m < 23 tonnes | 35 | 1600 |
| Spade X180 | < 23.00m < 26 tonnes | 45 | 1800 |
| Spade X200 | < 25.00m < 30 tonnes | 55 | 2000 |
| Spade XHR240 | between 30 and 90 tonnes | 75 | 2400 |
| Spade XHR380 | between 55 and 150 tonnes | 110 | 3800 |
| Spade XHR520 | between 75 and 200 tonnes | 170 | 5200 |
| Boat Length | Boat Weight | Anchor Model | Galvanized & Stainless Weight | Aluminum Weight |
|---|---|---|---|---|
| 21 ft. | <2,200 lbs. | 40 | 12 lbs. | 6 lbs. |
| 24 ft. | <4,850 lbs. | 60 | 21 lbs. | 10 lbs. |
| 34 ft. | <9,920 lbs. | 80 | N/A | 15 lbs. |
| 41 ft. | <14,330 lbs. | 80 | 33 lbs. | N/A |
| 52 ft. | <26,450 lbs. | 100 | 44 lbs. | 26 lbs. |
| 59 ft. | <35,270 lbs. | 120 | 55 lbs. | N/A |
| 65 ft. | <44,000 lbs. | 140 | 66 lbs. | 41 lbs. |
| 75 ft. | <50,700 lbs. | 160 | 77 lbs. | N/A |
| 75 ft. | <57,300 lbs. | 180 | 99 lbs. | N/A |
| 82 ft. | <66,130 lbs. | 200 | 121 lbs. | 57 lbs. |
| 98 ft. | <88,100 lbs. | 240 | 165 lbs. | N/A |
| <330,900 lbs. | 380 | 243 lbs. | N/A | |
| <440,925 lbs. | 520 | 375 lbs. | N/A |
