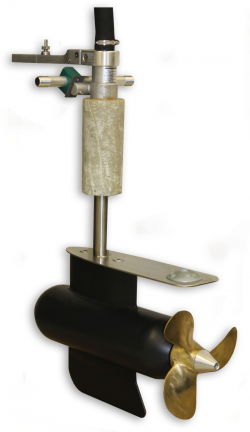

Steerable Pod Aquamot 20kW Professional Description:
Electric motor from Aquamot with a power of 20 kW is suitable for boats up to approximately 10 tons displacement. The E-motor from Aquamot is completely silent and 100% emission-free.
Safety thanks to electric boat motors
- Aquamot already has many years of experience and a broad dealer network in Germany, Austria and Switzerland.
- The motors have a 2-year manufacturer's warranty.
- Very robust. The Trend series from Aquamot consists of a lightweight aluminum housing.
- Durable in both salt and fresh water thanks to its seawater-resistant aluminum alloy.
- Lithium cells from internationally renowned brand manufacturers.
- Clean solution: no risk of leaking liquids such as oil.
Comfort in operating your e-motor
- Maximum smoothness thanks to slow-turning, gearless electric motors. 8 years after manufacture, the battery must be returned to an Aquamot Service Center for inspection.
- The display shows the battery status and information about the motor.
- Plug & Play connectors with intelligent circuitry in a high quality aluminium housing. No visible cables.
Technical details of the E-motor
- Unmatched overall efficiency according to the manufacturer.
- Trim: 4-position for the correct position in the water. With an optional toggle lever, the motor can be permanently raised.
- The motor is compatible with any steering system. (mono cable, hydraulic, cable circulation).
- Flow-optimised drive housing with minimum resistance and optimum flow conditions at the motor and downstream propeller.
- Aquamot offers many protective functions. Electronic protection against overcurrent, runaway protection, deep discharge, overvoltage, undervoltage and reverse polarity protection. Mechanical predetermined breaking point in case of grounding.
- The propeller of the Professional series is not included in the price.
- 100% maintenance free. All Aquamot motors are brushless three-phase asynchronous motors.
- Minimum immersion depths thanks to optimised anti-cavitation plate - prevents air from being sucked in.
Specifications:
| Input Power |
21.69 kW |
| Comparable Thrust |
40 PS |
| Output Power |
20 kW |
| Voltage |
96 V |
| Current |
225 A |
| Noise Level |
Almost silent |
| Rotations Per Minute |
1500 rpm |
| Weight |
56 kg |
| Display |
Battery monitor, Board computer with color display optional |
| Recuperation |
No |
| Speed Control |
Stepless |
| Saltwater Resistant |
Yes |
| Propeller |
Bronze |
|
Shafttype
|
No Shaft |
