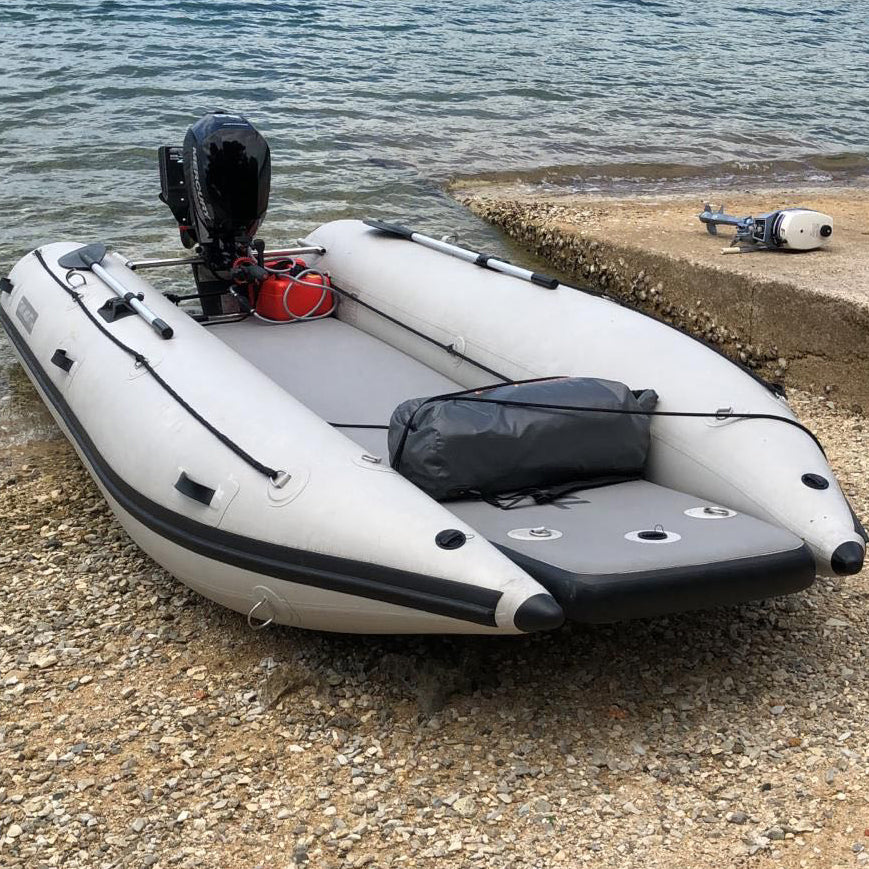

Takacat T420LX

Overview

As the largest boat in the Takacat LX series, the T420LX boasts oversized tubes and extra wide beam for added stability and plenty of room for family and friends. The removable Tube Transom® allows the boat to be packed down into bags with a surprisingly small storage footprint—especially for a boat this large—making it possibly one of the largest genuinely portable inflatable catamarans on the market. Four tube chambers and one floor chamber provide safety features the make the T420LX well suited to a wide variety of uses such as flood rescue, duck hunting, fishing, coach and support boats, and dive support boats. Boats are also available in select custom colors. Contact us for options.

Takacat T420LX Technical Specs

Get all the details and compare to discover the Takacat model that suits you best.

Boat Specifications:

Overall Length: 13' 9"

Width: 6'

Tube Diameter: 22"

Total Weight: 110 lbs

Rec. Outboard Engine: 15 HP

Max HP: 25 HP

Capacity: 7 people / 1576 lbs

Pack Down Dimensions:

Hull Bag Dimensions / Weight: 57" x 18" x 18" / 70 lbs

Transom Bag Dimensions / Weight: 35.5" x 14" x 10" / 40 lbs

Construction:

Tube Construction: 0.9mm, 1000 denier custom made PVC

Anti-UV Grade Tested: 4.5 out of 5 | ISO 4892-3:2006

Stainless Steel (304) Tube Transom: 2mm cross beams, 32mm and 25mm side tubes

Motor mount: 18mm thick boards (2 boards + spacer = 40 mm)

Transom Eye Bolt (316 Steel): 10mm thread
