The Ultralight 403 A will extend your trip, save your arms, help you fight currents and wind, get you to your favourite fishing spot quicker...it's basically your superhero for your kayak or canoe! It's light, waterproof and easy to use.

Have a question?

Talk with a technical expert.

  • Description
  • Features

Torqeedo Ultralight 403 A Description:

The Ultralight 403 A will extend your trip, save your arms, help you fight currents and wind, get you to your favourite fishing spot quicker...it's basically your superhero for your kayak or canoe! It's light, waterproof and easy to use.

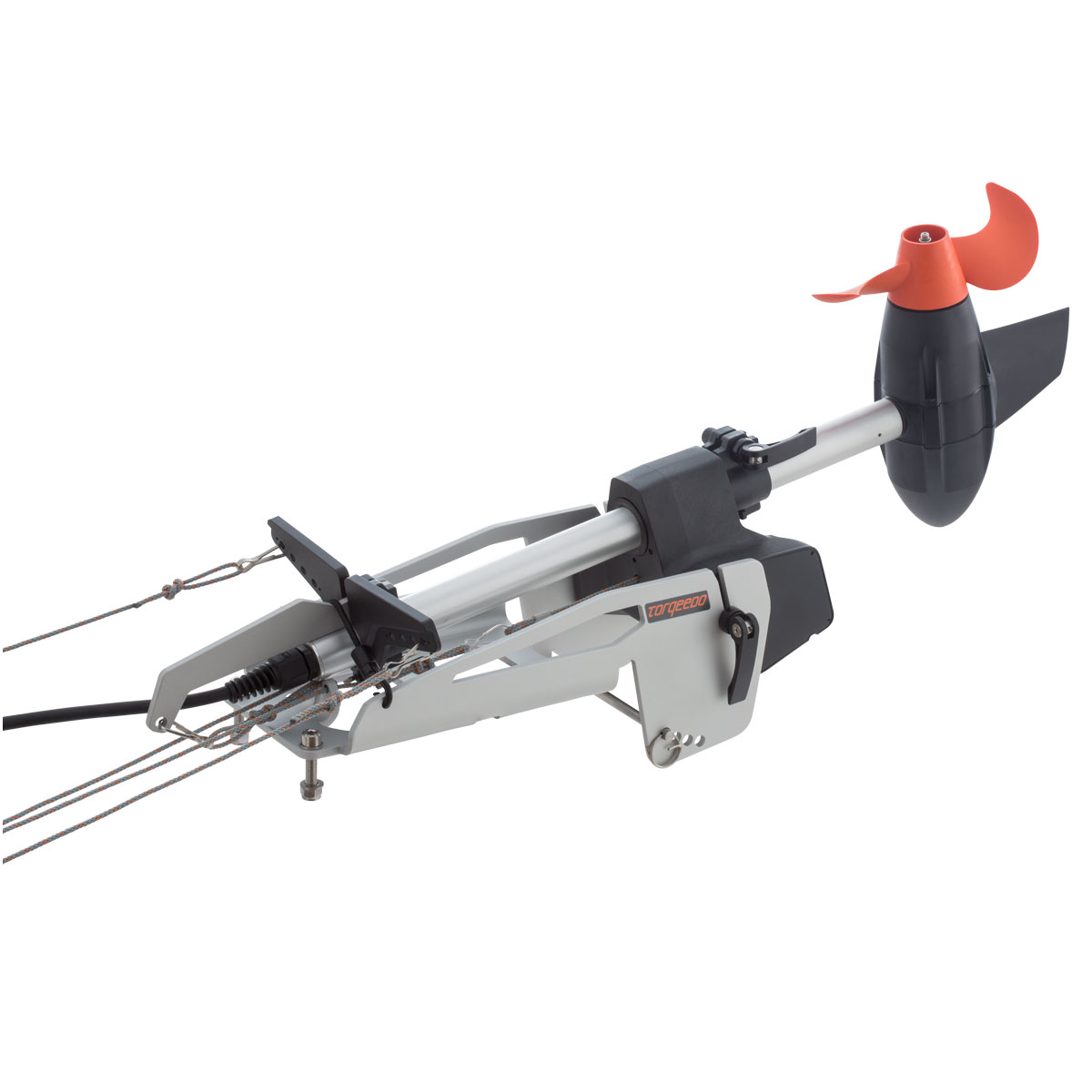

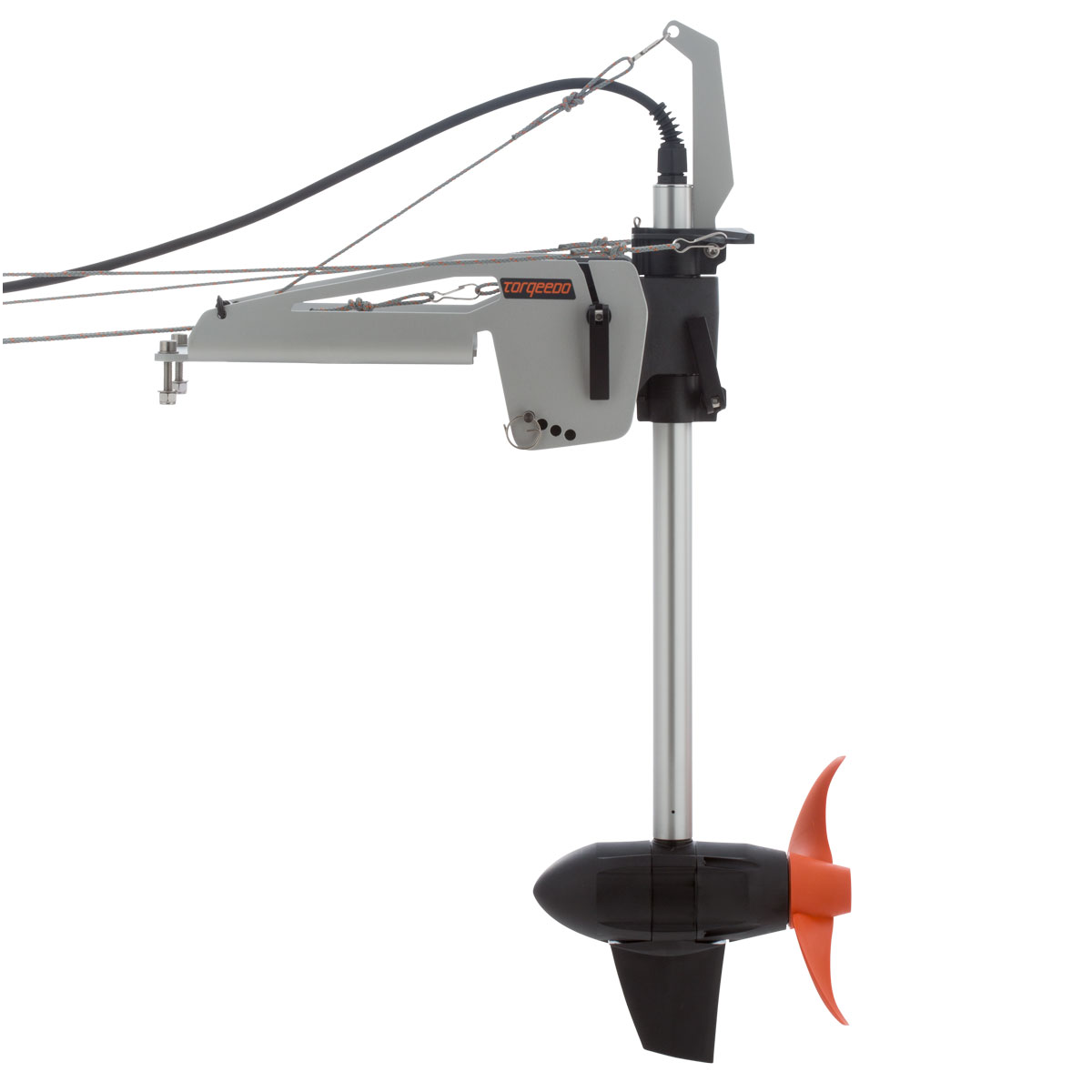

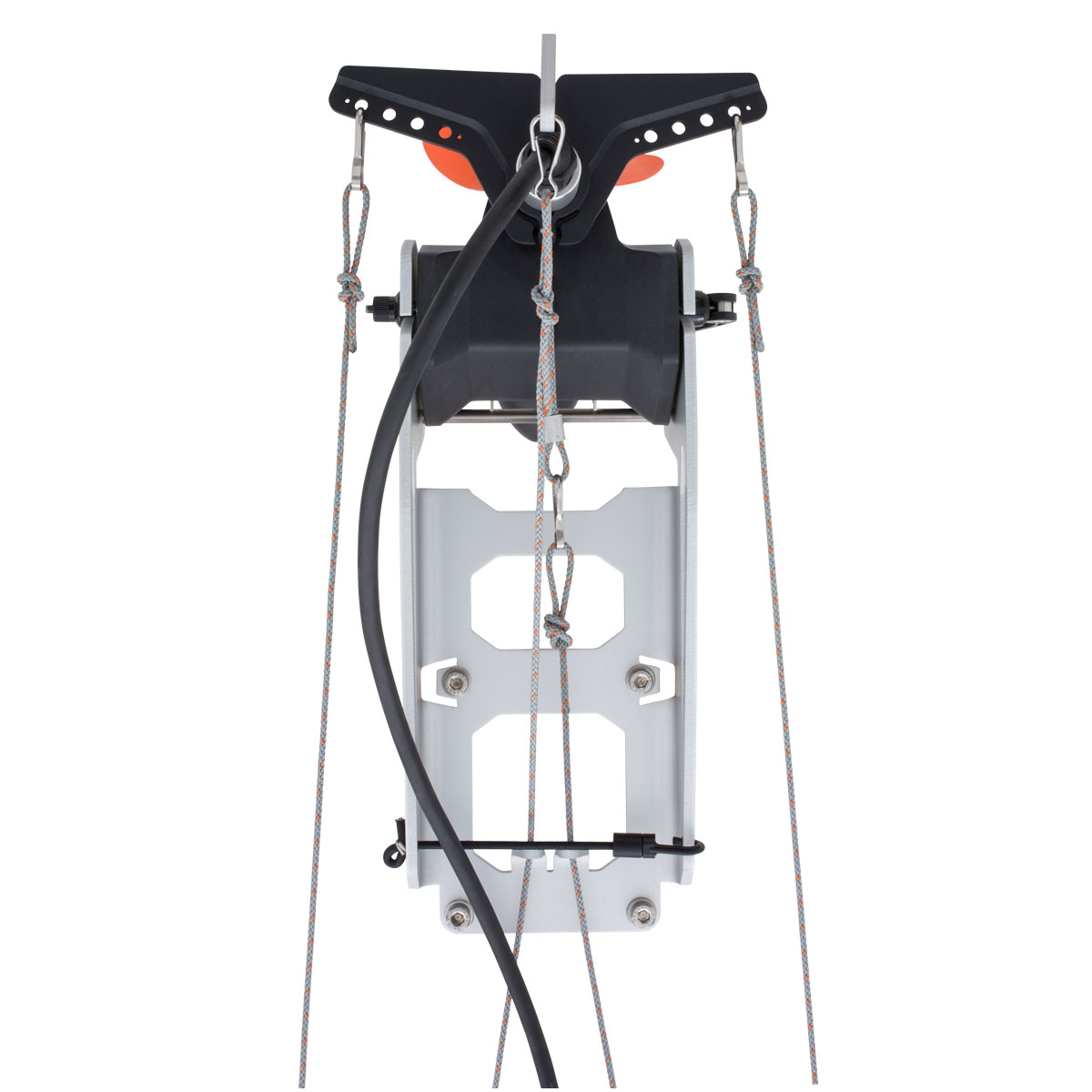

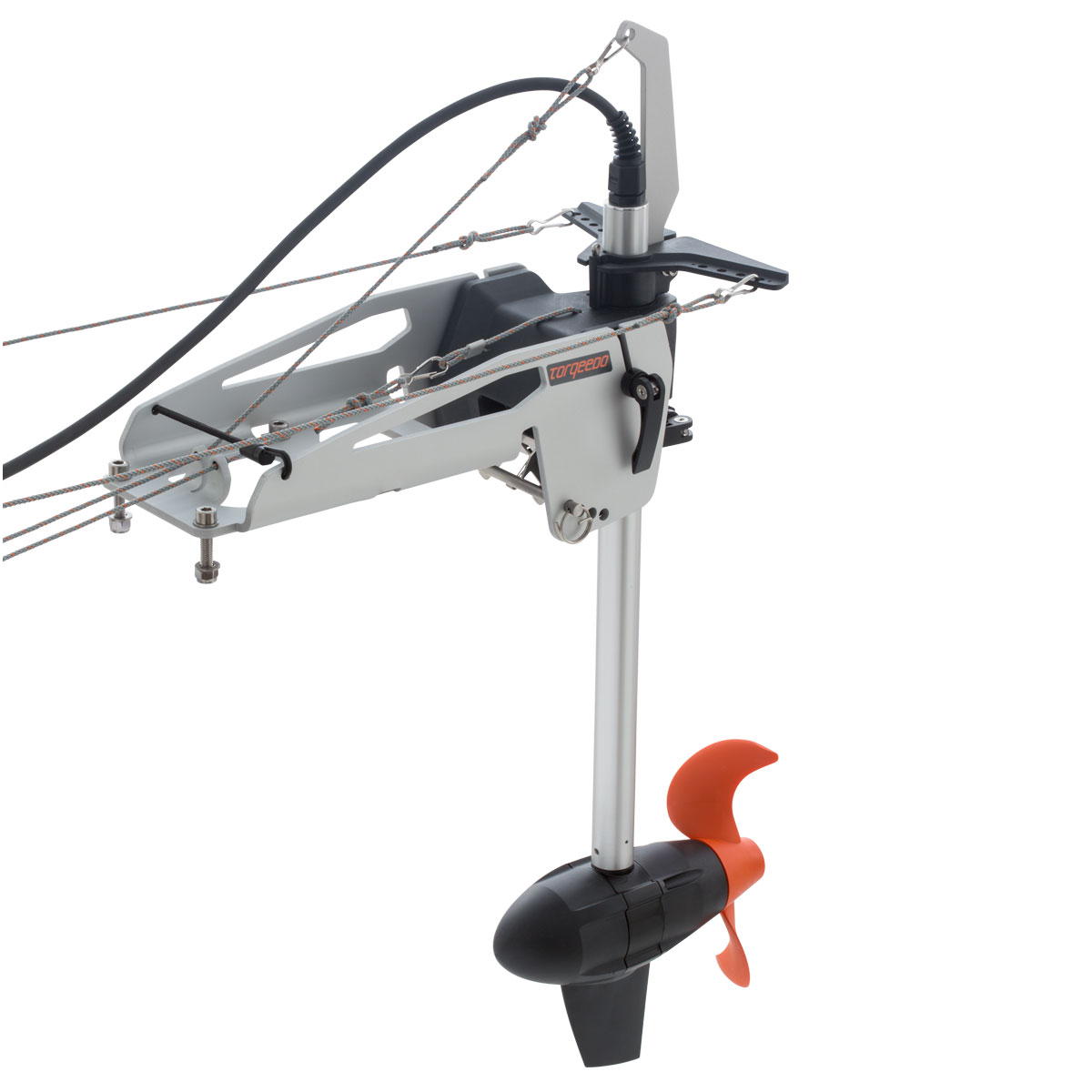

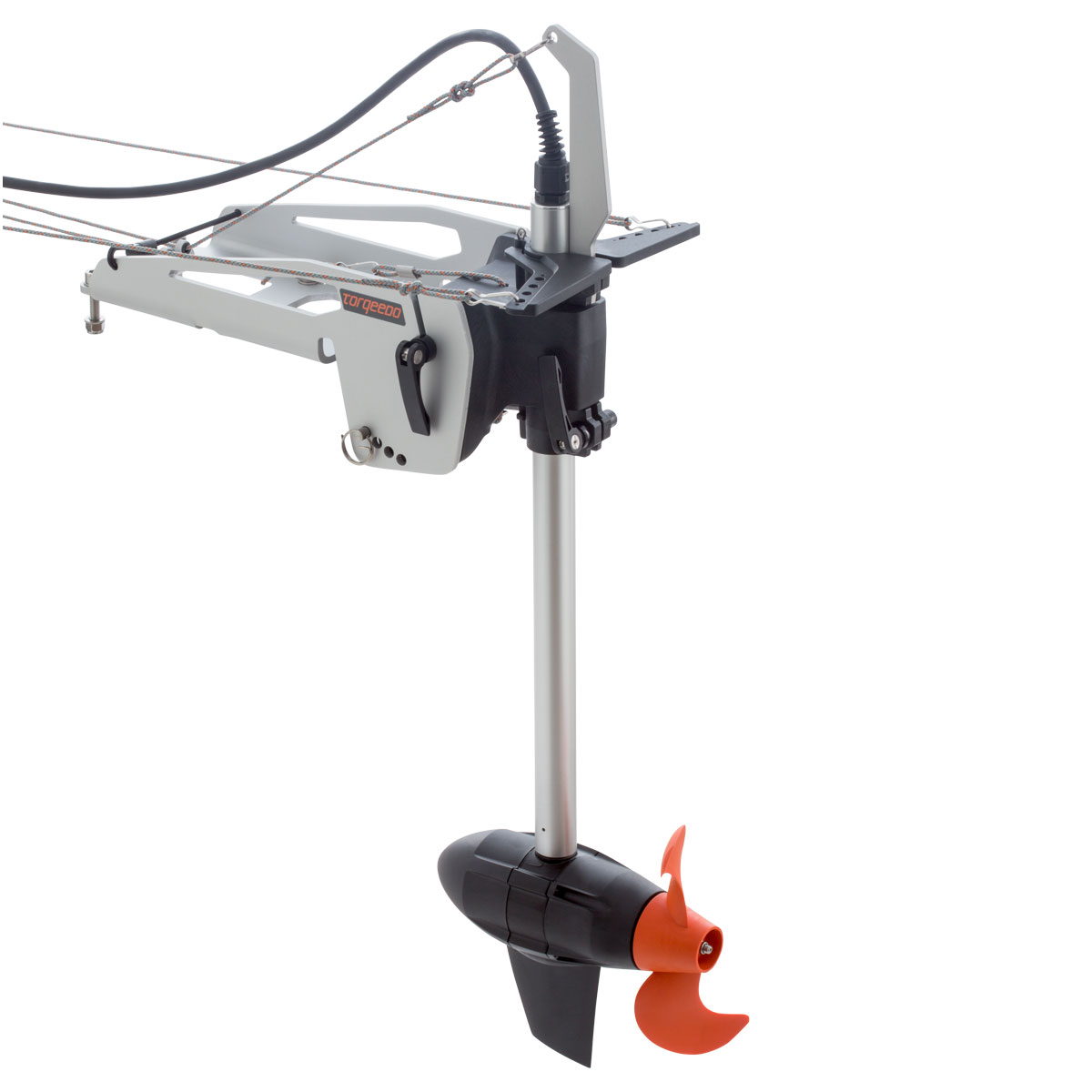

  • Innovative new angler mount

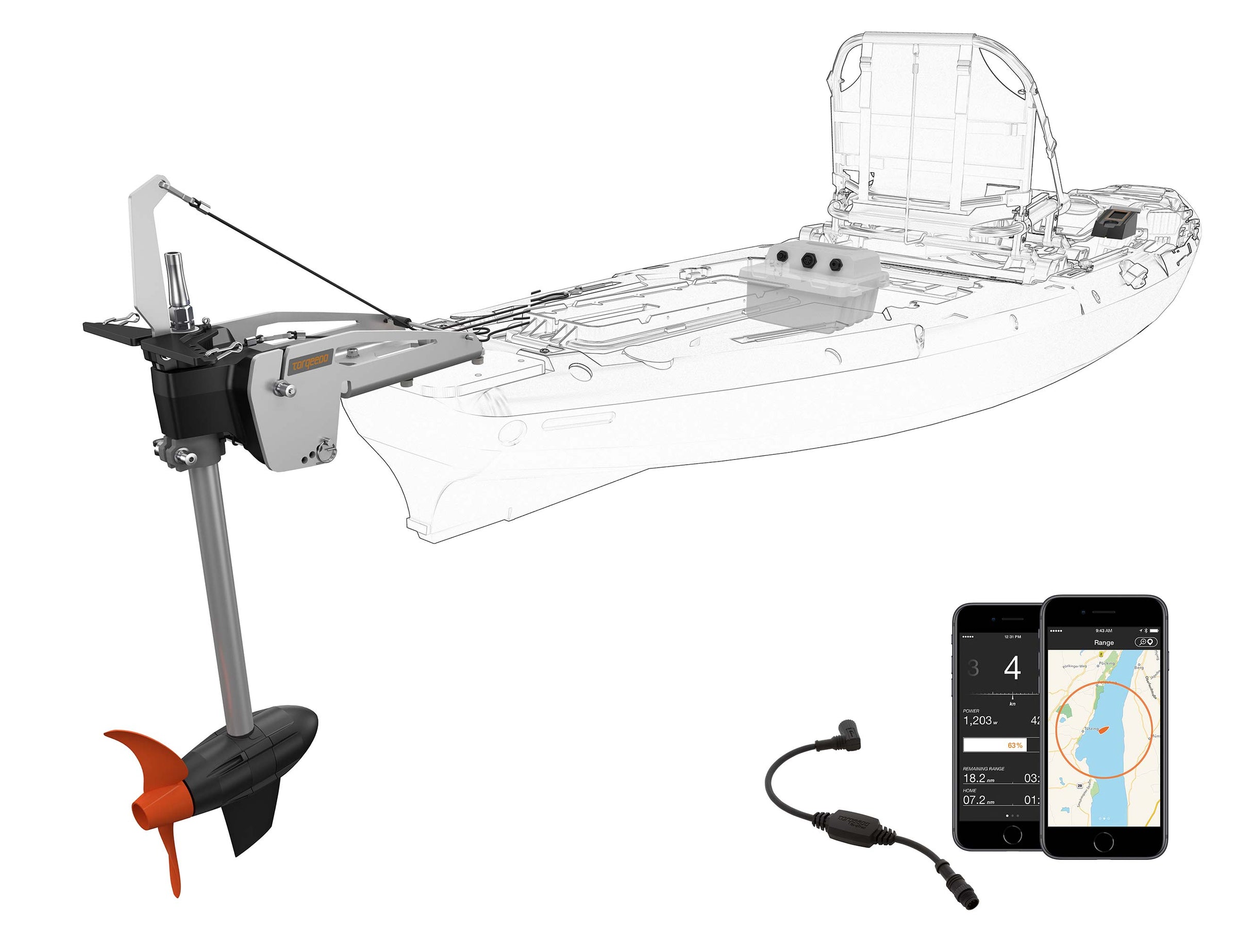

  • Easy to mount on fishing kayaks
  • 1-hp equivalent
  • With integrated 320 Wh high-performance lithium battery
  • Comes with charger, remote throttle, on-board computer, GPS-based range calculation, emergency magnetic stop key and bag
  • Steering /tilting /auto-kickup – easy integration with your kayak's steering system
  • Extended navigation functions of the on-board computer with TorqTrac (not included)
  • Up to 32 km range

Safety of the Torqeedo Ultralight 403 A

Emergency stop magnetic chip: If the chip is removed, the motor stops immediately for your safety.

A clean affair: With the Ultralight model, no matter how you store the engine, you have the advantage that nothing leaks and no unpleasant smell of gasoline. Motor and battery are completely waterproof (IP 67). A manual tilting device and an aluminum pylon protect the engine from impact damage and improve robustness. The integrated LCD display on the remote control provides information on range, speed and battery status thanks to the on-board computer with GPS.

Torqeedo Ultralight 403 A - Simple operation

Is comparable to a 1 HP gasoline outboard, only much more environmentally friendly, quieter, lighter and more comfortable The assembly takes place within few handles simply and uncomplicated at the stern of tender, dinghy or dinghy. The infinitely variable speed control ensures efficient power consumption. The control is possible forwards and backwards thanks to the comfortable throttle lever. Improved mirror mountings ensure the safe mounting of the rear engine. An integrated battery that can be stored in the boat with a comfortable carrying handle and a foldable tiller for easy transport. The engine without battery weighs only 11.3 kg.

Range of the Torqeedo Ultralight 403 A

Travel time and range depend on the battery. In an example with the Ultralight 403 and the 320-Wh battery, we have the following readings:

  • At half power, the pleasure of sailing lasts for about 1.5 hours on the water with a cruising speed of 7.2 km/h and a range of 11.5 km. If you plan longer and more comfortable tours on the water, you will even get a lot further with less power.
  • With 1/4 of the power, a speed of 5.3 km/h was reached for 3:20 hours. All in all a range of 17 km. And that with only one battery charge.

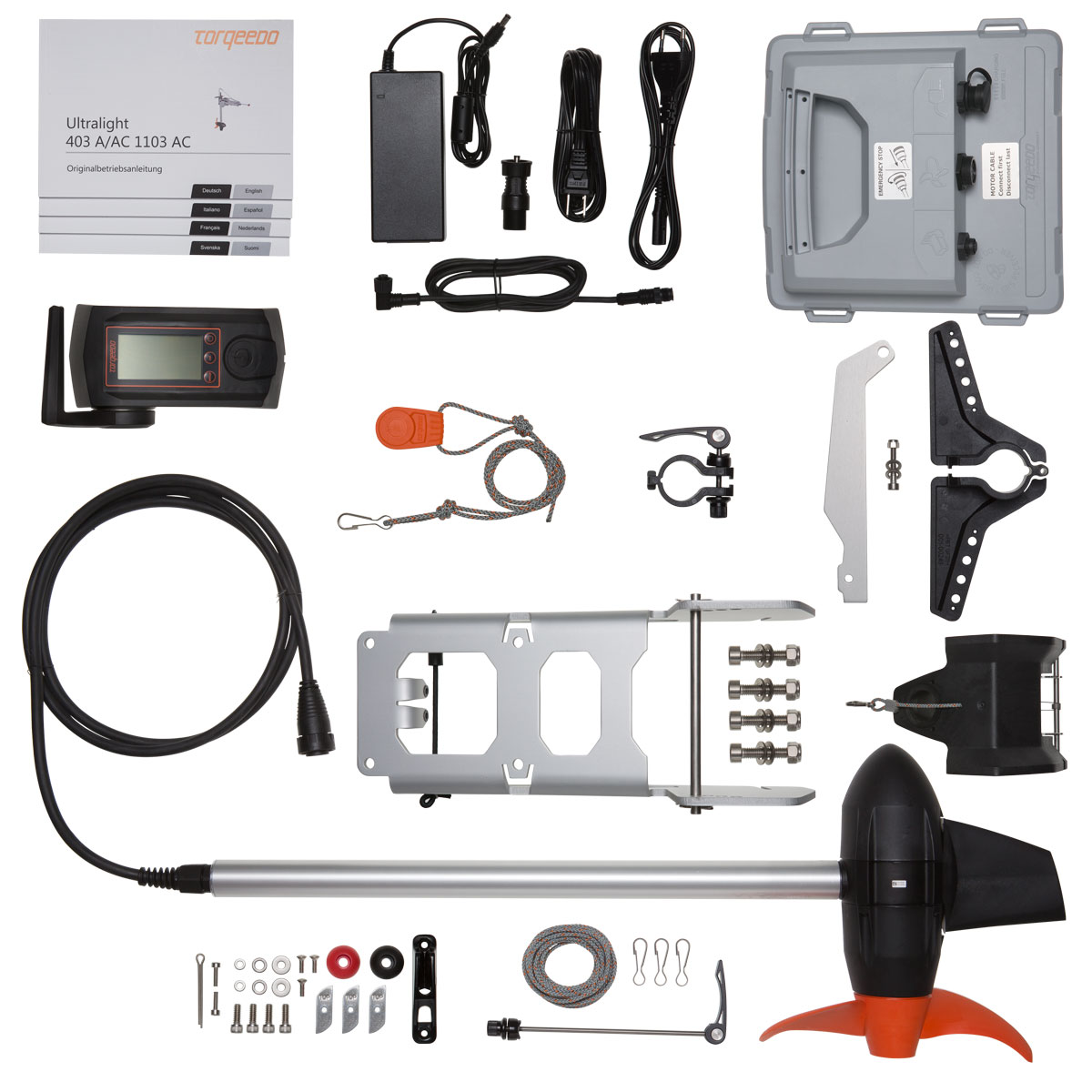

Equipment included: Ultralight 403 A with charger, remote throttle, on-board computer, GPS-based range calculation, emergency magnetic stop key and bag, 320 Wh battery

 Range Estimates



Speed in km/h* Range in km* Running time in hours
Slow 4.2 35. 08:20
Half throttle 6.0 25.0 04:10
Full throttle 9.3 7.4 00:48


Technical Data Ultralight


Input power in watts 400
Propulsive power in watts 180
Comparable petrol outboards (propulsive power) 1 HP
Comparable petrol outboards (thrust) 2 HP
Maximum overall efficiency in % 45
Static thrust in lbs* 33
Integrated battery 320 Wh Li-Ion
Nominal voltage 29.6
Final charging voltage 33.6
Total weight in kg 8.8
Motor weight without battery in kg 5.0
Weight of integrated battery 3.8
Shaft length in cm 48
Standard propeller
(v = speed in km/h at p = power in watts)
v10/p350
Alternative propeller options -
Maximum propeller speed in rpm 1,200
Control Throttle
Steering Provision to connect to kayak rudder; lockable
Tilting device Manual with grounding protection
Trim device Manual, 4-step
Stepless forward/reverse drive Yes
Integrated on-board computer Yes



Warranty: 2 years for non-commercial use

  • Low weight - only 17.3 kg ensure easy handling on board.
  • The motors are absolutely maintenance-free.
  • The Ultralight 403 is, in contrast to the Ultralight 1103 C not completely silent. Due to the transmission, a slight whistling sound is produced. The engine is nevertheless significantly quieter than combustion engines.
  • Scope of delivery: Ultralight 403 C with battery, charger, remote throttle & emergency stop magnetic chip
  • Thanks to the brushless DC motor, the motor achieves high overall efficiency.
  • Powerful lithium-ion battery provides a long range
