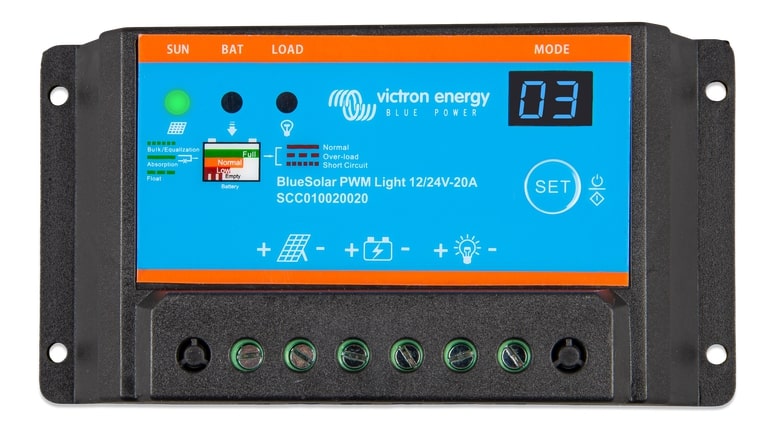

| Model | 12/24-5 | 12/24-10 | 12/24-20 | 12/24-30 |
|---|---|---|---|---|
| Battery Voltage | 12/24 V with automatic system voltage detection | |||
| Rated charge current | 5A | 10A | 20A | 30A |
| Automatic load disconnect | Yes | |||
| Maximum solar voltage | 28V / 55V | |||
| Self-consumption | < 10 mA | |||
| Load output | Manual control + low voltage disconnect | |||
| Protection | Battery reverse polarity (fuse), Output short circuit, Over temperature | |||
| Overload protection | Shut down after 60 s in case of 130% load Shut down after 5 s in case of 160% load Short circuit: immediate shut down |
|||
| Grounding | Common positive | |||
| Operating temp. range | -20 to +50°C (full load) | |||
| Humidity (non-condensing) | Max 95% | |||
| Battery | ||||
| Charge voltage 'absorption' | 14.2V / 28.4V | |||
| Charge voltage 'float' | 13.8V / 27.6V | |||
| Low voltage load disconnect | 11.2V / 22.4V | |||
| Low voltage load reconnect | 12.6V / 25.2V (manual) 13.1V / 26.2V (automatic) |
|||
| Enclosure | ||||
| Protection class | IP20 | |||
| Terminal size | 5 mm² / AWG10 | |||
| Weight | 0.15kg | 0.2kg | 0.2kg | 0.2kg |
| Dimensions (h x w x d) | 70 x 133 x 33.5 mm (2.8 x 5.3 x 1.3 inch) | |||
