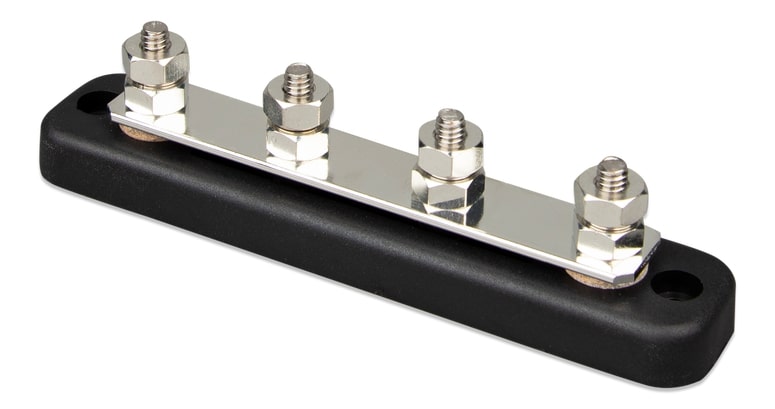

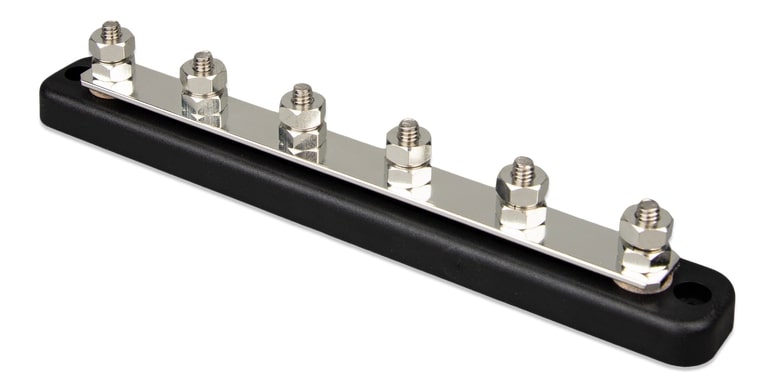

Victron Busbar 150A
- Regular Price
- $32.00 CAD
- Sale Price
- $32.00 CAD
- Regular Price
- Unit Price
- Translation missing: en.general.accessibility.unit_price_separator
Sold Out
Shipping calculated at checkout.
Victron Busbar 150A Description:
Busbars are used for high current distribution and at the same time they provide connections for batteries and/or DC equipment.
We offer a number of busbars with different current ratings, and a different number of connection terminals. Each busbar is fitted out with a removable protection cover.
| Victron Busbar | 150A |
|---|---|
| Max. Current | 150 A |
| Max. Voltage | 70 VDC |
| Terminal Diameter | ¼ inch / 6.35 mm |
| Terminal Height | 0.67 inch / 17 mm |
| Terminal Material | Stainless Steel |
| Hex Nut Material | Tin-plated Copper |
| Recommended Torque | 60 lbf·inch / 7 N·m |
| Busbar Strip Material | Tin-plated Copper (1.4 x 18 mm) |
| Base Material | ABS, black, UL 94 V-0 |
| Cover Material | Clear Polycarbonate, UL 94 HB |
| Weight (4 terminals) | 0.4 lb / 0.2 kg |
| Dimensions (hxwxd) (with cover, 4 terminals) | 1.8 x 6.0 x 1.25 inch (45 x 152.4 x 31.8 mm) |
| Weight (6 terminals) | 0.6 lb / 0.27 kg |
| Dimensions (hxwxd) (with cover, 6 terminals) | 1.8 x 9.1 x 1.25 inch (45 x 231.7 x 31.8 mm) |
