Victron Busbar 250A Description:
Busbars are used for high current distribution and at the same time they provide connections for batteries and/or DC equipment.
We offer a number of busbars with different current ratings, and a different number of connection terminals. Each busbar is fitted out with a removable protection cover.
Victron Busbar |
250A |
Max. Current Rating |
250 A |
Max. Voltage Rating |
70 VDC |
Terminal Diameter |
5/16 inch / 8 mm |
Terminal Height |
0.67 inch / 17 mm |
Terminal Material |
Stainless Steel |
Hex Nut Material |
Tin-plated Copper |
Recommended Torque |
110 lbf·inch / 13 N·m |
Busbar Strip Material |
Tin-plated Copper (5 x 24 mm) |
Base Material |
ABS, black, UL 94 V-0 |
Cover Material |
ABS, black, UL 94 V-2 |

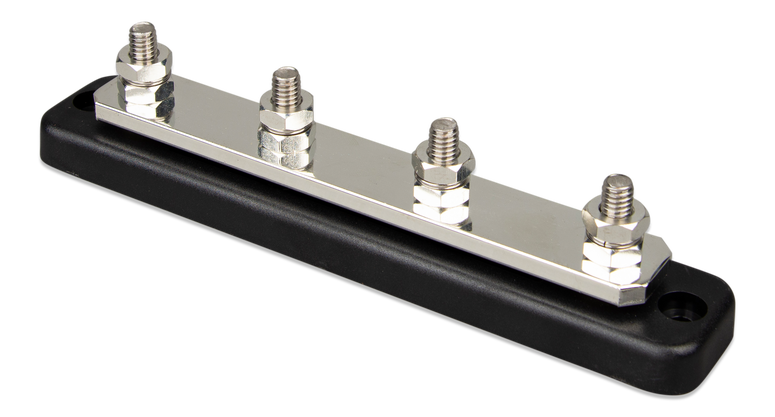

Weight (4 terminals) |
0.5 lb / 0.24 kg |
Dimensions (hxwxd) (with cover, 4 terminals) |
1.9 x 9.4 x 2.8 inch (48 x 237 x 70 mm) |

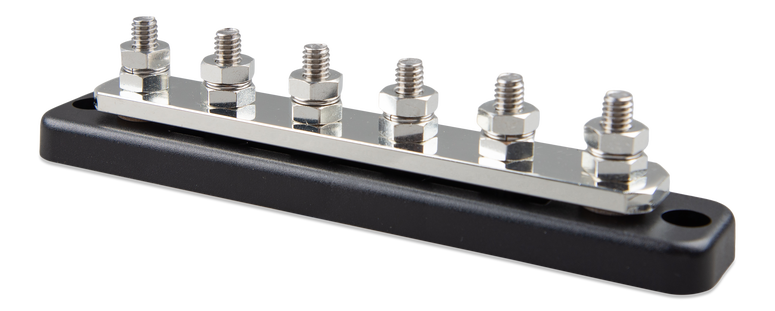

Weight (6 terminals) |
1.0 lb / 0.43 kg |
Dimensions (hxwxd) (with cover, 6 terminals) |
1.9 x 9.4 x 2.8 inch (48 x 237 x 70 mm) |
