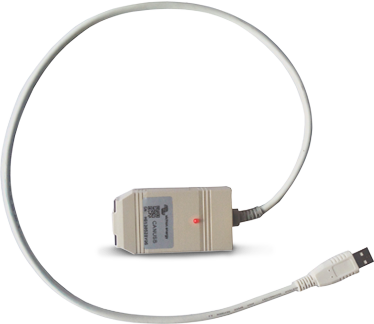

Victron CANUSB Interface

The CANUSB interface is used to connect a VE.Can product to a computer.

The VE.Can network requires at least one product present that powers the
network. The CANUSB does not power the network: to use the CANUSB, make
sure at least one other connected product does power the VE.Can network.
Products that power the network are:

• Skylla-i
• BlueSolar Charger MPPT 150/70
• Lynx Shunt VE.Can

Products that do not power the network are:

• Skylla-i Control GX
• Ion Control
• Lynx Ion (1)
• BMV to NMEA2000 interface (2)

• VE.Bus to NMEA2000 interface (2)

(1) The Lynx Ion does not support firmware updating via VE.Can. Use the
onboard USB connection instead. See instruction document, available on
request.
(2) The BMV and VE.Bus to NMEA2000 interfaces do not have a VE.Can (RJ-45)
socket. In order to connect them to the CANUSB or another VE.Can product,
use the VE.CAN to NMEA2000 Micro-C male cable, part number
ASS030520200.
