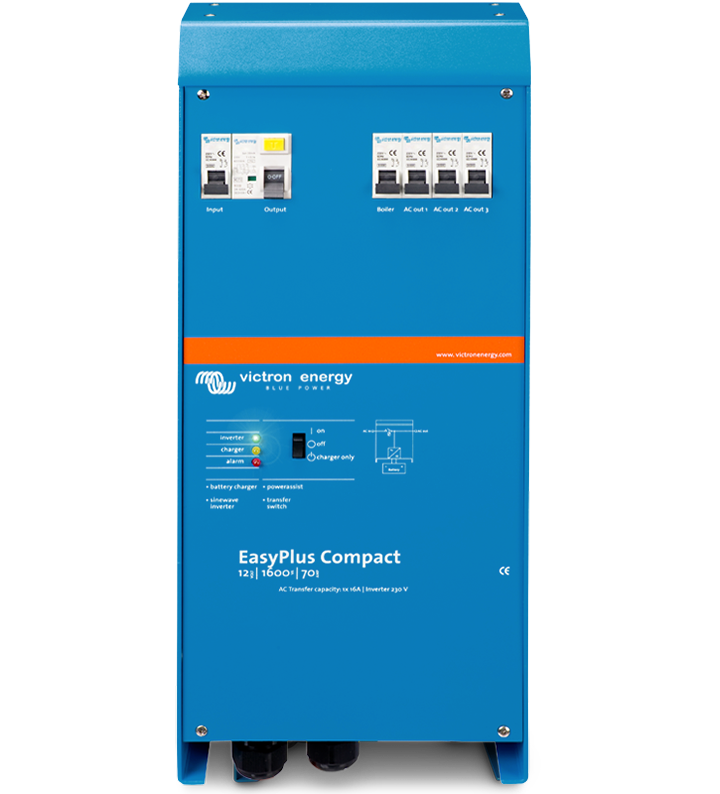

Victron EasyPlus

Multi-functional power solution
The EasyPlus is a multifunctional energy system consisting of a powerful
sine wave inverter, a sophisticated battery charger, a high speed AC transfer
switch and AC distribution in a single light weight and compact enclosure.
The system has been designed for those who want to enjoy the comfort
and freedom of a complete energy system without spending time on the
installation of separate components and difficult technical procedures

Optimum comfort and safety
The EasyPlus guarantees uninterrupted power supply, whenever and wherever
you are. Where shore or generator power is limited, the unique PowerAssist®
technology makes it possible to boost the total capacity by adding extra
energy from the batteries. Optimum safety is guaranteed with the integrated
RCD (Residual Current Device) protecting against earth leakage.

The EasyPlus is connected to the batteries and to the shore power or generator. The maximum available generator or shore current is set using the dial on the control panel. The power consumers are divided into two groups. The first group consists of the ‘regular’, low or short term power users such as sockets or kitchen equipment. This group can be fed from both shore/generator and battery power via the inverter. The second group is the ‘heavy user’ circuit. This can be a water heater or the air-conditioning. In order to protect the batteries from excessive discharge, this group is shore/generator-only and cannot be supplied when the inverter is functioning. Unique PowerAssist® technology protects the shore or generator from being overloaded by adding extra inverter power when needed.

12 Volt 1600 VA sine wave inverter (3000 Watt peak power).

70 A charger incl. 4 A trickle charge for start battery.

Unique PowerAssist® technology protects the shore or generator from being overloaded by adding extra inverter power when needed.

4 Stage adaptive charge technology for quick and accurate battery charging.

The AC distribution consists of a RCD (30mA/16A) and four AC outputs protected by two 10 A and two 16 A circuit breakers.

One 16 A output is controlled by the AC input: it will switch on only when AC is available. RCD (30 mA/16 A) on AC output.

No-break system: uninterrupted switching between shore/generator and inverter. Battery cables included.
