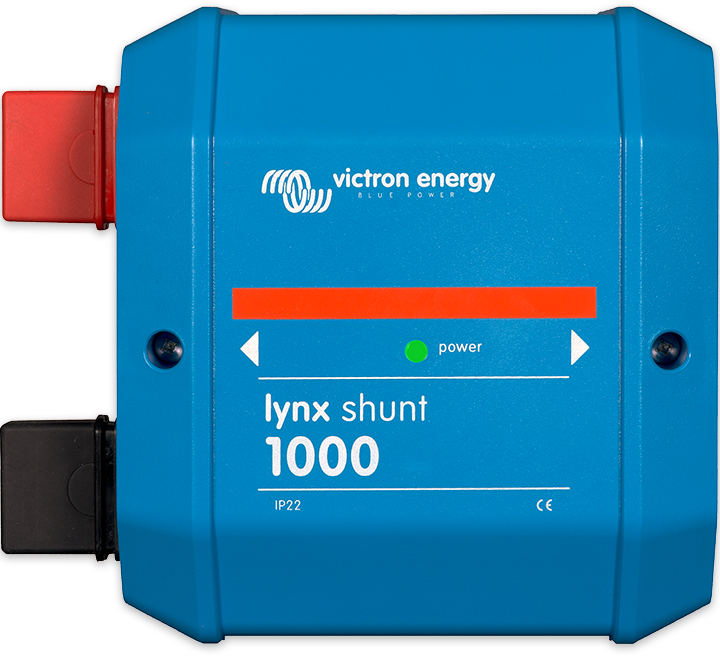

The Lynx Shunt VE.Can is an intelligent 1000A shunt with location for a fuse (not included), the built-in battery monitor accurately monitors the state of charge of your battery. Use a GX device (e.g. Cerbo GX) for reading out the information. Part of the modular Lynx distribution system.
With the Lynx Shunt VE.You can rest assured that you'll always have accurate information about your battery's state. This shunt is perfect for those who demand the best in precision and performance and will surely exceed your expectations. So why wait? Order your Victron Energy Lynx Shunt VE.Can today and discover what you've been missing!
| Lynx Shunt VE.Can | |
| Supply voltage range | 9 - 70 Vdc |
| Supported system voltages | 12, 24 or 48V |
| Reverse polarity protection | No |
| Current rating | 1000Adc continuous |
| Power consumption | 60mA @ 12V 33mA @ 24V 20mA @ 48V |
| Potential free alarm contact | 3A, 30Vdc, 250Vac |
| Temperature measurement range | -40°C to +60° |
| Dimensions (h x w x d) | 190 x 180 x 80 mm |
| Unit weight | 1.4 kg |
