Victron MEGA Fuse Holder Description:
Upgrade your electrical system with the Victron Energy Fuse Holder for MEGA & MIDI Fuses, designed to ensure optimal safety and efficiency in your power setup. Available in two options – Fuse Holder for MIDI-fuse and Fuse Holder for MEGA-fuse. Victron engineered these holders to deliver reliable protection for your electrical circuits.
Key Benefits:
- Suits up to 6 MEGA Fuses
-
Robust Protection: The Victron Fuse Holder offers robust protection for your electrical circuits, safeguarding against overcurrent situations that could potentially damage your equipment or pose safety risks.
-
Easy Installation: Designed for convenience, these fuse holders feature a user-friendly design that allows for easy installation in your electrical system. Simply mount the holder securely and insert the appropriate fuse for immediate protection.
-
Compatibility: Whether you require a holder for MIDI-fuses or MEGA-fuses, Victron Energy has you covered. Choose the option that best fits your specific needs, ensuring compatibility with your existing electrical setup.
-
Durable Construction: These fuse holders are constructed from high-quality materials and built to withstand the rigours of daily use. As a result, their durable design ensures longevity and reliable performance, providing peace of mind for your electrical system.

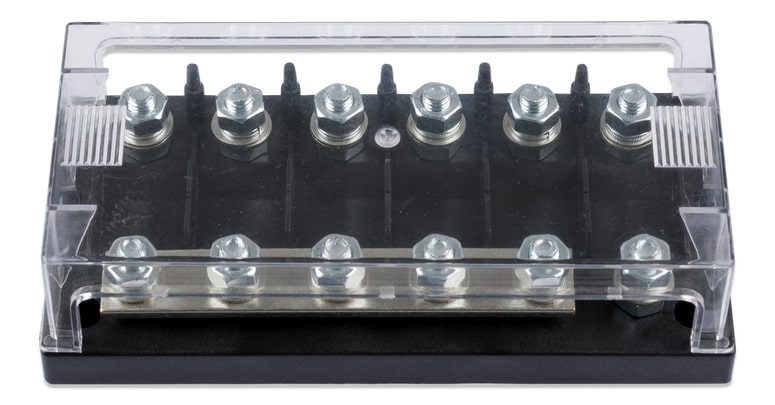

| Fuse holder 6-way for MEGA fuse |
Specification |
| Max. current |
250 A |
| Max. Voltage |
70 VDC |
| Terminal diameter |
5/16 inch / 8 mm |
| Terminal height |
0.67 inch / 14 mm |
| Terminal material |
Galvanised steel |
| Hex nut material |
Galvanised steel |
| Recommended torque |
60 lbf·inch / 7 N·m |
| Busbar strip material |
Tin-plated copper (3 x 18 mm) |
| Base material |
ABS, black, UL 94 V-0 |
| Cover material |
Clear Polycarbonate, UL 94 HB |
| Weight |
1 lb / 0,45 kg |
| Dimensions (hxwxd) (with cover) |
2.0 x 7.2 x 3.5 inch / 50.9 x 181.5 x 88 mm |
