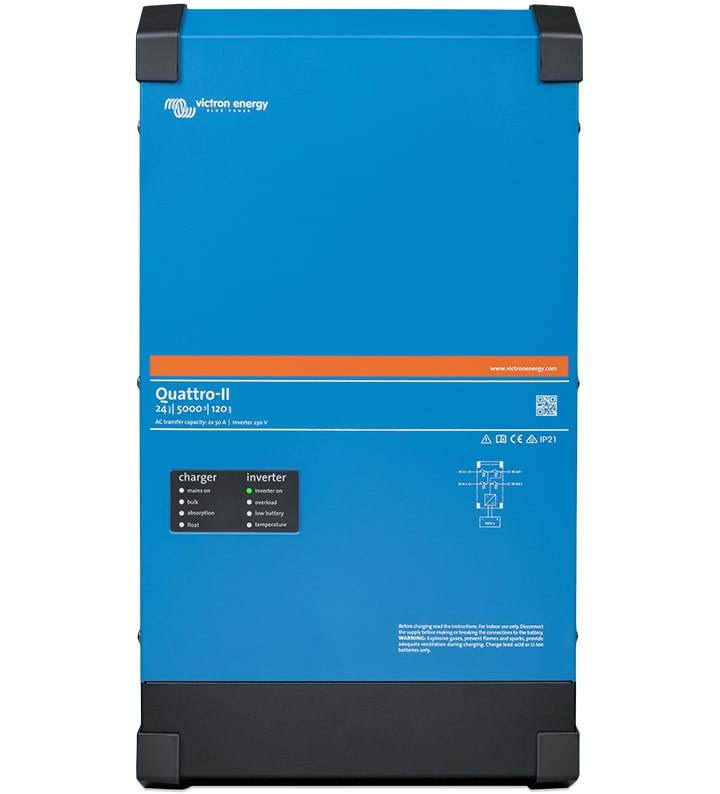

Victron Quattro-II Inverter Charger

$3,783.00 CAD
$3,783.00 CAD
Sold Out
Shipping calculated at checkout.
American Express Mastercard Shop Pay Visa
Secure payments

Secure payments

100% Guarantee

100% Guarantee

Client satisfaction

Client satisfaction

Similar to the MultiPlus-II, the Quattro-II is also a combined inverter and charger. Additionally it can accept two AC inputs and automatically connect to the active source. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology plus multiple system integration features such as three or split phase operation and parallel operation.

Have a question?

Talk with a technical expert.

Call Us
  • Description
  • Features

Victron Quattro-II Inverter Charger Description

Similar to the MultiPlus-II, the Quattro-II is also a combined inverter and charger. Additionally it can accept two AC inputs and automatically connect to the active source. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology plus multiple system integration features such as three or split phase operation and parallel operation.

Two AC Inputs & two AC Outputs

The Quattro can be connected to two independent AC sources, for example shore-side power and a generator, or two generators. The Quattro will automatically connect to the active source. The main output has no-break functionality. In the event of a grid failure, or shore or generator power being disconnected, the Quattro takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on one of the inputs of the Quattro. Loads that should not discharge the battery, such as air-conditioning or a water heater can be connected to this output.

Unique PowerAssist feature

The Quattro will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.

Virtually unlimited power thanks to parallel operation

Up to 6 Quattros can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible. Please check our datasheets to see which models have paralleling, three phase and split phase capabilities.

Parameter Quattro-II 24/5000/120-50 Quattro-II 48/5000/70-50
PowerControl & PowerAssist Yes Yes
Transfer switch 50 A 50 A
Maximum AC input current 50 A 50 A
INVERTER
DC Input voltage range 19–33 V 38-66 V
Output Output voltage: 230 VAC ± 2 %
Frequency: 50 Hz ± 0,1 % (1)		 Output voltage: 230 VAC ± 2 %
Frequency: 50 Hz ± 0,1 % (1)
Cont. output power at 25 °C 5000 VA 5000 VA
Cont. output power at 25 °C 4000 W 4000 W
Cont. output power at 40 °C 3700 W 3700 W
Cont. output power at 65 °C 3000 W 3000 W
Maximum apparent feed-in power 5000 VA 5000 VA
Peak power 9000 W 9000 W
Maximum efficiency 96 % 96 %
Zero load power 18 W 18 W
Zero load power in AES mode 12 W 12 W
Zero load power in Search mode 2 W 2 W
CHARGER
AC Input Input voltage range: 187-265 VAC
Input frequency: 45 – 65 Hz
Power factor: 1		 Input voltage range: 187-265 VAC
Input frequency: 45 – 65 Hz
Power factor: 1
Charge voltage 'absorption' 28.8 V / 57.6 V 28.8 V / 57.6 V
Charge voltage 'float' 27.6 V / 55.2 V 27.6 V / 55.2 V
Storage mode 26.4 V / 52.8 V 26.4 V / 52.8 V
Max. battery charge current 120 A 70 A
Battery temperature sensor Yes Yes
GENERAL
Auxiliary output Yes (32 A)
Default setting: switches off when in inverter mode		 Yes (32 A)
Default setting: switches off when in inverter mode
Programmable relay Yes Yes
Protection a – g a – g
VE.Bus communication port For parallel and three phase operation,
remote monitoring and system integration		 For parallel and three phase operation,
remote monitoring and system integration
General purpose com. port Yes, 2x Yes, 2x
Remote on-off Yes Yes
Operating temperature range -40 to +65 °C -40 to +65 °C
Humidity (non-condensing) max 95 % max 95 %
ENCLOSURE
Material & Colour Steel, blue RAL 5012 Steel, blue RAL 5012
Protection category IP21 IP21
Battery-connection M8 bolts M8 bolts
230 VAC-connection Screw terminals 13 mm² (6 AWG) Screw terminals 13 mm² (6 AWG)
Weight 31 kg 29 kg
Dimensions (h x w x d) 607 x 329 x 149 mm (23.9 x 13 x 5.9 inches) 565 x 320 x 148 mm (22.2 x 12.6 x 5.8 inches)

A Quattro, plus ESS (Energy Storage System) functionality
The Quattro-II can be connected to two independent AC sources, for example the public grid and a generator, or two generators. The Quattro-II will automatically connect to the active source.


PowerControl and PowerAssist - Boosting the capacity of the grid or a generator
A maximum grid or generator current can be set. The Quattro-II will then take account of other AC loads and use whatever is extra for battery charging, thus preventing the generator or grid from being overloaded (PowerControl function).
PowerAssist takes the principle of PowerControl to a further dimension. Where peak power is so often required only for a limited period, the Quattro-II will compensate insufficient generator, shore or grid power with power from the battery.
When the load reduces, the spare power is used to recharge the battery.


Solar energy: AC power available even during a grid failure
The Quattro-II can be used in off grid as well as grid connected PV and other alternative energy systems. It is compatible
with both solar charger controllers and grid-tie inverters.
Two AC Outputs
The main output has no break functionality. The Quattro-II takes over the supply to the connected loads in the event of a grid failure or when shore/generator power is disconnected. This happens so fast (less than 20 milliseconds) that
computers and other electronic equipment will continue to operate without disruption.
The second output is live only when AC is available on the input. Loads that should not discharge the battery, like a water heater for example, can be connected to this output.


Parallel and three phase operation
Up to 6 Quatros can operate in parallel to achieve higher power output. Six 48/5000/70 units, for example, will provide 25 kW / 30 kVA output power with 420 Amps charging capacity.
In addition to parallel connection, three units of the same model can be configured for three phase output, and up to 6 sets of three units can be parallel connected per phase for a 75 kW / 90 kVA inverter and more than 1200 Amps charging
capacity.


On-site system configuring, monitoring and control
Settings can be changed in a matter of minutes with VEConfigure software (computer or laptop and MK3-USB interface
needed).
Several monitoring and control options are available: Cerbo GX, Color Control GX, Venus GX, Octo GX, CANvu GX, laptop,
computer, Bluetooth (with the optional VE.Bus Smart dongle), Battery Monitor, Digital Multi Control Panel.


Remote configuring and monitoring
Install a Cerbo GX or other GX product to connect to the internet.
Operational data can be stored and displayed on our VRM (Victron Remote Management) website, free of charge.
When connected to the internet, systems can be accessed remotely, and settings can be changed.
