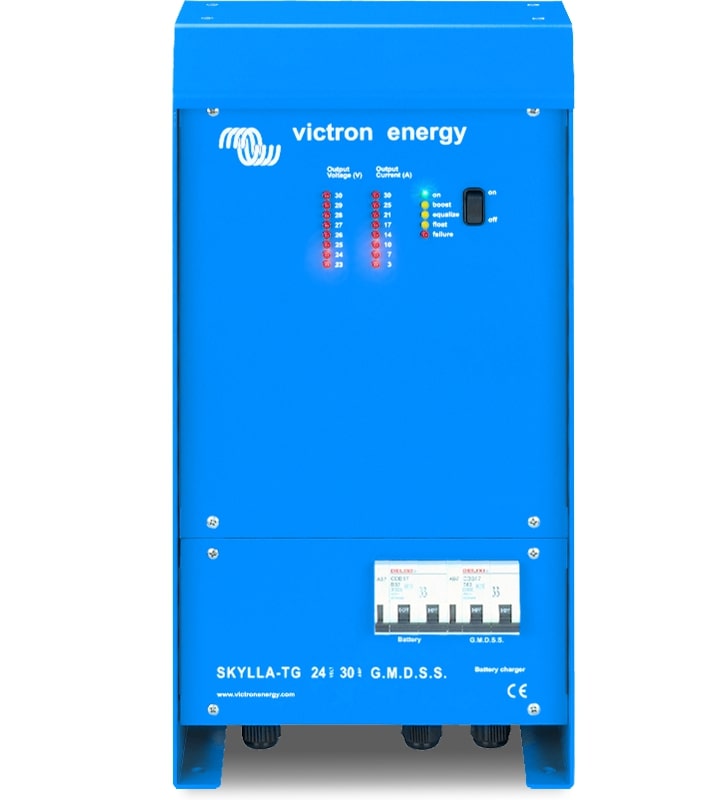

The Victron Skylla-TG 24/30 and 24/50 GMDSS Chargers have been designed to provide all required monitoring and alarm data. Both the battery and the GMDSS system are connected directly to the charger. Data and alarms are displayed on a digital panel (VE.Net GMDSS panel, to be ordered separately). A standard eight wire UTP cable connects the charger to the panel.
GMDSS
The Global Maritime Distress & Safety System (GMDSS) was developed by the International Maritime Organisation (IMO) to improve maritime distress and safety communications.
Power supply
The Skylla TG has proven itself to be an excellent battery charger and power supply for GMDSS applications. However, when using a standard Skylla Charger, additional equipment is needed to perform the monitoring and alarm functions required for GMDSS.
Installation made easy: the Skylla GMDSS
The Victron Skylla GMDSS Charger has been designed to provide all required monitoring and alarm data. Both the battery and the GMDSS system are connected directly to the charger. Data and alarms are displayed on a digital panel (VE.Net GMDSS panel, to be ordered separately). A standard eight wire UTP-cable connects the charger to the panel.
No adjustments needed
The whole system is ‘click and go’: the panels are pre-programmed for GMDSS functionality. A simple, intuitive menu allows changing of settings if required.
Battery time to go
The Skylla GMDSS charger has a built-in battery controller. The capacity of the battery is fully monitored so the panel can even indicate the ’time to go’ in case of a power supply black out.
Perfect charger for any type of battery
Charge voltage can be precisely adjusted to suit any VRLA or flooded battery system.
| Parameter | 24/30 GMDSS | 24/50 GMDSS |
|---|---|---|
| INPUT | ||
| Input voltage (V AC) | 120 / 230 | |
| Input voltage range (V AC) | 90 - 265 | |
| Frequency (Hz) | 45-65 | |
| Power factor | 1 | |
| CHARGER | ||
| Charge voltage 'absorption' (V DC) | 28.5 | |
| Charge voltage 'float' (V DC) | 26.5 | |
| Charge current (A) | 30 (limited to 22 A at 110 V AC) | 50 |
| Charge characteristic | IUoUo (three-step) | |
| Temperature sensor | ✔ | |
| Can be used as power supply | ✔ | |
| Forced cooling | ✔ | |
| GENERAL | ||
| Protection | a, b, c, d | |
| Operating temperature range | -40 to +50°C (-40 - 122°F) | |
| Humidity (non-condensing) | max 95% | |
| ENCLOSURE | ||
| Material & Colour | Aluminium (blue RAL 5012) | |
| Battery connection | Two 1.5 m cables | |
| GMDSS connection | One 1.5 m cable (+ to be taken directly from the battery) | |
| 230 V AC connection | Three-wire 2.5 mm² (AWG 6) cable, Length: 2 m | |
| Protection category | IP21 | |
| Weight (kg/lbs) | 6 kg (13 lbs) | |
| Dimensions (hxwxd) | 485x250x147 mm (19.1x9.9x5.8 inches) | |
