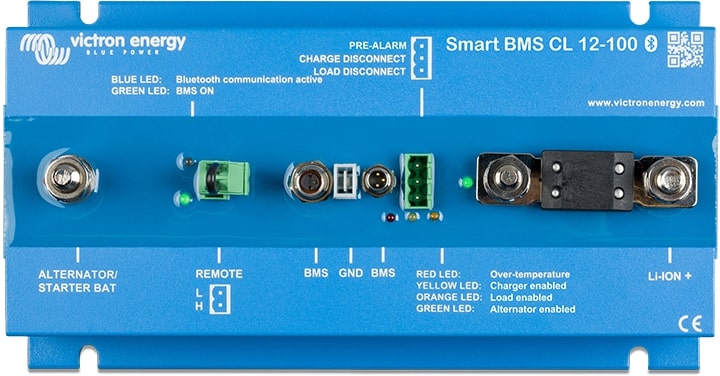

The Smart BMS CL 12/100 is a Battery Management system for Victron lithium-iron-phosphate (LiFePO4) Smart Batteries. It has been specifically designed for 12V systems with a 12V alternator.
The BMS CL 12/100 monitors and protects each individual battery cell within the battery (or battery bank) and will disconnect the alternator, charge sources or DC loads in case of low battery voltage, high battery voltage or over temperature.
The dedicated alternator input provides current limiting and one-way traffic from the alternator into the battery, this so any size alternator (and start battery) can be safely connected to the Smart Lithium battery or batteries.
The BMS is also equipped with a remote on/off connector, to turn the BMS (and the system) off via a remote switch, and a pre-alarm contact, to give a warning signal before the BMS will disconnect the batteries from the system.
| Parameter | Value |
|---|---|
| Alternator port - max charge current | 100 A (with 125 A fuse) |
| Input voltage to start charging | > 13 V |
| Current consumption, remote on | 16 mA (excluding Load output and Charge output current) |
| Current consumption, remote off | 5mA (BMS functionality still active) |
| Load disconnect output | Normally high (Vbat – 0.1 V) Source current limit: 10 mA (short circuit protected) Sink current: 0 A (output free floating) |
| Charge disconnect output | Normally high (Vbat – 0.1 V) Source current limit: 10 mA (short circuit protected) Sink current: 0 A (output free floating) |
| Pre-alarm output | Normally free floating High (Vbat) in case of alarm, max. 1 A (not short circuit proof) |
|
Remote on/off Remote L and Remote H |
Use modes of the system on/off: 1. ON when the L and H terminal are interconnected 2. ON when the L terminal is pulled to battery minus (V< 5 V) 3. ON when the H terminal is high (V>3 V) 4. OFF in all other conditions |
| Operating temperature range | -40 °C to +60 °C |
| Humidity | 100 % / 95 % |
| Protection grade | IP65 |
| DC power connection | M8 (mounting torque: 10 Nm) |
| Weight | 1,6 kg |
| Dimensions (h x w x d) | 65 x 120 x 224 mm |
